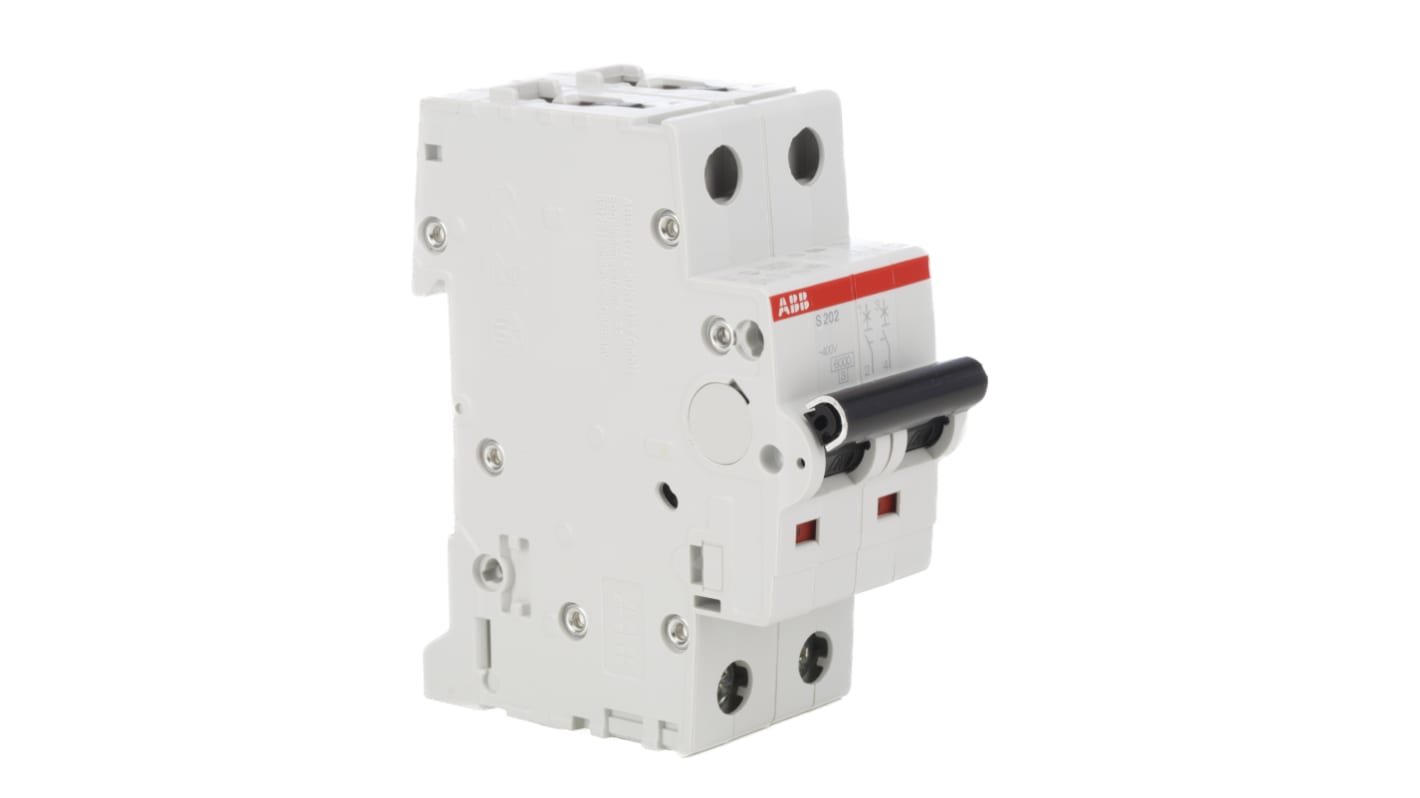

ABB System Pro M Compact S200 MCB, 2P, 10A Curve C, 400V AC, 6 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£42.23

(exc. VAT)

£50.68

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 154 unit(s) ready to ship from another location
  • Plus 109 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£42.23

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
746-7719
Mfr. Part No.:
2CDS252001R0104 S202-C10
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

2

Current Rating

10A

Tripping Characteristics

Type C

Rated AC Voltage

400V

Breaking Capacity at Maximum Voltage Rating

6 kA

Range

System Pro M Compact

Series

S200

Circuit Breaker Type

MCB

Width

35mm

Length

88mm

Mounting Style

DIN Rail Mount

Depth

69mm

Model Number

S202-C10

Better World Product

Yes

Better World Claim

Designed for disassembly

Tripping Mechanism

Thermal

Terminal Contact Type

Screw

COO (Country of Origin):
DE

ABB 2-Pole MCB, 400V AC Voltage Rating, 10A Current Rating - S200 Series - 2CDS252001R0104 S202-C10


Install this MCB from ABB to protect your electric circuits when faults occur. It uses thermal and electro-mechanical tripping mechanisms to automatically disconnect the power in the event of overloads or short circuits. These timely interventions prevent production downtime and save on maintenance and repairs. You can use this bottom-fitting auxiliary for S200 mounting and conserve up to 50% space. The green and red contact position indicators show you at a glance when the device is operational.

Features & Benefits


• IP20 indicates the housing is touch-proof to prevent electric shocks
• Screw terminals firmly secure contacts for uninterrupted signal transfers
• Fire-safe product won't act as a fuel source and spread fires

Applications


• Shopping centres
• Schools
• Industrial warehouses
• Automotive applications
• Automated assembly and packaging lines

What tripping characteristic does this MCB have?


The MCB has a type-C tripping curve, meaning it instantly disconnects the power supply when it experiences 5 to 10 times its 10A rated current. This means you can confidently use it with high-inductive load operations such as motors and lighting systems.

What's the difference between a residual current breaker and a miniature circuit breaker?


A residual current device protects against dangerous voltage spikes leading to safety issues, while MCBs primarily safeguard wires and equipment.


ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
