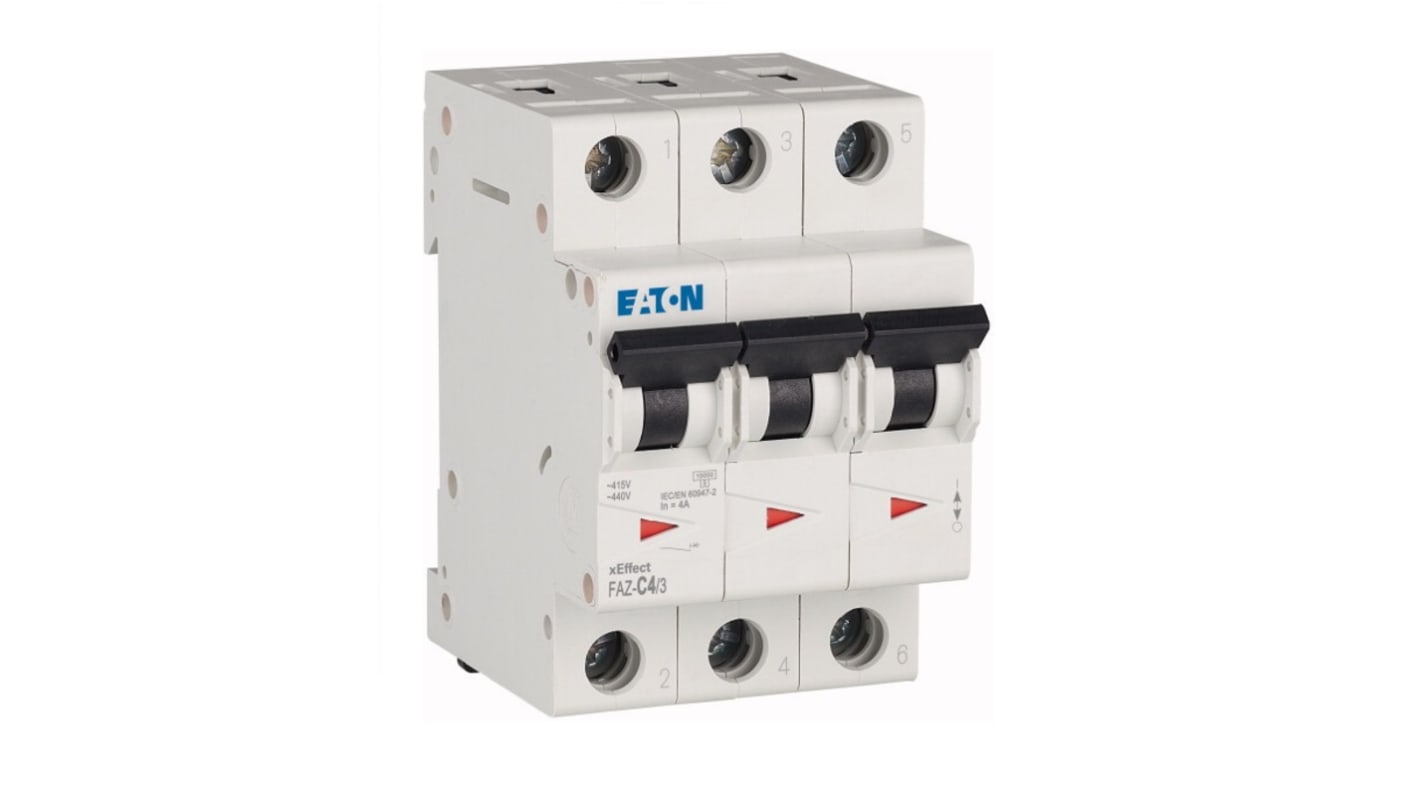

Eaton xEffect MCB, 3P, 4A Curve C, 400V AC, 60V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 624-0383
- Mfr. Part No.:
- 278865 FAZ-C4/3
- Brand:
- Eaton
Subtotal (1 unit)*
£108.32
(exc. VAT)
£129.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 6 unit(s) shipping from 27 October 2025
- Plus 4 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £108.32 |
*price indicative
- RS Stock No.:
- 624-0383
- Mfr. Part No.:
- 278865 FAZ-C4/3
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 3 | |
| Current Rating | 4A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 400V | |
| Rated DC Voltage | 60V | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Range | xEffect | |
| Circuit Breaker Type | MCB | |
| Width | 52.5mm | |
| Length | 80mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 74mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Current Rating 4A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400V | ||
Rated DC Voltage 60V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Width 52.5mm | ||
Length 80mm | ||
Mounting Style DIN Rail Mount | ||
Depth 74mm | ||
- COO (Country of Origin):
- RO
Eaton MCB, 3 Poles, C Curve - xEffect Series - 278865 FAZ-C4/3
Choose this MCB from Eaton to protect resistive and inductive loads with low inrush current against harmful short circuits and overload. It's a C curve breaker that instantly trips at 5 to 10 times its 4A rated current, which means it can handle substantial power surges. For convenience, the unit has twin-purpose terminals, so you can wire it from the top or bottom. A slim mounting width per pole of 17.7mm lets you achieve maximum packing efficiency on your control circuit. This MCB is a reliable choice for protecting industrial and commercial switchgear used in motors and lighting applications.
Features & Benefits
• 3-position DIN-rail clip to simplify removal from the busbar system
• IP20-rated enclosure that's protected against touch and objects larger than 12mm
• Suitable for use in a wide operating temperature range between -40°C and +75°C
• Meets IEC/EN 60898-1 safety standards for circuit breakers that provide overcurrent protection to household and similar installations
• IP20-rated enclosure that's protected against touch and objects larger than 12mm
• Suitable for use in a wide operating temperature range between -40°C and +75°C
• Meets IEC/EN 60898-1 safety standards for circuit breakers that provide overcurrent protection to household and similar installations
Does this MCB provide protection to people?
Yes, this MCB helps to improve safety by reducing the likelihood of current surges causing electric shocks.
Note
Eaton formerly known as Moeller
Standards
IEC/EN60947-2
