- RS Stock No.:
- 535-4144
- Mfr. Part No.:
- 2CDS271001R0104 S201M-C10
- Brand:
- ABB
Available to back order for despatch 17/05/2024
Added
Price Each
£17.21
(exc. VAT)
£20.65
(inc. VAT)
Units | Per unit |
1 - 4 | £17.21 |
5 - 9 | £16.36 |
10 - 24 | £15.49 |
25 - 49 | £14.62 |
50 + | £13.76 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
Schneider Electric Acti 9 iC60H MCB, 1P, 10A Curve C, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity
- RS Stock No.
- 791-3293
Price Each
£22.25
(exc. VAT)
£26.70
(inc. VAT)
- RS Stock No.:
- 535-4144
- Mfr. Part No.:
- 2CDS271001R0104 S201M-C10
- Brand:
- ABB
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

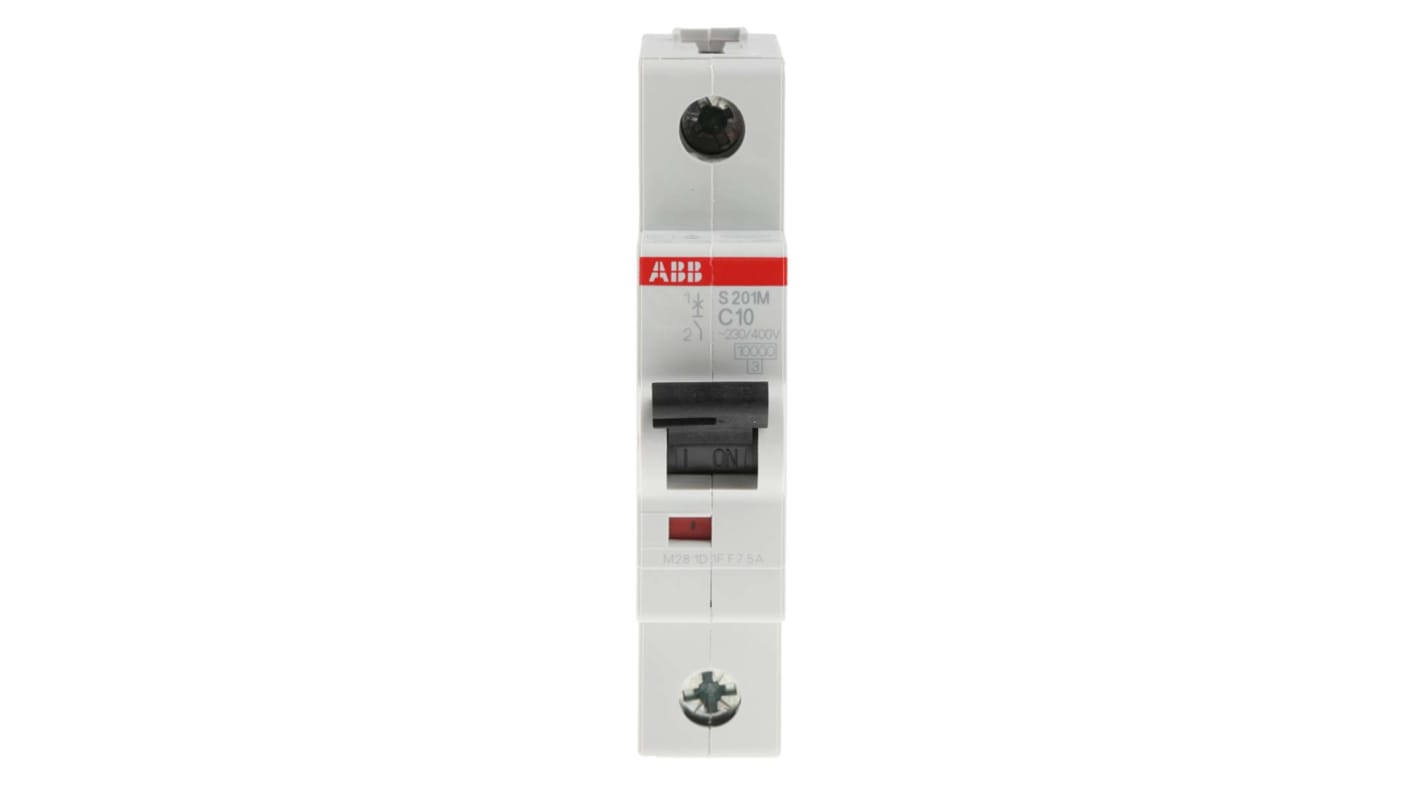

ABB MCB, 10A Current Rating, 253V AC / 72V DC Voltage Rating - S200M Series - 2CDS271001R0104
Use this MCB from ABB as a safety tool to prevent damage to your electrical components from short circuits and overcurrents. As it's made of durable thermoplastic, the unit offers impact resistance and serves as an insulator, so it withstands tough conditions and prevents electric shocks. Type-C tripping characteristics mean it trips at 5 to 10 times its rated current, making it suitable for components prone to high current surges. With a current rating of 10A, it's a practical choice for small electric motors and fluorescent lighting.
Features & Benefits
• Narrow width of 17.5mm to fit into tight spots
• Red and green indicators to quickly identify contact position
• IP50 rating to withstand tools and objects larger than 1mm in size
• Broad operating temperature range of -25°C to +55°C for use in challenging settings
• Simple DIN mounting for tool-free installation
• Red and green indicators to quickly identify contact position
• IP50 rating to withstand tools and objects larger than 1mm in size
• Broad operating temperature range of -25°C to +55°C for use in challenging settings
• Simple DIN mounting for tool-free installation
Applications
• Industrial conveyors
• Transportation industry
• Transportation industry
Can I use this MCB for DC voltages?
Yes, this versatile MCB offers protection in both AC and DC circuits, making it useful in various heavy-duty applications.
Standards
BS EN 60898
ABB System Pro M Single & Double Pole MCB's
Note
The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
Specifications
Attribute | Value |
---|---|
Number of Poles | 1P |
Current Rating | 10A |
Tripping Characteristics | Type C |
Rated AC Voltage | 253V |
Rated DC Voltage | 72V |
Breaking Capacity at Maximum Voltage Rating | 10 kA |
Range | System Pro M Compact |
Series | S200M |
Circuit Breaker Type | MCB |
Width | 17.5mm |
Length | 88mm |
Mounting Style | DIN Rail Mount |
Depth | 69mm |
Model Number | S201M-C10 |
Tripping Mechanism | Thermal |
Terminal Contact Type | Screw |
