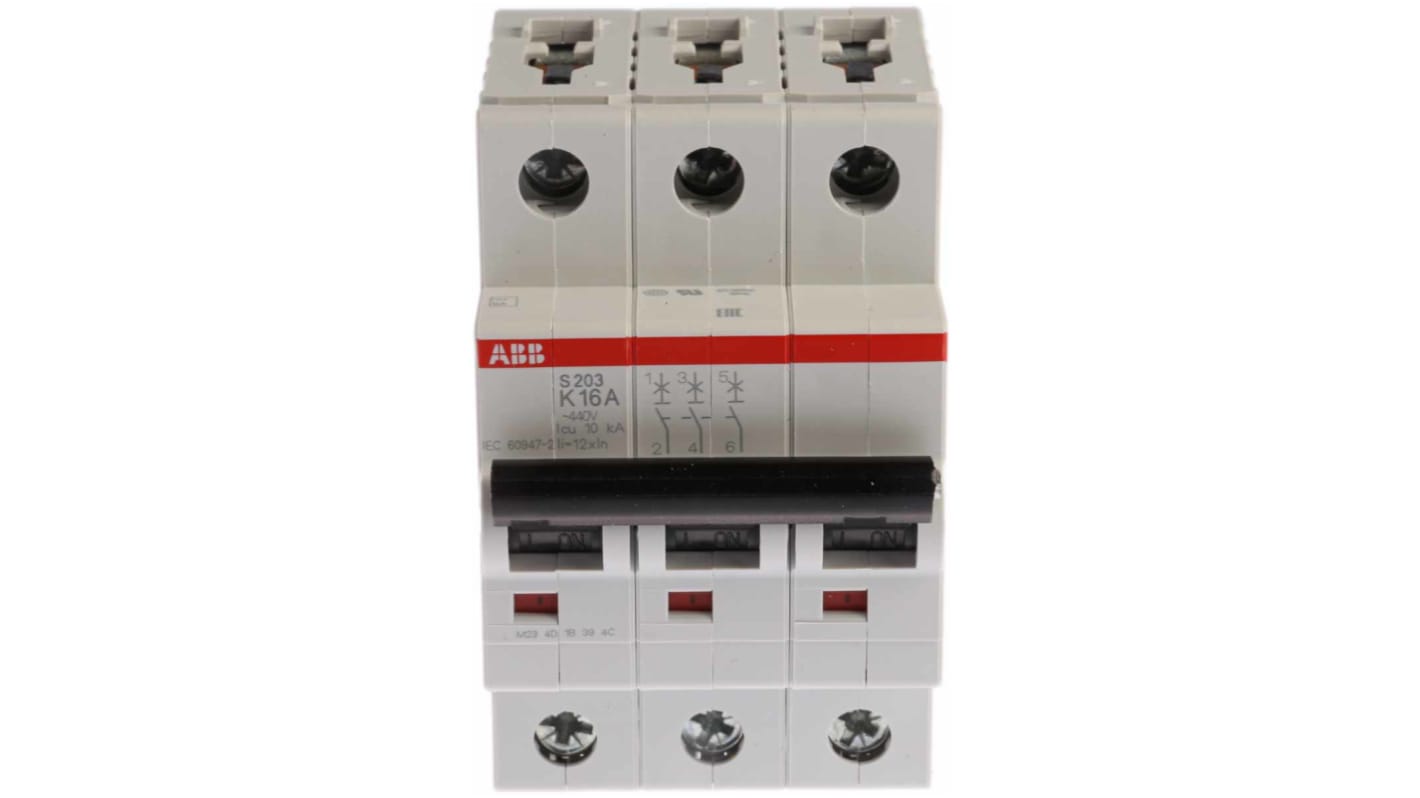

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3-Pole, 16A, Type K, 440V ac AC, 20 kA Breaking Capacity
- RS Stock No.:
- 514-0226
- Mfr. Part No.:
- 2CDS253001R0467 S203-K16
- Brand:
- ABB
Subtotal (1 unit)*
£89.30
(exc. VAT)
£107.16
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £89.30 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 514-0226
- Mfr. Part No.:
- 2CDS253001R0467 S203-K16
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 16A | |
| Tripping Characteristics | Type K | |
| Rated AC Voltage | 440V ac | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 20kA | |
| Range | System Pro M Compact | |
| Series | S200 | |
| Terminal Type | Bidirectional Cylinder Lift Terminal | |
| IP Rating | IP20, IP40 | |
| Height | 85mm | |
| Standards/Approvals | UL 1077, CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2 | |
| Depth | 69mm | |
| Width | 52.5mm | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 16A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 440V ac | ||
Mount Type DIN Rail | ||
Breaking Capacity 20kA | ||
Range System Pro M Compact | ||
Series S200 | ||
Terminal Type Bidirectional Cylinder Lift Terminal | ||
IP Rating IP20, IP40 | ||
Height 85mm | ||
Standards/Approvals UL 1077, CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2 | ||
Depth 69mm | ||
Width 52.5mm | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
Reset Actuator Type Toggle Switch | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
ABB S200 Series MCB, 3 Poles, 16A Current Rating - 2CDS253001R0467 S203-K16
This miniature circuit breaker (MCB) provides effective protection for branch circuits in various electrical applications. Its robust design ensures reliable operation, making it suitable for automation, electronics, and electrical industries. The 3-pole configuration allows for efficient control of three-phase systems, delivering critical safety features in an intuitive layout.
Features & Benefits
• Type K MCB offers enhanced protection against overloads and short circuits
• Rated current of 16A is suitable for standard applications
• Breaking capacity of 6kA allows for high fault tolerance
• Designed for easy disassembly, promoting maintenance and recycling
• Compatible with DIN rail mount installations for straightforward integration
• Operates at a rated AC voltage of 440V for efficient performance
Applications
• Suitable for residential and commercial electrical installations
• Utilised in industrial control panels for machine protection
• Ideal for automation systems to safeguard equipment
• Employed within distribution boards for circuit protection
• Suitable for enhancing existing electrical systems with improved safety
What is the maximum voltage rating for safe operation?
It operates at a maximum rated voltage of 440V.
How can I ensure proper installation for optimal functionality?
Following DIN rail mounting guidelines ensures secure placement and performance.
Can it be used in outdoor applications?
This product is intended for indoor use; outdoor conditions may impact reliability.
What is the expected lifespan under normal operating conditions?
It is designed for a mechanical lifespan of up to 20,000 operations.
Is it compatible with other ABB products?
Yes, it integrates seamlessly with other devices in ABB’s electrical range.
Standards
BS EN 60898
