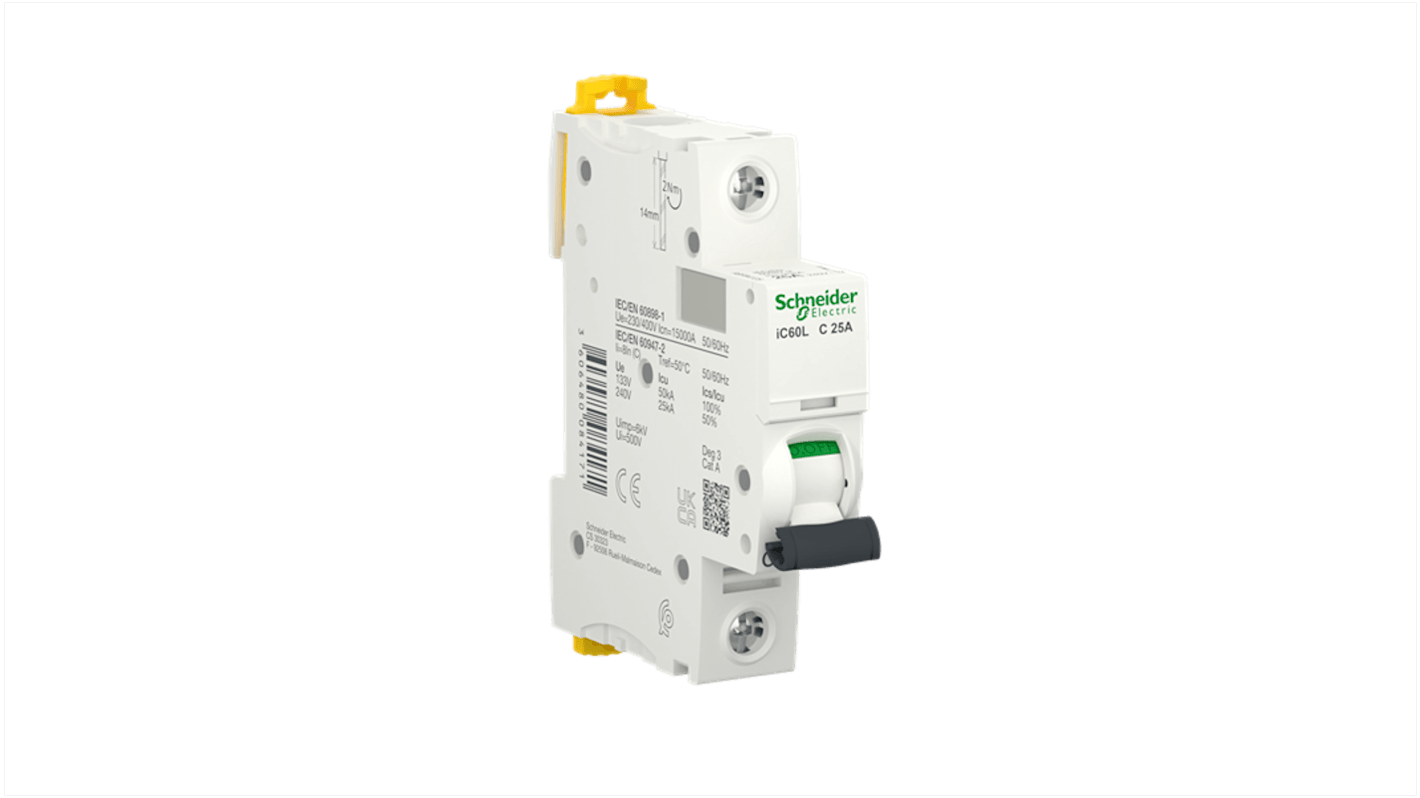

Schneider Electric Acti9 A9F Miniature Circuit Breaker, 1-Pole, 25 A, Type C, 230 V ac AC, 72 V DC, 25 kA Breaking
- RS Stock No.:
- 288-7094
- Mfr. Part No.:
- A9F94125
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£96.39
(exc. VAT)
£115.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £96.39 |
*price indicative
- RS Stock No.:
- 288-7094
- Mfr. Part No.:
- A9F94125
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 25 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 230 V ac | |
| Rated DC Voltage | 72 V | |
| Breaking Capacity | 25kA | |
| Mount Type | Fixed | |
| Range | Acti9 | |
| Series | A9F | |
| Terminal Type | Single Terminal | |
| IP Rating | IP20 | |
| Width | 18 mm | |
| Depth | 78.5mm | |
| Height | 85mm | |
| Standards/Approvals | EN 60898-1 EN 60947-2 IEC 60898-1 IEC 60947-2, RoHS | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 25 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230 V ac | ||
Rated DC Voltage 72 V | ||
Breaking Capacity 25kA | ||
Mount Type Fixed | ||
Range Acti9 | ||
Series A9F | ||
Terminal Type Single Terminal | ||
IP Rating IP20 | ||
Width 18 mm | ||
Depth 78.5mm | ||
Height 85mm | ||
Standards/Approvals EN 60898-1 EN 60947-2 IEC 60898-1 IEC 60947-2, RoHS | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- FR
The Schneider Electric Miniature circuit breaker is a reliable 1P breaker suitable for distribution applications. With a rated current of 25 A and a breaking capacity of up to 25 kA, this C curve breaker offers excellent performance and protection for your electrical circuits.
Thermal Magnetic trip unit technology
Suitable for AC and DC networks
Compliant with EN and IEC standards
Compact design with DIN rail mounting for easy installation
