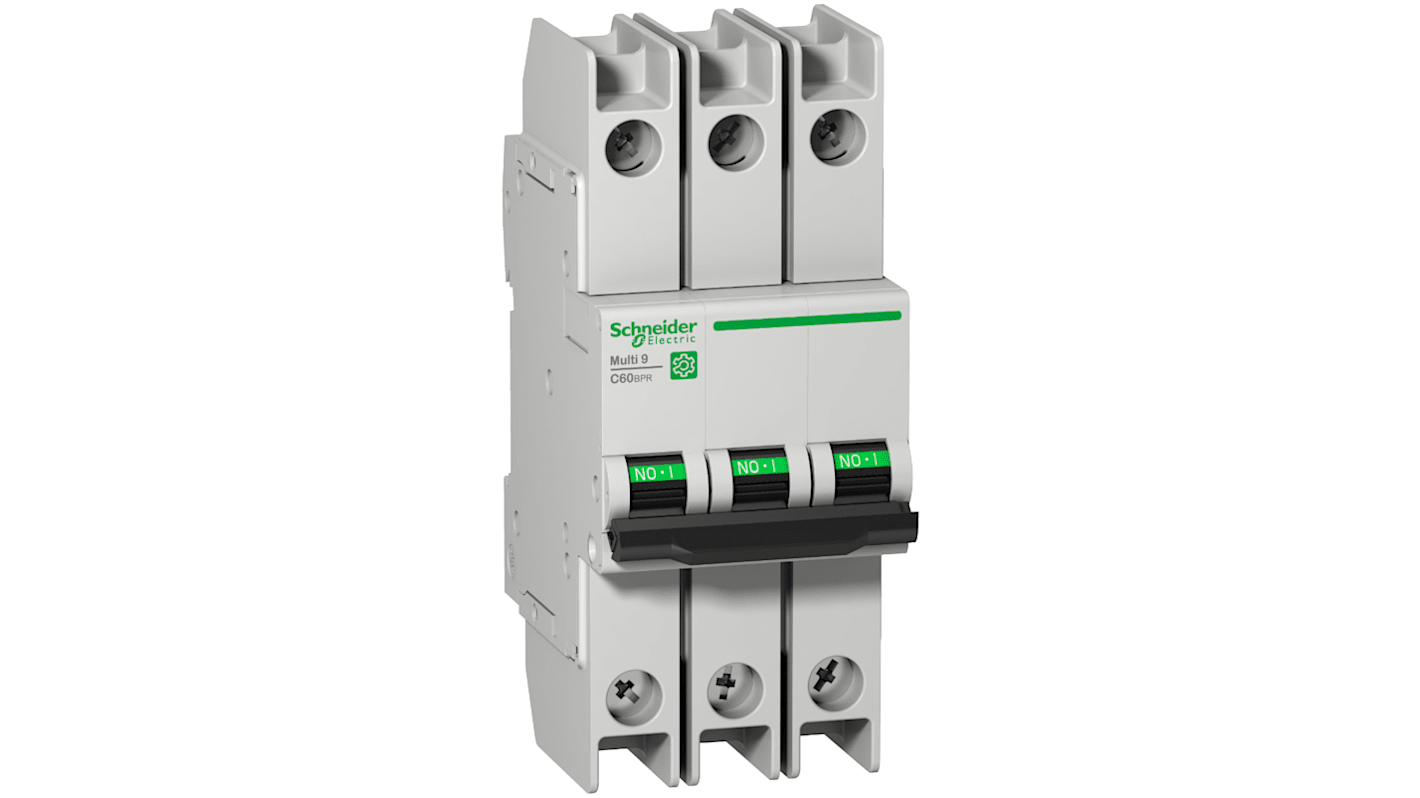

Schneider Electric Multi9 M9F Miniature Circuit Breaker, 3-Pole, 15 A, Type C, 277 V ac AC, 10 kA Breaking Capacity
- RS Stock No.:
- 256-6807
- Mfr. Part No.:
- M9F52315
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£240.82
(exc. VAT)
£288.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 34 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £240.82 |
*price indicative
- RS Stock No.:
- 256-6807
- Mfr. Part No.:
- M9F52315
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 15 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 277 V ac | |
| Breaking Capacity | 10kA | |
| Range | Multi9 | |
| Series | M9F | |
| Terminal Type | Ring | |
| IP Rating | IP40, IP20 | |
| Standards/Approvals | EN/IEC 60947-2, GB 14048.2, UL 489, CSA C22.2 No 5 | |
| Depth | 72mm | |
| Height | 127mm | |
| Width | 54 mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 15 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 277 V ac | ||
Breaking Capacity 10kA | ||
Range Multi9 | ||
Series M9F | ||
Terminal Type Ring | ||
IP Rating IP40, IP20 | ||
Standards/Approvals EN/IEC 60947-2, GB 14048.2, UL 489, CSA C22.2 No 5 | ||
Depth 72mm | ||
Height 127mm | ||
Width 54 mm | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- FR
The Schneider Electric Multi9 low voltage miniature circuit breaker with 2 protected poles. It has been designed to offer enhanced protection by preventing, protecting equipment from electrical threats. This product protects from short circuit and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders.
C tripping curve
Grey color
