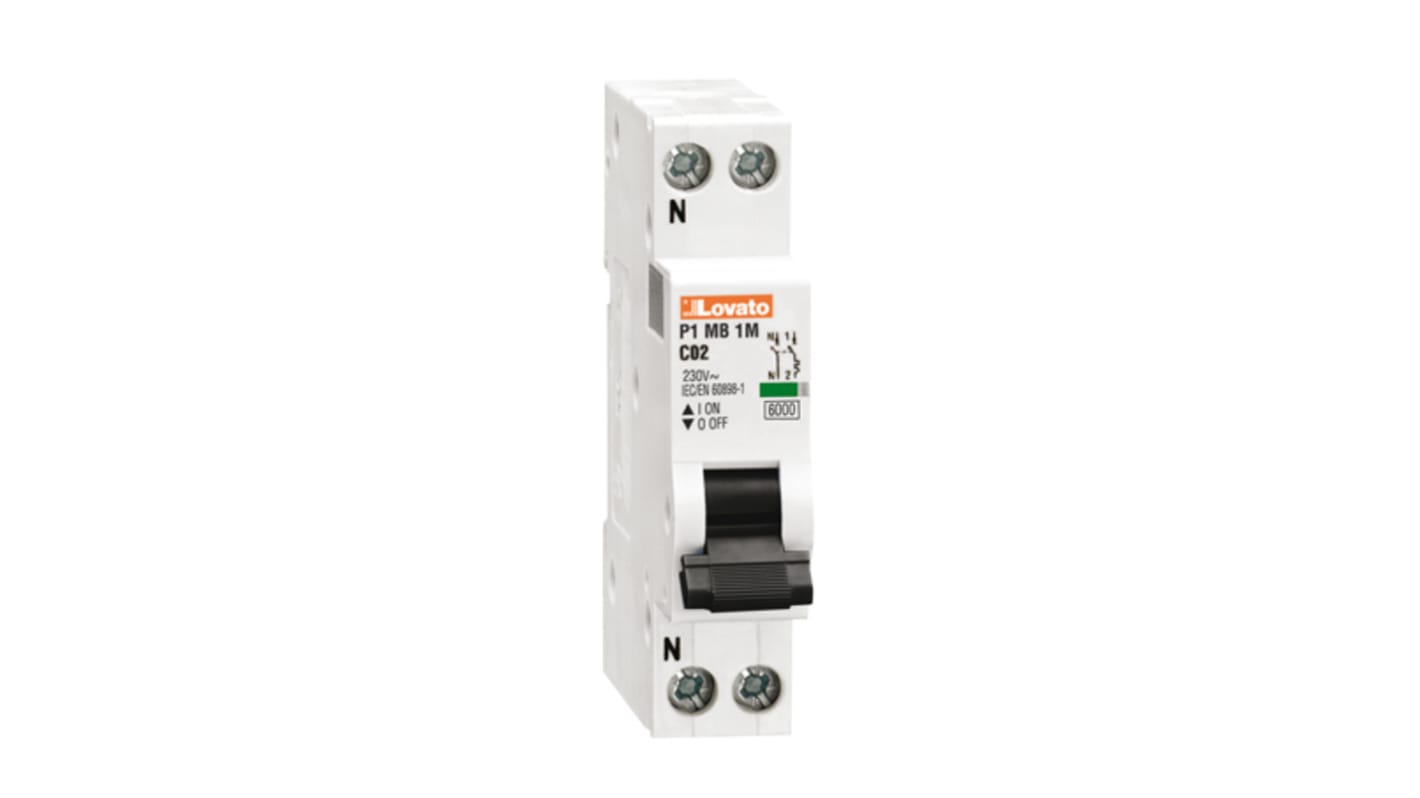

Lovato P1 P1MB Miniature Circuit Breaker, 1-Pole, 32 A, Type C, 230 V ac AC, 6 kA Breaking Capacity
- RS Stock No.:
- 248-5619
- Mfr. Part No.:
- P1MB1MC32
- Brand:
- Lovato
Subtotal (1 unit)*
£47.49
(exc. VAT)
£56.99
(inc. VAT)
Add 2 units to get free delivery
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £47.49 |
*price indicative
- RS Stock No.:
- 248-5619
- Mfr. Part No.:
- P1MB1MC32
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 32 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 230 V ac | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 6kA | |
| Range | P1 | |
| Series | P1MB | |
| IP Rating | IP20 | |
| Depth | 60mm | |
| Height | 86.5mm | |
| Width | 18 mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Select all | ||
|---|---|---|
Brand Lovato | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 32 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230 V ac | ||
Mount Type DIN Rail | ||
Breaking Capacity 6kA | ||
Range P1 | ||
Series P1MB | ||
IP Rating IP20 | ||
Depth 60mm | ||
Height 86.5mm | ||
Width 18 mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
- COO (Country of Origin):
- IT
The Lovato product is a single pole miniature circuit breaker. These devices are used to protect against short circuits and overloads of wiring installations and loads in panel boards, office buildings, stores and similar applications.
Contact status with flag indicator
Purpose is circuit protection, circuit isolation and load operation controls
Auxiliary contacts and trip releases mounted on left side
Fixing on 35mm DIN rail
