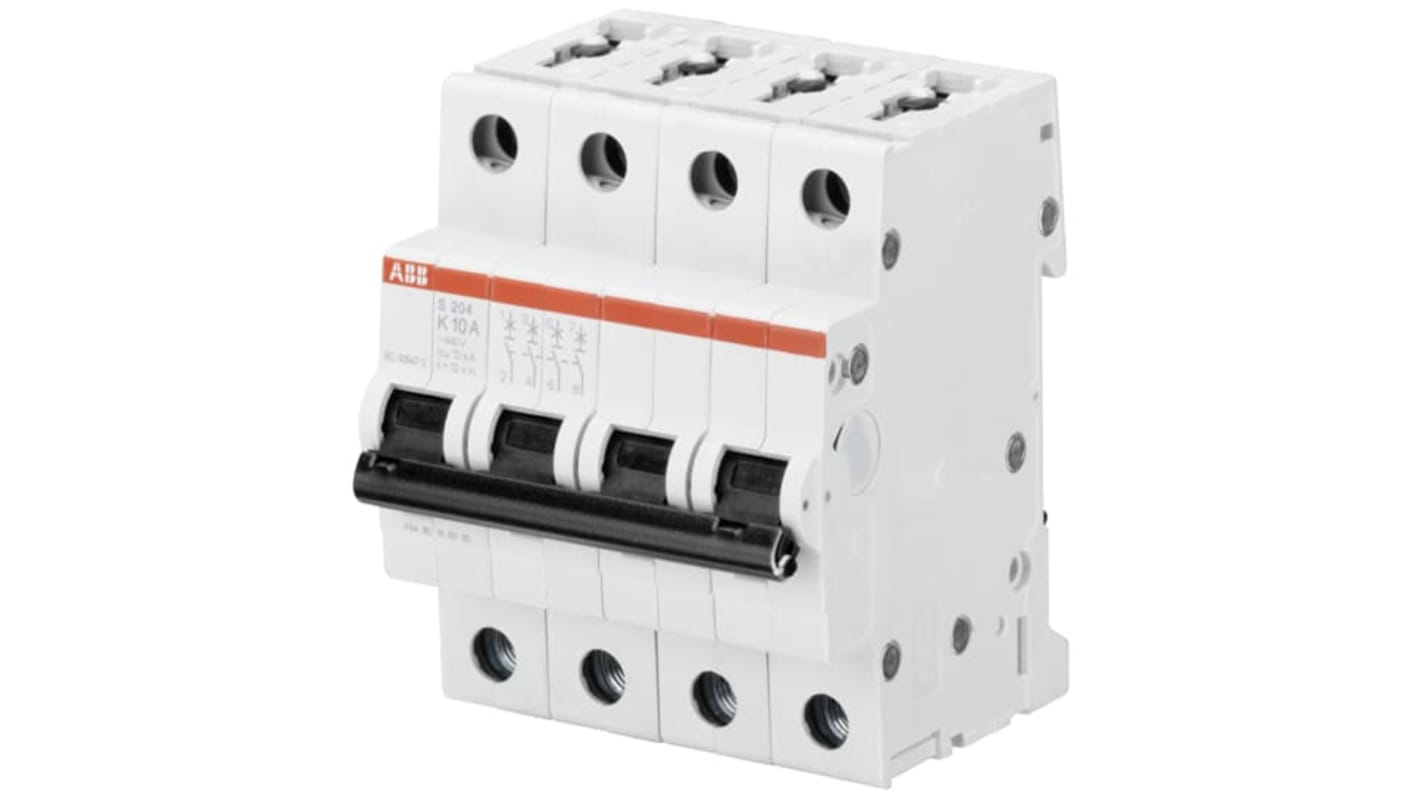

ABB System Pro M Compact S200 Miniature Circuit Breaker, 4-Pole, 6 A, Type K, 440 V ac AC, 110 V DC, 20 kA Breaking

View all MCBs

Subtotal (1 unit)*

£141.11

(exc. VAT)

£169.33

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£141.11

*price indicative

RS Stock No.:
237-3319
Mfr. Part No.:
2CDS254001R0257 S204 K 1.6A - 10 KA
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

4

Product Type

Miniature Circuit Breaker

Current Rating

6 A

Tripping Characteristics

Type K

Rated AC Voltage

440 V ac

Rated DC Voltage

110 V

Breaking Capacity

20kA

Mount Type

DIN Rail

Range

System Pro M Compact

Series

S200

Terminal Type

Screw

IP Rating

IP20

Width

70 mm

Depth

69mm

Height

88mm

Standards/Approvals

UL1077, IEC/EN 60947-2, IEC/EN 60898-1

Tripping Mechanism

Anaerobic Adhesive

COO (Country of Origin):
DE
The ABB System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electro mechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

Degree of Protection IP20

Remarks IP40 in enclosure with cover

Electrical Endurance 20000 AC cycle
