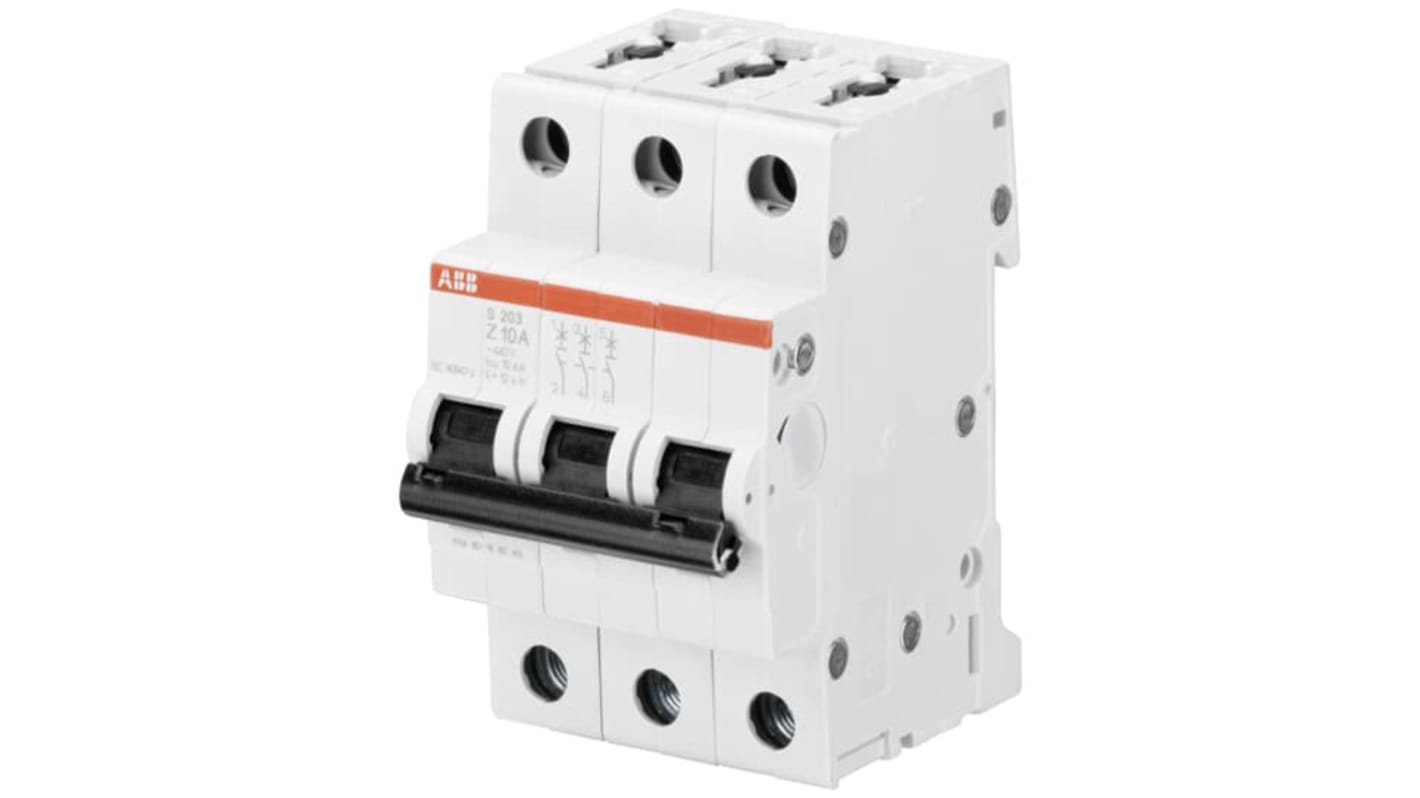

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3-Pole, 1.6A, Type Z, 400V ac AC, 6 kA Breaking Capacity
- RS Stock No.:
- 237-3239
- Mfr. Part No.:
- 2CDS253001R0258 S203 Z 1.6A - 10 KA
- Brand:
- ABB
Subtotal (1 unit)*
£139.14
(exc. VAT)
£166.97
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £139.14 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 237-3239
- Mfr. Part No.:
- 2CDS253001R0258 S203 Z 1.6A - 10 KA
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 3 | |
| Current Rating | 1.6A | |
| Tripping Characteristics | Type Z | |
| Rated AC Voltage | 400V ac | |
| Breaking Capacity | 6kA | |
| Mount Type | DIN Rail | |
| Range | System Pro M Compact | |
| Series | S200 | |
| Terminal Type | Screw | |
| IP Rating | IP20, IP40 | |
| Width | 52.5mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Depth | 69mm | |
| Height | 88mm | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Tripping Mechanism | Electromagnetic, Thermomagnetic | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 3 | ||
Current Rating 1.6A | ||
Tripping Characteristics Type Z | ||
Rated AC Voltage 400V ac | ||
Breaking Capacity 6kA | ||
Mount Type DIN Rail | ||
Range System Pro M Compact | ||
Series S200 | ||
Terminal Type Screw | ||
IP Rating IP20, IP40 | ||
Width 52.5mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Depth 69mm | ||
Height 88mm | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
Tripping Mechanism Electromagnetic, Thermomagnetic | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- DE
ABB S200 Series Miniature Circuit Breaker, 1.6A Current, 6 kA Breaking Capacity - 2CDS253001R0258 S203 Z 1.6A - 10 KA
This miniature circuit breaker provides three-pole overcurrent protection for low-voltage distribution systems and panel assemblies. Designed for DIN-rail mounting within industrial and commercial switchgear, it offers electrical interruption and overload/short-circuit protection using combined thermal and electromagnetic tripping. The device is intended for use where compact, standardised protection is required in automation, electrical and mechanical installations.
Features & Benefits
• 6 kA breaking capacity for effective fault-current interruption
• 1.6A nominal current for low-current circuit protection
• Type Z tripping characteristic for high inrush sensitivity
• Toggle reset actuator for clear manual operation
• Screw terminals to ensure secure conductor connections
• Thermomagnetic trip mechanism for combined overload and short-circuit response
• 1.6A nominal current for low-current circuit protection
• Type Z tripping characteristic for high inrush sensitivity
• Toggle reset actuator for clear manual operation
• Screw terminals to ensure secure conductor connections
• Thermomagnetic trip mechanism for combined overload and short-circuit response
Applications
• Suitable for protecting control circuits in automation cabinets
• Ideal for motor control and distribution feeders with inrush currents
• Used for safeguarding auxiliary circuits in electrical panels
• Can be used for protection in building services and distribution boards
• Ideal for motor control and distribution feeders with inrush currents
• Used for safeguarding auxiliary circuits in electrical panels
• Can be used for protection in building services and distribution boards
What voltage levels can it be applied to in AC systems?
It is rated for operation on 400V AC systems, suitable for three-phase low-voltage installations.
How is the device mounted within an enclosure?
It is designed to clip onto a standard DIN rail for straightforward panel installation.
What physical form factor affects panel layout?
The device occupies a width of 52.5mm which determines spacing and busbar alignment.
Which ingress protections are specified for its environment?
The enclosure conforms to IP20 and IP40 ratings, indicating protection against finger contact and limited dust ingress depending on mounting configuration.
What tripping technologies are incorporated for fault detection?
The breaker employs both thermal elements for overloads and an electromagnetic element for Rapid short-circuit tripping.
