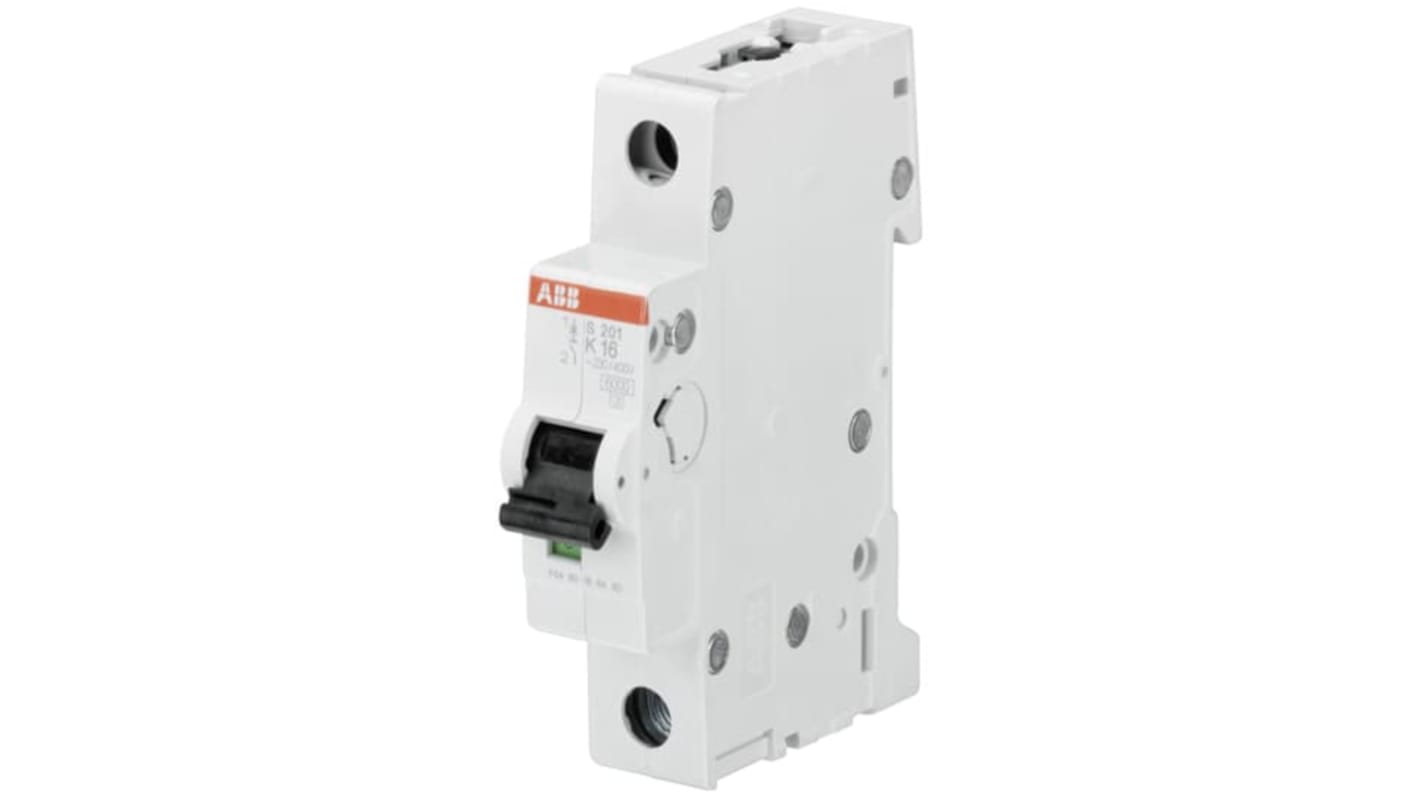

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 15A, Type K, 400V ac AC, 6 kA Breaking Capacity
- RS Stock No.:
- 237-3185
- Mfr. Part No.:
- 2CDS251001R0457
- Brand:
- ABB
Subtotal (1 unit)*
£31.48
(exc. VAT)
£37.78
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £31.48 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 237-3185
- Mfr. Part No.:
- 2CDS251001R0457
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 15A | |
| Tripping Characteristics | Type K | |
| Rated AC Voltage | 400V ac | |
| Breaking Capacity | 6kA | |
| Mount Type | DIN Rail | |
| Range | System Pro M Compact | |
| Series | S200 | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20, IP40 | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Width | 17.5mm | |
| Depth | 69mm | |
| Height | 88mm | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Tripping Mechanism | Thermomagnetic, Electromagnetic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 15A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 400V ac | ||
Breaking Capacity 6kA | ||
Mount Type DIN Rail | ||
Range System Pro M Compact | ||
Series S200 | ||
Terminal Type Cage Terminal | ||
IP Rating IP20, IP40 | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Width 17.5mm | ||
Depth 69mm | ||
Height 88mm | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
Tripping Mechanism Thermomagnetic, Electromagnetic | ||
- COO (Country of Origin):
- DE
ABB S200 Series MCB, 15A Current Rating, 1 Pole - 2CDS251001R0457
This MCB is a highly efficient 1 Pole Circuit Breaker designed for both commercial and residential applications. With a rated current of 15A, it delivers dependable performance at 230V AC and 72V DC. Its Compact design measures 17.5mm in width and 69mm in length, making it Ideal for DIN rail mounting. This breaker features Advanced overload protection and thermal tripping, ensuring safety and reliability in critical electrical systems.
Features & Benefits
• Designed for one-pole operation to conserve space
• Provides 10kA breaking capacity to handle fault conditions
• Combines thermal and electromechanical tripping for user safety
• Incorporates a toggle switch for easy manual resetting
• Specially built for overload protection to prevent circuit damage
• Provides 10kA breaking capacity to handle fault conditions
• Combines thermal and electromechanical tripping for user safety
• Incorporates a toggle switch for easy manual resetting
• Specially built for overload protection to prevent circuit damage
Applications
• Used in residential installations requiring effective circuit protection
• Ideal for commercial settings where electrical safety is paramount
• Suitable for automated systems that involve routine load management
• Essential for protecting equipment in varied electrical
• Ideal for commercial settings where electrical safety is paramount
• Suitable for automated systems that involve routine load management
• Essential for protecting equipment in varied electrical
What current ratings are available for this circuit breaker?
The ratings typically include models like the 15A variant, which is suitable for a range of applications.
How does the tripping mechanism function in this breaker?
It features both thermal and electromechanical mechanisms that allow for timely disconnection when overload or fault conditions are detected, enhancing overall system safety.
Is this circuit breaker compatible with all standard electrical systems?
Yes, it is designed to operate effectively within both residential and commercial electrical systems, ensuring broad applicability across various setups.
What type of mounting does this breaker support?
This device is specifically designed for DIN rail mounting, which simplifies installation in distribution boards.
