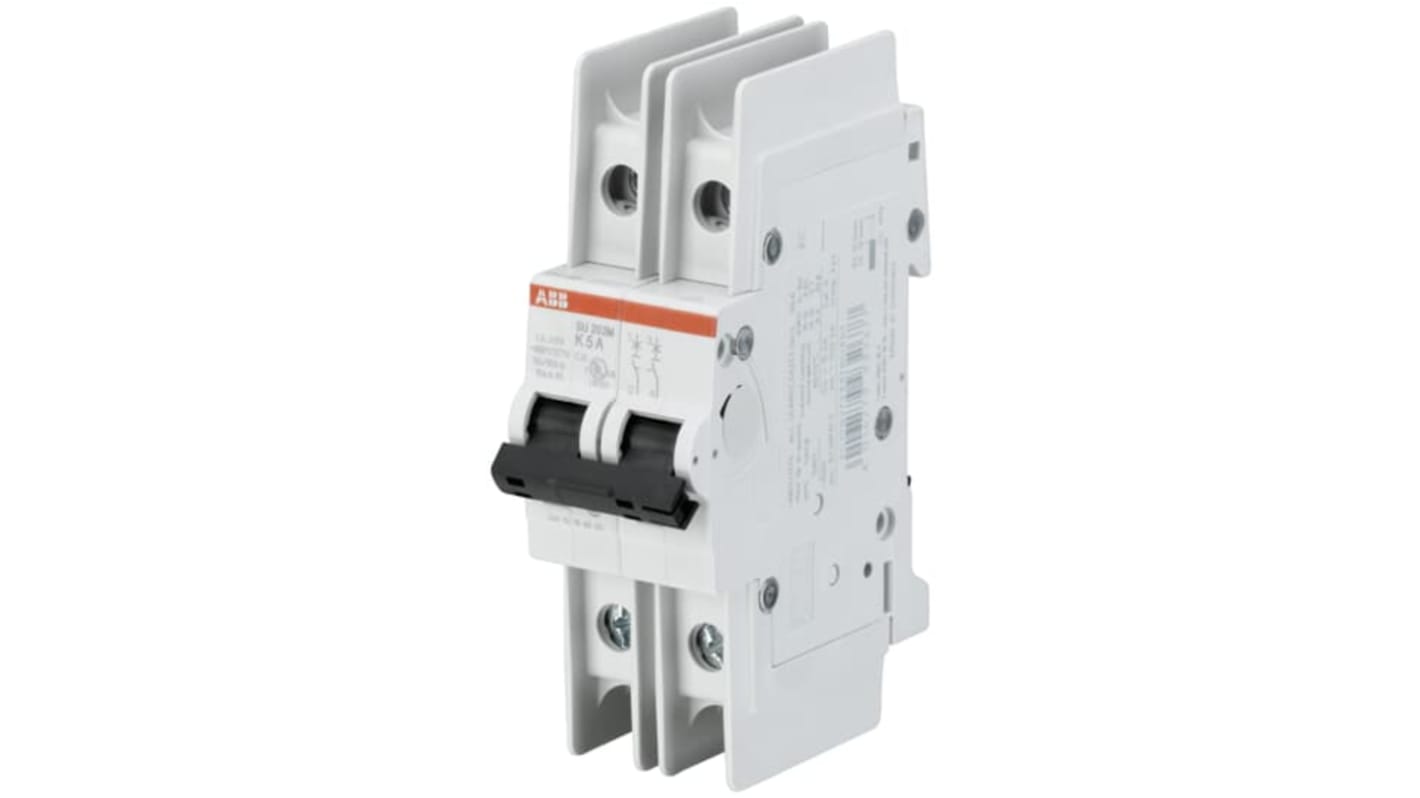

ABB System Pro M Compact SU200M MCB, 2P, 6A Curve C, 440V AC, 440V DC, 15 kA Breaking Capacity
- RS Stock No.:
- 231-9738
- Distrelec Article No.:
- 304-22-312
- Mfr. Part No.:
- 2CDS272337R0064 SU202M-C6
- Brand:
- ABB
Subtotal (1 box of 1 unit)*
£104.14
(exc. VAT)
£124.97
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box |
---|---|
1 + | £104.14 |
*price indicative
- RS Stock No.:
- 231-9738
- Distrelec Article No.:
- 304-22-312
- Mfr. Part No.:
- 2CDS272337R0064 SU202M-C6
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 2 | |
Current Rating | 6A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 440V | |
Rated DC Voltage | 440V | |
Breaking Capacity at Maximum Voltage Rating | 15 kA | |
Range | System Pro M Compact | |
Series | SU200M | |
Circuit Breaker Type | MCB | |
Width | 35mm | |
Length | 111mm | |
Mounting Style | DIN Rail Mount | |
Depth | 69mm | |
Model Number | SU202M-C6 | |
Terminal Contact Type | Screw | |
Reset Actuator Type | Toggle Switch | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 2 | ||
Current Rating 6A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 440V | ||
Rated DC Voltage 440V | ||
Breaking Capacity at Maximum Voltage Rating 15 kA | ||
Range System Pro M Compact | ||
Series SU200M | ||
Circuit Breaker Type MCB | ||
Width 35mm | ||
Length 111mm | ||
Mounting Style DIN Rail Mount | ||
Depth 69mm | ||
Model Number SU202M-C6 | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- BG
ABB SU200M Series MCB, 2 Poles, 6A Current Rating - 2CDS272337R0064 SU202M-C6
This miniature circuit breaker offers essential protection in electrical systems by effectively interrupting overload and short circuit conditions. Designed for various applications, it ensures efficiency in electrical safety devices. Its compact design is suitable for DIN rail mounting, making it an appropriate choice for industrial and commercial electrical installations.
Features & Benefits
• The 2P design simplifies circuit management for dual pole systems
• Type C characteristic ensures reliable tripping under moderate overloads
• Rated current of 6A meets diverse electrical requirements
• High breaking capacity of 10kA enhances safety during fault conditions
• Robust construction with IP20 protection contributes to durability
• Flexible terminal options allow for easy wire connections
• Type C characteristic ensures reliable tripping under moderate overloads
• Rated current of 6A meets diverse electrical requirements
• High breaking capacity of 10kA enhances safety during fault conditions
• Robust construction with IP20 protection contributes to durability
• Flexible terminal options allow for easy wire connections
Applications
• Suitable for residential circuit protection systems
• Effective for machine controls in industrial environments
• Appropriate for commercial electrical distribution panels
• Useful in automation control
• Effective for machine controls in industrial environments
• Appropriate for commercial electrical distribution panels
• Useful in automation control
What is the recommended mounting rail type for installation?
It is designed for installation on standard DIN rails of 35mm.
Can it handle both AC and DC systems?
It is primarily rated for 400V AC applications and has ratings for DC as well.
What should I do if it trips frequently?
Investigate potential overloading or short circuits in the connected circuit.
Is any special maintenance required?
Regular inspections for corrosion or mechanical wear are advisable.
What ambient temperature range can it safely operate in?
It can operate effectively within a temperature range of -25 to +55°C.
