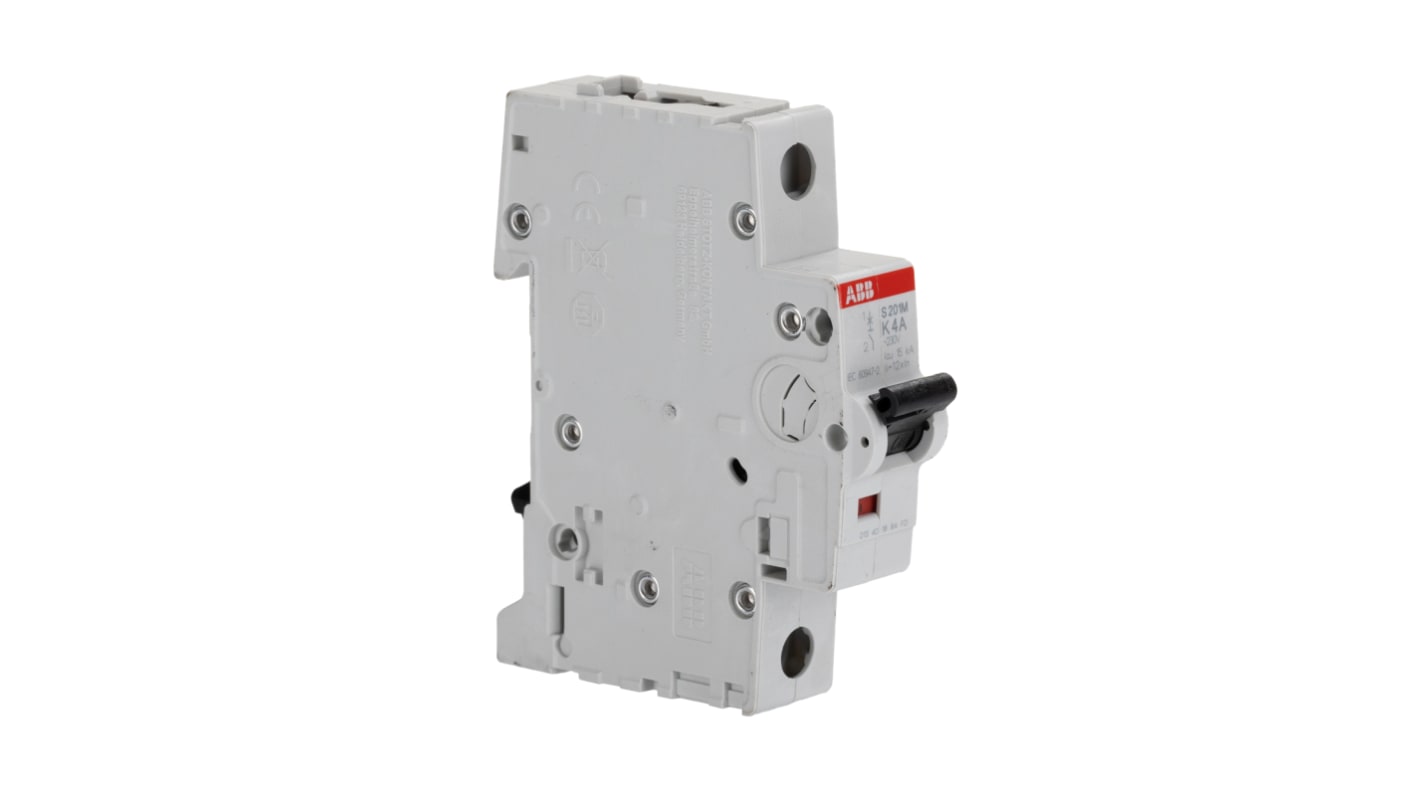

ABB System Pro M Compact S200M Miniature Circuit Breaker, 1-Pole, 4A, Type K, 253V ac AC, 72 V dc DC, 15 kA Breaking
- RS Stock No.:
- 231-9695
- Mfr. Part No.:
- 2CDS271001R0337 S201M K 4A - 15 KA
- Brand:
- ABB
Subtotal (1 box of 1 unit)*
£32.19
(exc. VAT)
£38.63
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box |
|---|---|
| 1 + | £32.19 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 231-9695
- Mfr. Part No.:
- 2CDS271001R0337 S201M K 4A - 15 KA
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 4A | |
| Tripping Characteristics | Type K | |
| Rated AC Voltage | 253V ac | |
| Rated DC Voltage | 72V dc | |
| Breaking Capacity | 15kA | |
| Mount Type | DIN Rail | |
| Range | System Pro M Compact | |
| Series | S200M | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20, IP40 | |
| Depth | 69mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Height | 69mm | |
| Width | 17.5mm | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| Tripping Mechanism | Electromagnetic, Thermomagnetic | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 4A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 253V ac | ||
Rated DC Voltage 72V dc | ||
Breaking Capacity 15kA | ||
Mount Type DIN Rail | ||
Range System Pro M Compact | ||
Series S200M | ||
Terminal Type Cage Terminal | ||
IP Rating IP20, IP40 | ||
Depth 69mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Height 69mm | ||
Width 17.5mm | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
Tripping Mechanism Electromagnetic, Thermomagnetic | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- DE
ABB S200M Series MCB, 1 Pole, 4A Current Rating - 2CDS271001R0337 S201M K 4A - 15 KA
This miniature circuit breaker is essential for various applications that require dependable circuit protection. Its compact design is tailored for DIN rail mounting, facilitating efficient installation in electrical panels. The MCB is especially useful in systems needing overload and short circuit protection, making it a favoured choice for both residential and commercial environments.
Features & Benefits
• Current limiting capabilities provide efficient protection against overloads
• Dual tripping mechanisms enhance short circuit safety
• Compliance with IEC standards ensures safety and reliability
• Compact design optimises space in electrical installations
• Models feature a tripping characteristic that improves performance
• Designed for easy disassembly, supporting sustainable practices
Applications
• Suitable for residential electrical systems to enhance safety
• Ideal for commercial settings needing compact circuit protection
• Applicable in industrial environments requiring dependable circuit control
• Utilised in automated processes that demand overcurrent protection
• Suitable for a range of electrical installations in machinery
What is the operational temperature range for reliable use?
The operational temperature range is -25°C to +55°C, ensuring functionality in various environments.
How is the compact design beneficial during installation?
The compact design saves valuable space on DIN rails, aiding effective panel organisation.
What type of wiring is compatible with the terminals?
The terminals are compatible with rigid and flexible wires ranging from 0.75mm² to 35mm².
Can it be mounted in any orientation?
Yes, it allows for versatile mounting positions, accommodating different installation requirements.
What standards does it comply with?
It complies with IEC/EN standards, ensuring adherence to safety and performance regulations.
