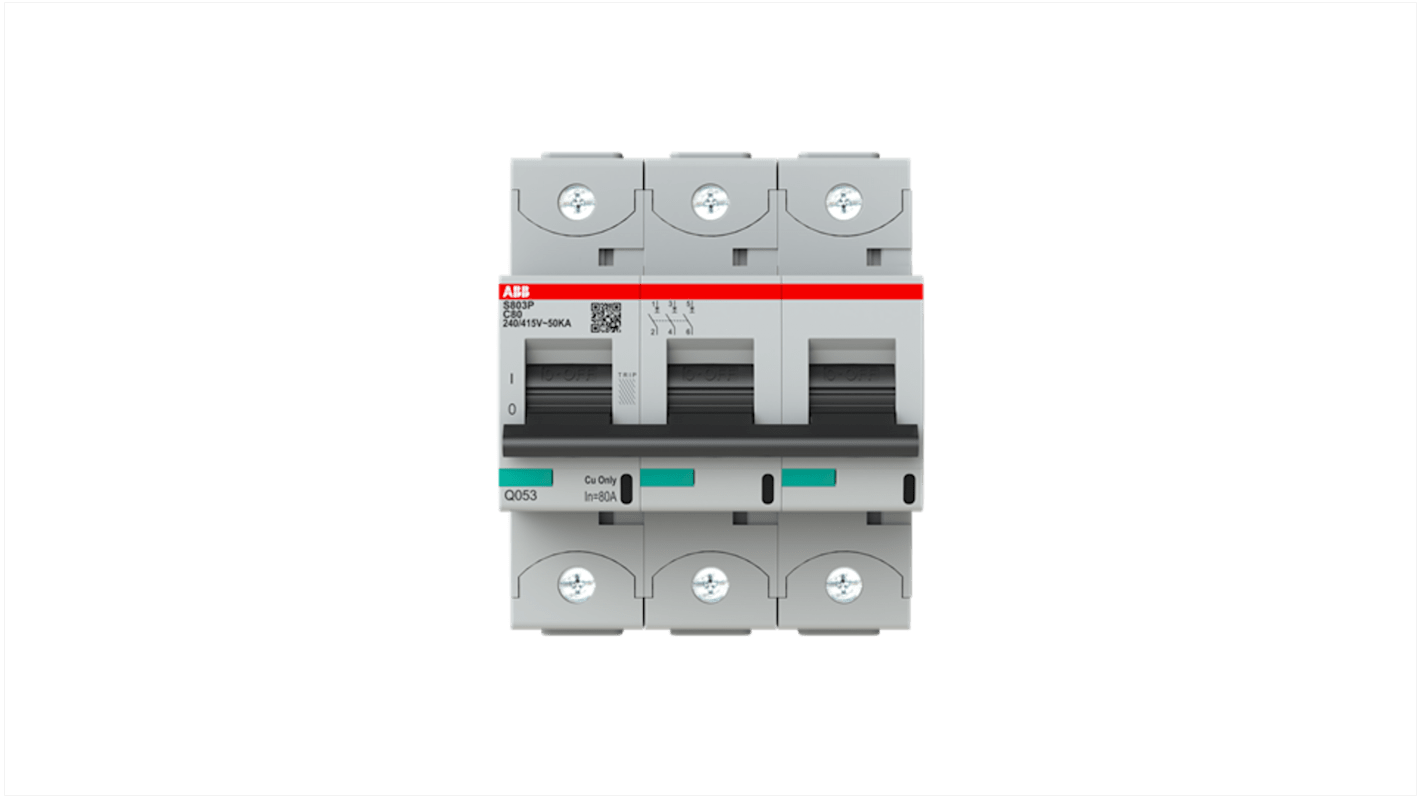

ABB High Performance S800C Miniature Circuit Breaker, 3-Pole, 80A, Type C, 690V AC, 375 V dc DC, 25 kA Breaking Capacity

View all MCBs

Subtotal (1 box of 1 unit)*

£289.81

(exc. VAT)

£347.77

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
1 +£289.81

*price indicative

RS Stock No.:
231-9579
Mfr. Part No.:
2CCG001232R0001
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

3

Product Type

Miniature Circuit Breaker

Current Rating

80A

Tripping Characteristics

Type C

Rated AC Voltage

690V

Rated DC Voltage

375V dc

Breaking Capacity

25kA

Mount Type

DIN Rail

Range

High Performance

Series

S800C

Terminal Type

Screw

IP Rating

IP20

Width

81mm

Height

95mm

Depth

82.5mm

Standards/Approvals

IEC/EN 60898-1, IEC/EN 60947-2

Tripping Mechanism

Electromagnetic, Thermomagnetic

Reset Actuator Type

Toggle Switch

COO (Country of Origin):
CH

ABB S800C Series MCB, 3 Poles, 80A Current Rating - 2CCG001232R0001


This miniature circuit breaker offers exceptional performance, designed specifically for high-demand electrical systems. The S803P-C80 model from ABB features a robust 3-pole configuration with a current rating of 80 A, allowing for reliable operation in various applications. With a Compact design measuring 81mm in width and a breaking capacity of 50kA, it can efficiently handle both AC and DC voltage ratings up to 690V.

Features & Benefits


• Provides Type C characteristic for optimal protection against overloads
• High breaking capacity ensures safety during fault conditions
• Designed for easy DIN rail mounting for versatile installation
• Toggle switch actuator simplifies resetting and operation

Applications


• Utilised in commercial buildings for electrical panel protection
• Employed in industrial machinery to safeguard against overloads
• Integrated into automation systems for circuit control
• Used in renewable energy systems such as solar installations
• Fitted in residential settings to enhance electrical safety

How does this breaker ensure long-term performance?


Built to IEC 60947-2 standards, it features high-quality components that can withstand environmental stresses, ensuring durability and reliability in demanding applications.

What types of connections are supported by this device?


It supports a connecting capacity for flexible cables up to 50 mm² and rigid cables up to 70 mm², accommodating various installation needs.

What is the significance of the breaking capacity in practical terms?


A 50kA breaking capacity means the circuit breaker can safely interrupt high fault currents, reducing the risk of fire or equipment damage during electrical failures.

How is the installation process facilitated for this circuit breaker?


The design allows for seamless DIN rail mounting, making it easy to install in standard electrical distribution setups without the need for special tools.
