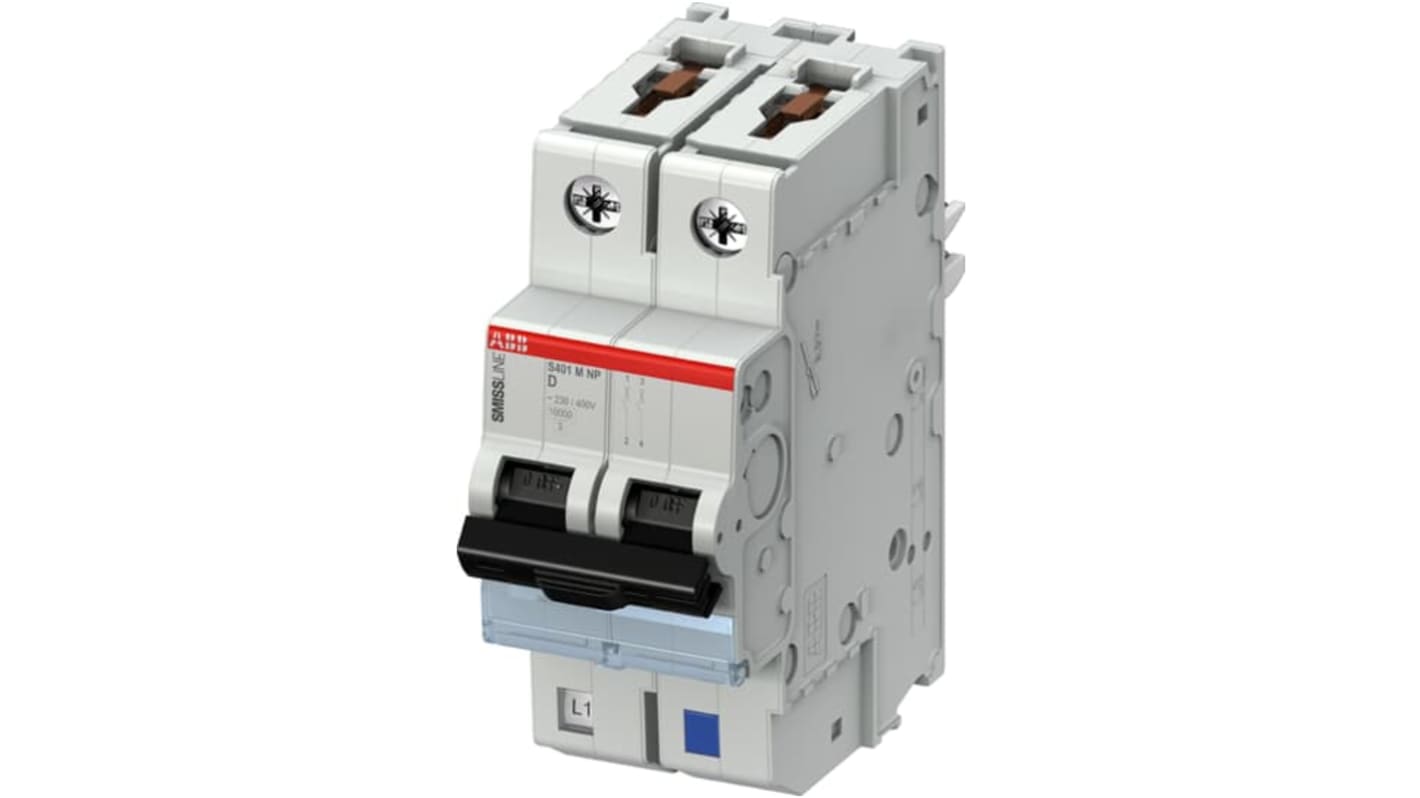

ABB SMISSLINE TP S400M Miniature Circuit Breaker, 2-Pole, 16 A, Type D, 240 V AC, 10 kA Breaking Capacity
- RS Stock No.:
- 231-9559
- Mfr. Part No.:
- 2CCS571103R8161 S401M-D16NP
- Brand:
- ABB
Subtotal (1 box of 1 unit)*
£61.36
(exc. VAT)
£73.63
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box |
|---|---|
| 1 + | £61.36 |
*price indicative
- RS Stock No.:
- 231-9559
- Mfr. Part No.:
- 2CCS571103R8161 S401M-D16NP
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 2 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 16 A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 240 V | |
| Breaking Capacity | 10kA | |
| Mount Type | DIN Rail | |
| Range | SMISSLINE TP | |
| Series | S400M | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Standards/Approvals | IEC/EN 60898-1 | |
| Height | 91mm | |
| Width | 36 mm | |
| Depth | 82mm | |
| Tripping Mechanism | Thermal, Electromechanic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 2 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 16 A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 240 V | ||
Breaking Capacity 10kA | ||
Mount Type DIN Rail | ||
Range SMISSLINE TP | ||
Series S400M | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Standards/Approvals IEC/EN 60898-1 | ||
Height 91mm | ||
Width 36 mm | ||
Depth 82mm | ||
Tripping Mechanism Thermal, Electromechanic | ||
- COO (Country of Origin):
- CH
The ABB S400M series miniature circuit breaker has pole conductor indicator changes when the contact is moved to the rear of the device. It is high performance MCB with type-C tripping characteristic. It has contact position indication with red/green colour.
Degree of protection IP20
Din-rail mounting
Energy limiting class 3
