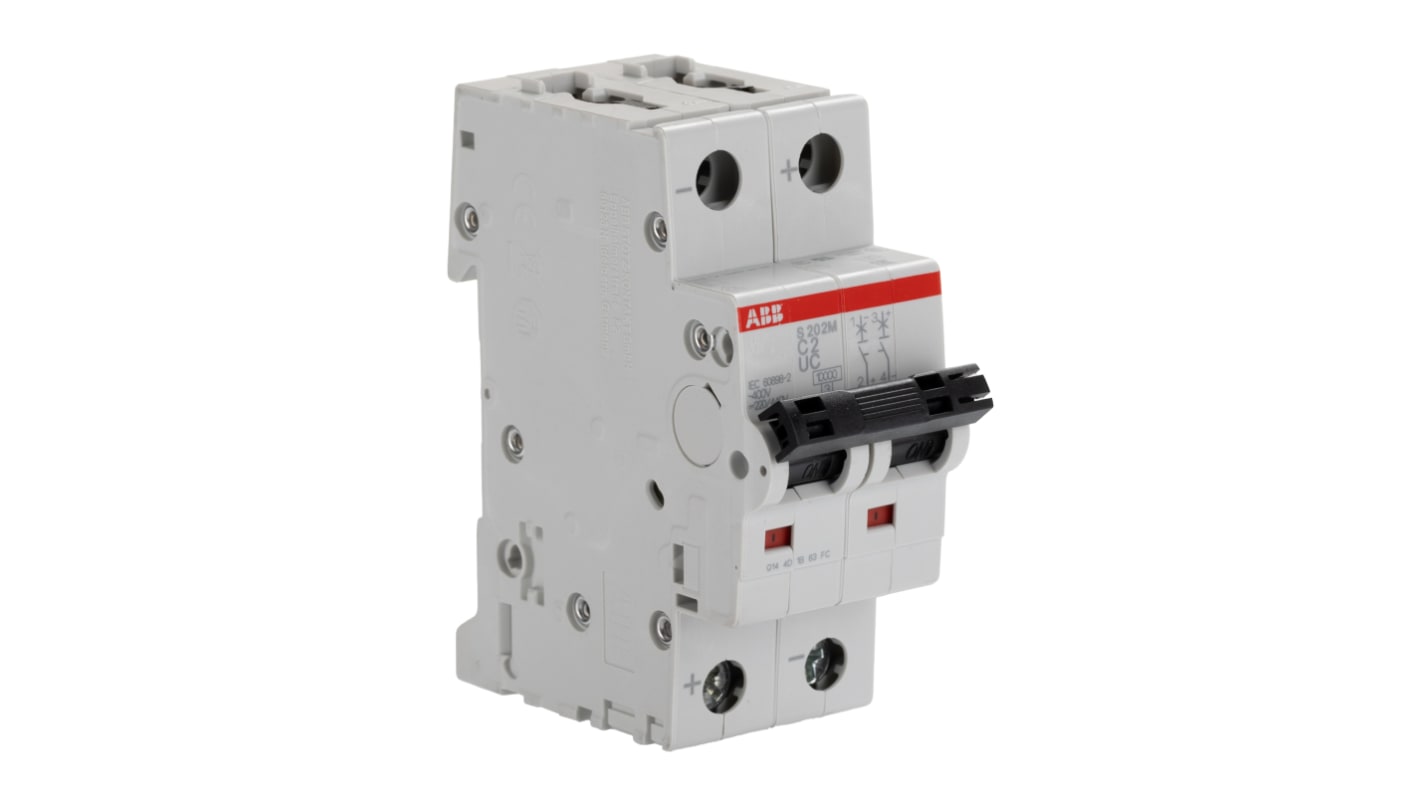

ABB System Pro M Compact S200MUC MCB, 2P, 2A Curve C, 440V AC, 500V DC, 25 kA Breaking Capacity
- RS Stock No.:
- 225-6012
- Mfr. Part No.:
- 2CDS272061R0024 S202 MUC C 2A 10 KA
- Brand:
- ABB
Subtotal (1 unit)*
£201.39
(exc. VAT)
£241.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 3 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £201.39 |
*price indicative
- RS Stock No.:
- 225-6012
- Mfr. Part No.:
- 2CDS272061R0024 S202 MUC C 2A 10 KA
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 2 | |
Current Rating | 2A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 440V | |
Rated DC Voltage | 500V | |
Breaking Capacity at Maximum Voltage Rating | 25 kA | |
Range | System Pro M Compact | |
Series | S200MUC | |
Circuit Breaker Type | MCB | |
Length | 88mm | |
Width | 35mm | |
Mounting Style | DIN Rail Mount | |
Depth | 69mm | |
Model Number | S202M-C2UC2A | |
Terminal Contact Type | Screw | |
Reset Actuator Type | Toggle Switch | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 2 | ||
Current Rating 2A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 440V | ||
Rated DC Voltage 500V | ||
Breaking Capacity at Maximum Voltage Rating 25 kA | ||
Range System Pro M Compact | ||
Series S200MUC | ||
Circuit Breaker Type MCB | ||
Length 88mm | ||
Width 35mm | ||
Mounting Style DIN Rail Mount | ||
Depth 69mm | ||
Model Number S202M-C2UC2A | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
ABB S200MUC Series MCB, 2 Poles, 2A Current Rating - 2CDS272061R0024 S202 MUC C 2A 10 KA
This miniature circuit breaker offers dependable circuit protection for both AC and DC applications. With a current rating of 2A, it effectively safeguards against overcurrents, making it essential for various electrical installations. Combining high performance with a robust design, it adheres to international standards for assurance.
Features & Benefits
• High short-circuit breaking capacity of 10kA for enhanced safety
• Type C characteristics suited for inductive loads
• DIN rail mounting facilitates straightforward installation
• Compatibility with System Pro M Compact series accessories
• Performs reliably in ambient temperatures from -25°C to +55°C
• Compact design optimises space within electrical systems
• Type C characteristics suited for inductive loads
• DIN rail mounting facilitates straightforward installation
• Compatibility with System Pro M Compact series accessories
• Performs reliably in ambient temperatures from -25°C to +55°C
• Compact design optimises space within electrical systems
Applications
• Suitable for solar power supply systems
• Utilised in industrial automation equipment
• Appropriate for electrical installations in residential buildings
• Employed in commercial lighting control systems
• Ideal for motor protection in electrical machinery
• Utilised in industrial automation equipment
• Appropriate for electrical installations in residential buildings
• Employed in commercial lighting control systems
• Ideal for motor protection in electrical machinery
What are the installation requirements for this product?
It requires a standard DIN rail for secure mounting and needs to maintain correct polarity for DC applications.
How does it handle peak loads?
The breaker is designed with a high short-circuit capacity to manage peak current without nuisance tripping.
What maintenance does this device require?
Regular inspections are advised to ensure connections are secure and that the device functions correctly under specified conditions.
Can it be used in outdoor environments?
It is suitable for indoor applications
enclosures may be required for outdoor installations to protect against moisture.
Is it compatible with other brands of accessories?
While specifically designed for the System Pro M Compact series, compatibility with accessories from other brands may vary.
