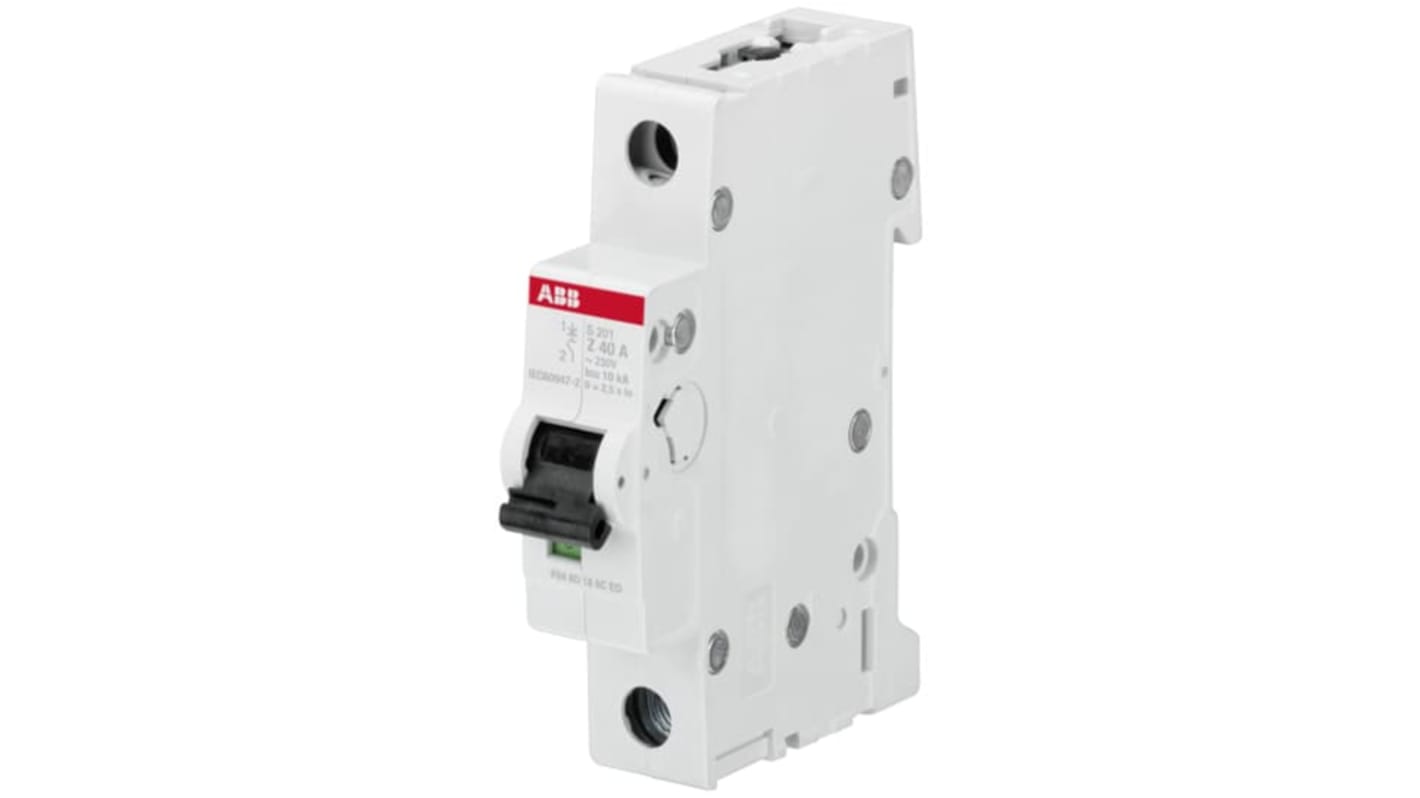

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 4A, Type Z, 253V AC, 72 V DC, 10 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£33.13

(exc. VAT)

£39.76

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 39 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£33.13

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
225-5992
Distrelec Article No.:
304-08-573
Mfr. Part No.:
2CDS251001R0338 S201 Z 4A - 10 KA
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

1

Product Type

Miniature Circuit Breaker

Current Rating

4A

Tripping Characteristics

Type Z

Rated AC Voltage

253V

Rated DC Voltage

72V

Breaking Capacity

10kA

Mount Type

DIN Rail

Range

System Pro M Compact

Series

S200

Terminal Type

Screw

IP Rating

IP20, IP40

Height

88mm

Depth

69mm

Standards/Approvals

IEC/EN 60898-1, IEC/EN 60947-2

Width

17.5mm

Better World Claim

Designed for Disassembly

Better World Product

Yes

Tripping Mechanism

Thermal

Reset Actuator Type

Toggle Switch

COO (Country of Origin):
DE

ABB S200 Series MCB, 4A Current Rating , 1 Pole Configuration - 2CDS251001R0338 S201 Z 4A - 10 KA


This MCB is a VITAL component in electrical systems, specifically designed for commercial and industrial applications. With a current rating of 4A, it efficiently manages electrical overloads while ensuring safety through its Type Z design. The device features a DIN rail mount and measures 17.5mm in width and 69mm in length, making it an optimal fit for various installations.

Features & Benefits


• Provides 10 kA breaking capacity for reliable overload protection
• Equipped with a thermal tripping mechanism for enhanced safety
• Ideal for DIN rail mounting, simplifying installation processes
• Utilises robust overload protection device features
• Compact design optimises space in electrical panels
• Designed with thermal trip characteristics for operational reliability

Applications


• Utilised in commercial electrical safety systems
• Effective for managing industrial circuit breakers
• Commonly integrated into System Pro M Compact installations
• Suitable for requiring compliance with safety standards
• Ideal for maintaining operational integrity in critical power systems

How does the thermal tripping mechanism enhance safety in operations?


The thermal tripping mechanism detects overcurrent conditions and automatically disconnects power, preventing potential damage to connected equipment and minimising fire risks resulting from electrical faults.

Can this circuit breaker be used in residential settings?


While primarily designed for commercial and industrial applications, it can be used in residential installations where specific overload requirements exist, provided appropriate safety standards are met.

What ensures the longevity of this MCB in demanding applications?


The robust design, coupled with overload protection and thermal tripping features, provides resilience against common electrical faults, ensuring a longer operational lifespan.

How is the DIN rail mounting beneficial for installation?


The DIN rail mounting allows for quick and secure installation within existing electrical panels, facilitating efficient use of space and simplifying future upgrades or replacements.
