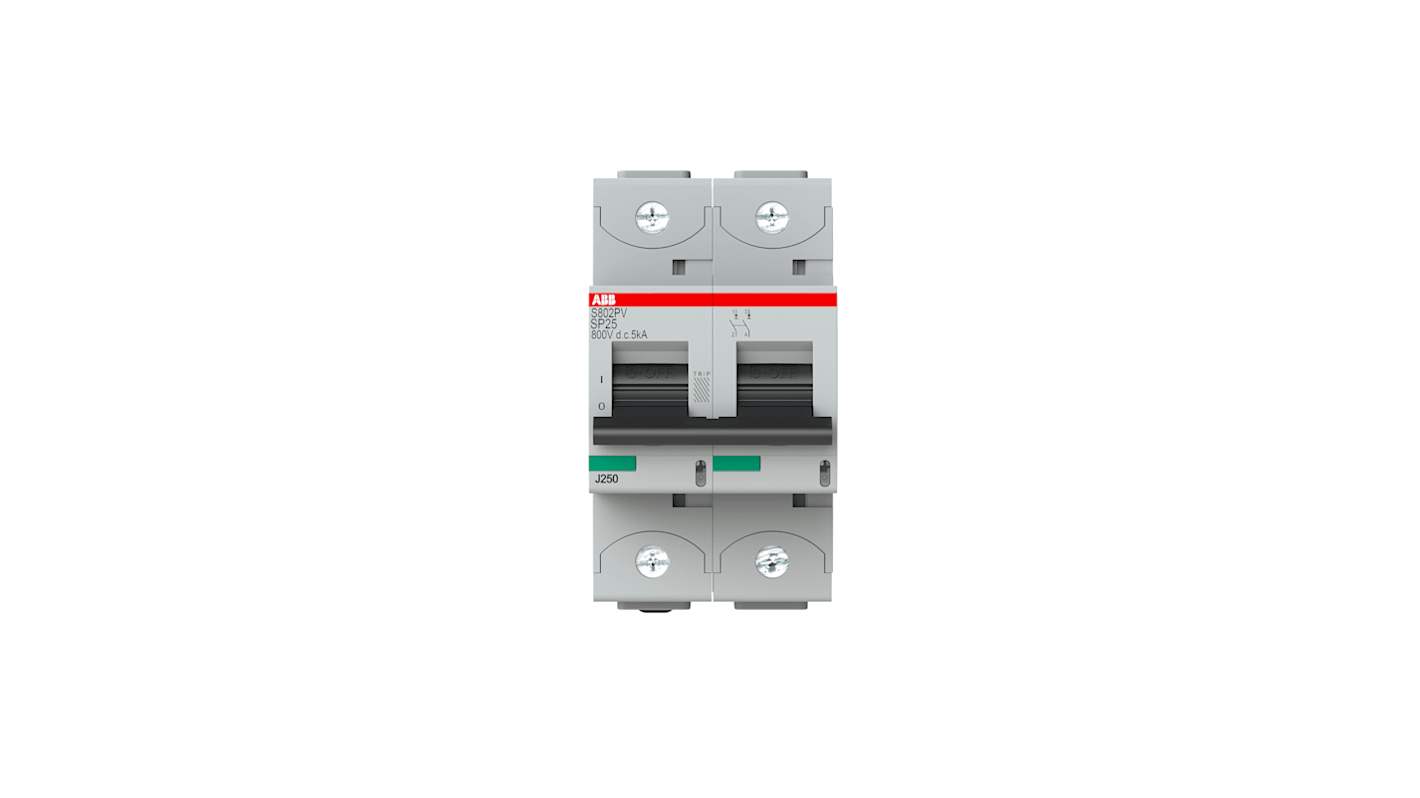

ABB S800PV MCB, 2P, 25A Curve B, 800V DC, 5 kA Breaking Capacity
- RS Stock No.:
- 225-5920
- Mfr. Part No.:
- 2CCF019601R0001 S802PV-SP25 - 5 kA
- Brand:
- ABB
Subtotal (1 unit)*
£184.52
(exc. VAT)
£221.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £184.52 |
*price indicative
- RS Stock No.:
- 225-5920
- Mfr. Part No.:
- 2CCF019601R0001 S802PV-SP25 - 5 kA
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 2 | |
| Current Rating | 25A | |
| Tripping Characteristics | Type B | |
| Rated DC Voltage | 800V | |
| Breaking Capacity at Maximum Voltage Rating | 5 kA | |
| Series | S800PV | |
| Circuit Breaker Type | MCB | |
| Length | 82.5mm | |
| Width | 54mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 82.5mm | |
| Model Number | S802PV-SP25 | |
| Tripping Mechanism | Thermal | |
| Terminal Contact Type | Cage Clamp | |
| Reset Actuator Type | Toggle Switch | |
Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 2 | ||
Current Rating 25A | ||
Tripping Characteristics Type B | ||
Rated DC Voltage 800V | ||
Breaking Capacity at Maximum Voltage Rating 5 kA | ||
Series S800PV | ||
Circuit Breaker Type MCB | ||
Length 82.5mm | ||
Width 54mm | ||
Mounting Style DIN Rail Mount | ||
Depth 82.5mm | ||
Model Number S802PV-SP25 | ||
Tripping Mechanism Thermal | ||
Terminal Contact Type Cage Clamp | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- CH
ABB S800PV Series MCB, 25A Current Rating, 2 Poles - 2CCF019601R0001 S802PV-SP25 - 5 kA
This circuit breaker belongs to the high-performance series designed for photovoltaic applications. It features a rated current of 25A, with a maximum breaking capacity of 5kA at a voltage rating of 800V DC. The device utilises a thermal tripping mechanism for overload protection, ensuring reliability alongside its compact dimensions, measuring 54mm in width and 82.5mm in depth.
Features & Benefits
• Rated for 800V DC, ideal for photovoltaics
• Complies with IEC/EN 60947 standards for safety
• Fast arc extinction improves operational reliability
• Suitable for a variety of industrial applications
• Complies with IEC/EN 60947 standards for safety
• Fast arc extinction improves operational reliability
• Suitable for a variety of industrial applications
Applications
• Used for circuit protection in solar energy systems
• Effective in industrial electrical distribution networks
• Suitable for settings demanding Type B characteristics
• Effective in industrial electrical distribution networks
• Suitable for settings demanding Type B characteristics
What type of terminals does this product have?
It features cage clamp terminals for secure connections.
What is the operational temperature range for this circuit breaker?
It operates effectively within -25 to 60 °C.
