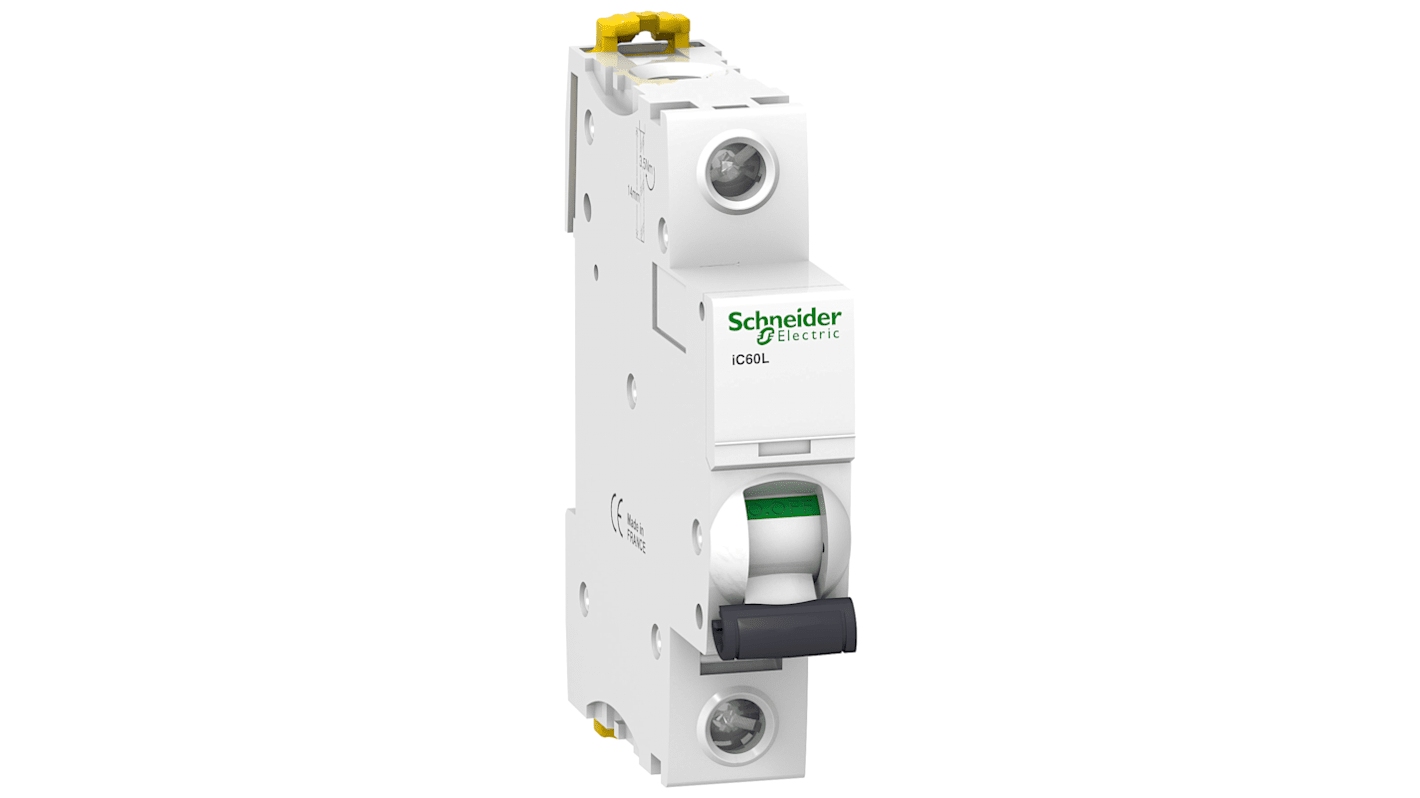

Schneider Electric Acti9 iC60L Miniature Circuit Breaker, 1-Pole, 32 A, Type C, 230 V AC, 72 V DC, 15000 A Breaking
- RS Stock No.:
- 219-9268
- Mfr. Part No.:
- A9F94132
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£54.14
(exc. VAT)
£64.97
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £54.14 |
*price indicative
- RS Stock No.:
- 219-9268
- Mfr. Part No.:
- A9F94132
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 32 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 230 V | |
| Rated DC Voltage | 72 V | |
| Breaking Capacity | 15000A | |
| Mount Type | DIN Rail | |
| Range | Acti9 | |
| Series | iC60L | |
| Terminal Type | Single Terminal | |
| IP Rating | IP20 | |
| Standards/Approvals | IEC 60947-2, EN 60947-2, IEC 60898-1, EN 60898-1 | |
| Height | 85mm | |
| Width | 18 mm | |
| Depth | 78.5mm | |
| Reset Actuator Type | Toggle | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 32 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230 V | ||
Rated DC Voltage 72 V | ||
Breaking Capacity 15000A | ||
Mount Type DIN Rail | ||
Range Acti9 | ||
Series iC60L | ||
Terminal Type Single Terminal | ||
IP Rating IP20 | ||
Standards/Approvals IEC 60947-2, EN 60947-2, IEC 60898-1, EN 60898-1 | ||
Height 85mm | ||
Width 18 mm | ||
Depth 78.5mm | ||
Reset Actuator Type Toggle | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- FR
The Schneider Electric Acti9 iC60L miniature circuit breaker is the safest, simplest and most efficient system for power distribution solutions. It delivers complete industry approved protection. It is perfect for commercial and industrial applications.
It guarantees total safety during maintenance
It guarantees long life service
It has fast closing mechanism
It prevents unnecessary trips
It is easy to operate
It is easy to upgrade
