- RS Stock No.:
- 219-9128
- Mfr. Part No.:
- M9F22216
- Brand:
- Schneider Electric
Available to back order for despatch 24/05/2024, delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£74.56
(exc. VAT)
£89.47
(inc. VAT)
Units | Per unit |
1 + | £74.56 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 219-9128
- Mfr. Part No.:
- M9F22216
- Brand:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

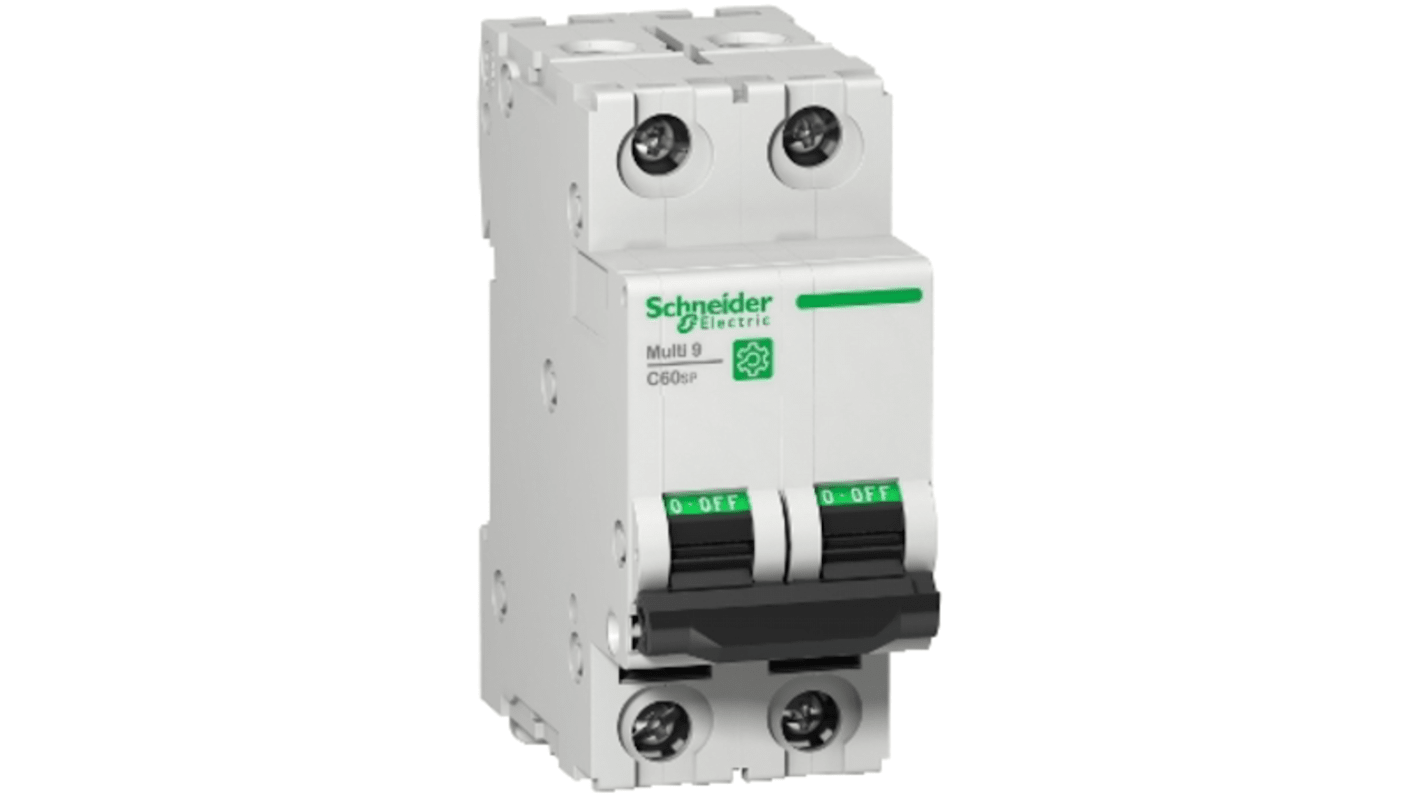

The Schneider Electrics product Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 16A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV.
RoHS compliant
Specifications
Attribute | Value |
---|---|
Number of Poles | 2P |
Current Rating | 16A |
Tripping Characteristics | Type C |
Breaking Capacity at Maximum Voltage Rating | 10 kA |
Range | Multi 9 |
Circuit Breaker Type | MCB |
Length | 81mm |
Width | 36mm |
Mounting Style | DIN Rail Mount |
Depth | 72mm |
Model Number | C60SP |
Better World Product | Yes |
Better World Verification | Green Premium |
Tripping Mechanism | Thermal-Magnetic |
