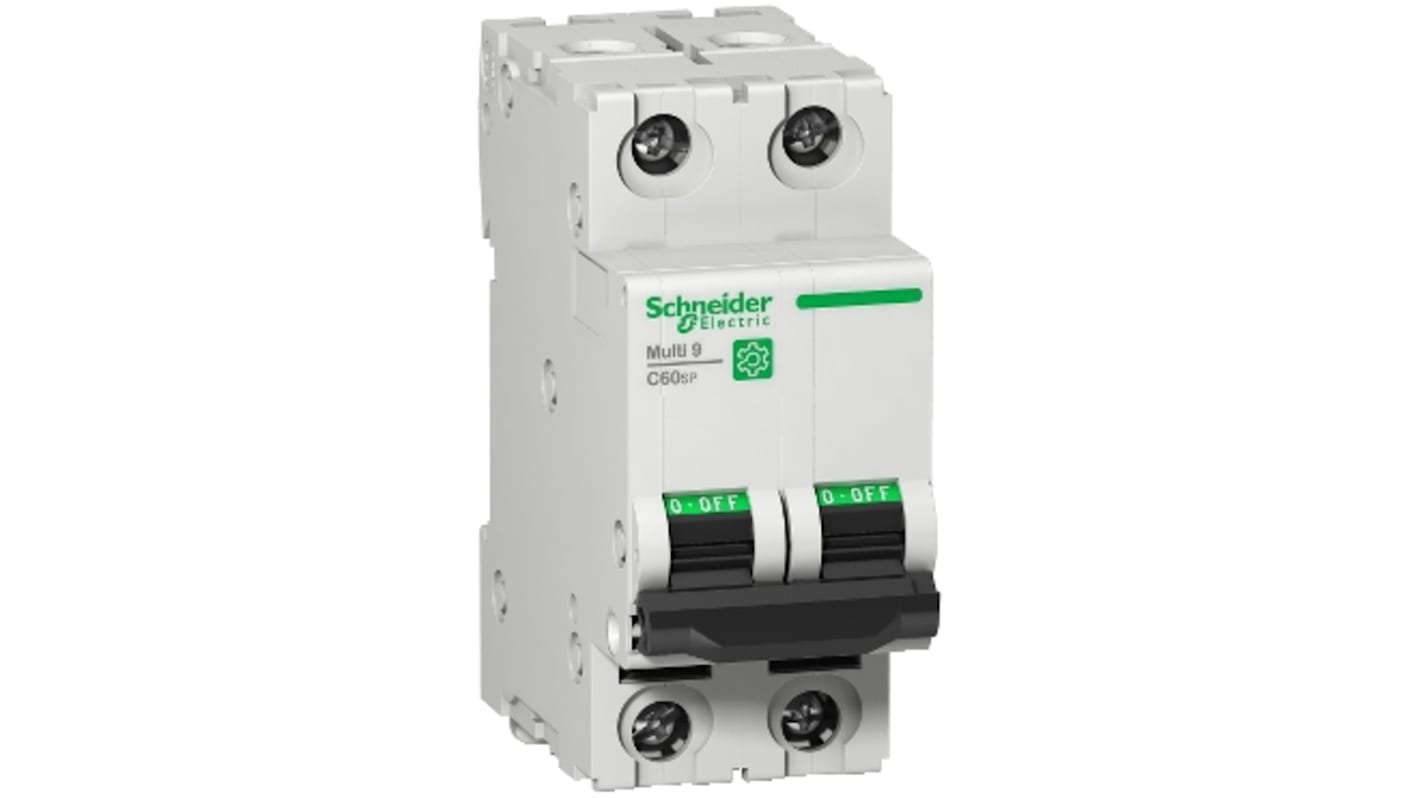

Schneider Electric Multi 9 MCB, 2P, 10A Curve C, 10 kA Breaking Capacity
- RS Stock No.:
- 219-9126
- Distrelec Article No.:
- 304-23-471
- Mfr. Part No.:
- M9F22210
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£77.21
(exc. VAT)
£92.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £77.21 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 219-9126
- Distrelec Article No.:
- 304-23-471
- Mfr. Part No.:
- M9F22210
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Poles | 2 | |
| Current Rating | 10A | |
| Tripping Characteristics | Type C | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Range | Multi 9 | |
| Circuit Breaker Type | MCB | |
| Length | 81mm | |
| Width | 36mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 72mm | |
| Model Number | C60SP | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Tripping Mechanism | Thermal-Magnetic | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Poles 2 | ||
Current Rating 10A | ||
Tripping Characteristics Type C | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range Multi 9 | ||
Circuit Breaker Type MCB | ||
Length 81mm | ||
Width 36mm | ||
Mounting Style DIN Rail Mount | ||
Depth 72mm | ||
Model Number C60SP | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Tripping Mechanism Thermal-Magnetic | ||
- COO (Country of Origin):
- FR
The Schneider Electrics product Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 10A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV.
RoHS compliant
