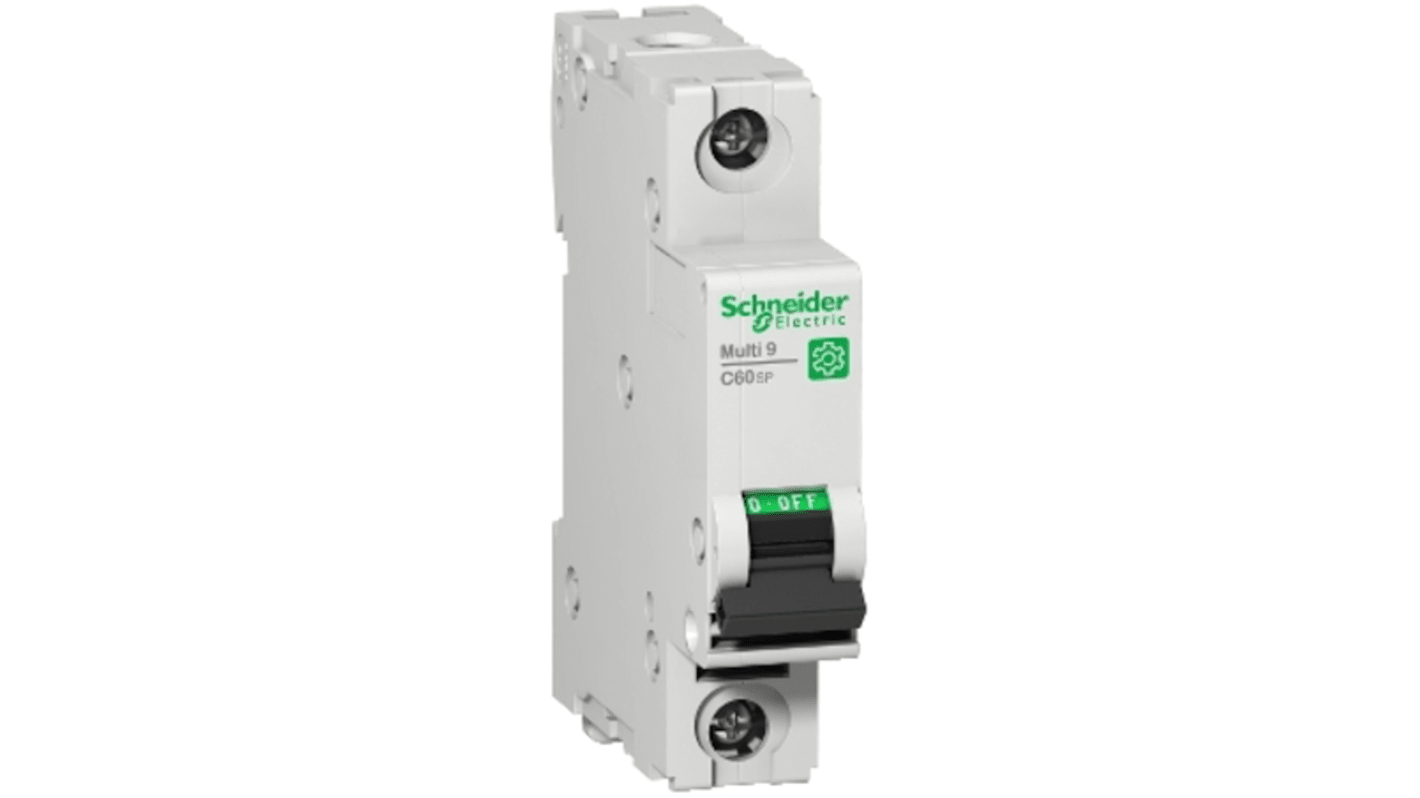

Schneider Electric Multi9 M9F Miniature Circuit Breaker, 1-Pole, 5A, Type C, 60 V dc DC, 10 kA Breaking Capacity

This MCB is a DIN Rail mount circuit breaker designed for reliable protection in electrical systems. With a single pole and a current rating of 5 A, this Compact device measures 18mm in width and 81mm in length. Featuring Type C tripping characteristics and a robust thermal-magnetic mechanism, it ensures effective operation across various applications. This product is noted for its breaking capacity of 10 kA, providing peace of mind in high-demand situations.

• Compact design allows for efficient use of electrical panel space
• Thermal magnetic operation protects against overloads and short circuits
• Type C characteristics enable handling of high inrush current loads
• Single pole configuration simplifies installation and wiring
• Specifically designed for the Multi 9 range ensuring compatibility

• Utilised in residential and light commercial installations
• Ideal for protecting lighting circuits and small motors
• Used in automation systems requiring circuit protection
• Suitable for environments with fluctuating load conditions

The thermal-magnetic mechanism combines thermal protection for slow overloads and magnetic protection for instantaneous short circuits, ensuring reliable disconnection under fault conditions.

A breaking capacity of 10 kA indicates the maximum fault current the device can interrupt without damage, ensuring the safety of electrical systems during fault conditions.

Yes, its DIN Rail mounting style allows for straightforward installation in standard electrical panels, facilitating seamless integration with other components.

Type C characteristics are beneficial for applications with high inrush currents, such as transformers and inductive loads, ensuring protection without nuisance tripping.
