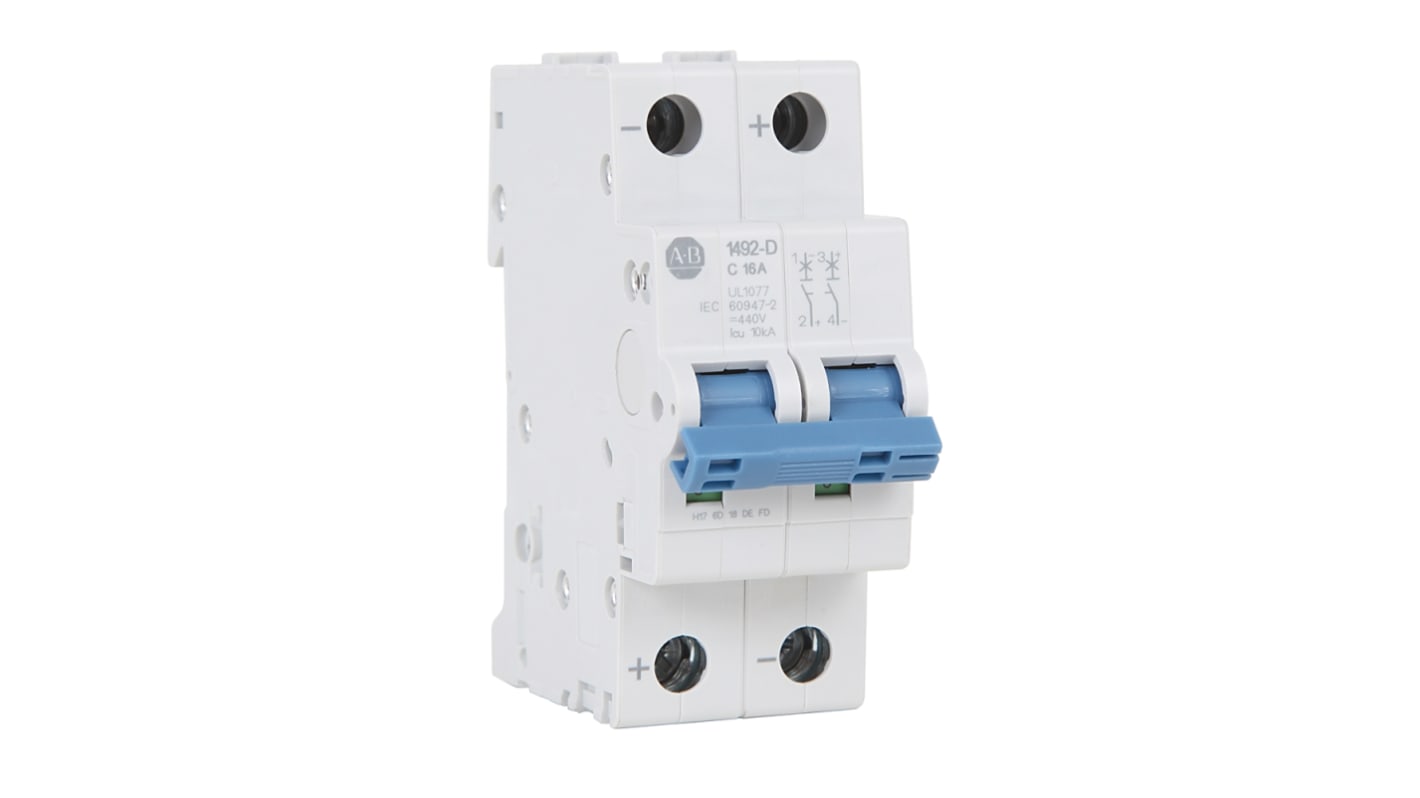

Allen Bradley 1492-D2 1492-D MCB, 2P, 25A Curve C, 10 kA Breaking Capacity
- RS Stock No.:
- 218-8559
- Mfr. Part No.:
- 1492-D2C250
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£90.84
(exc. VAT)
£109.01
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £90.84 |
*price indicative
- RS Stock No.:
- 218-8559
- Mfr. Part No.:
- 1492-D2C250
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Allen Bradley | |
Number of Poles | 2 | |
Current Rating | 25A | |
Tripping Characteristics | Type C | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | 1492-D2 | |
Series | 1492-D | |
Circuit Breaker Type | MCB | |
Width | 17.5mm | |
Length | 88mm | |
Mounting Style | DIN Rail Mount | |
Depth | 69mm | |
Model Number | 1492-D2C250 | |
Select all | ||
---|---|---|
Brand Allen Bradley | ||
Number of Poles 2 | ||
Current Rating 25A | ||
Tripping Characteristics Type C | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range 1492-D2 | ||
Series 1492-D | ||
Circuit Breaker Type MCB | ||
Width 17.5mm | ||
Length 88mm | ||
Mounting Style DIN Rail Mount | ||
Depth 69mm | ||
Model Number 1492-D2C250 | ||
RoHS Status: Not Applicable
The Rockwell Automation 1492-D series miniature circuit breakers provide overcurrent and short circuit protection for higher voltage DC circuits. It has two pole and current rating of 25 may be used with UL 508 Listed bus bars for convenience in panel assembly, a wide range of left-, right- and space saving bottom-mount accessories, and lock out attachments for safety during maintenance.
Dual terminals provide a more secure connection of up to four wires, or two wires and a bus bar
Existing installations can be easily upgraded to include an auxiliary using the bottom mounted auxiliary contact options, which require no DIN Rail space
Installation of up to six accessories on the same circuit breaker
Superior shock and vibration resistance to prevent nuisance tripping
Terminal design helps prevent wiring misses by directing wires into the terminal openings, even while tightening
RoHS compliant and fully-recyclable device
Existing installations can be easily upgraded to include an auxiliary using the bottom mounted auxiliary contact options, which require no DIN Rail space
Installation of up to six accessories on the same circuit breaker
Superior shock and vibration resistance to prevent nuisance tripping
Terminal design helps prevent wiring misses by directing wires into the terminal openings, even while tightening
RoHS compliant and fully-recyclable device
