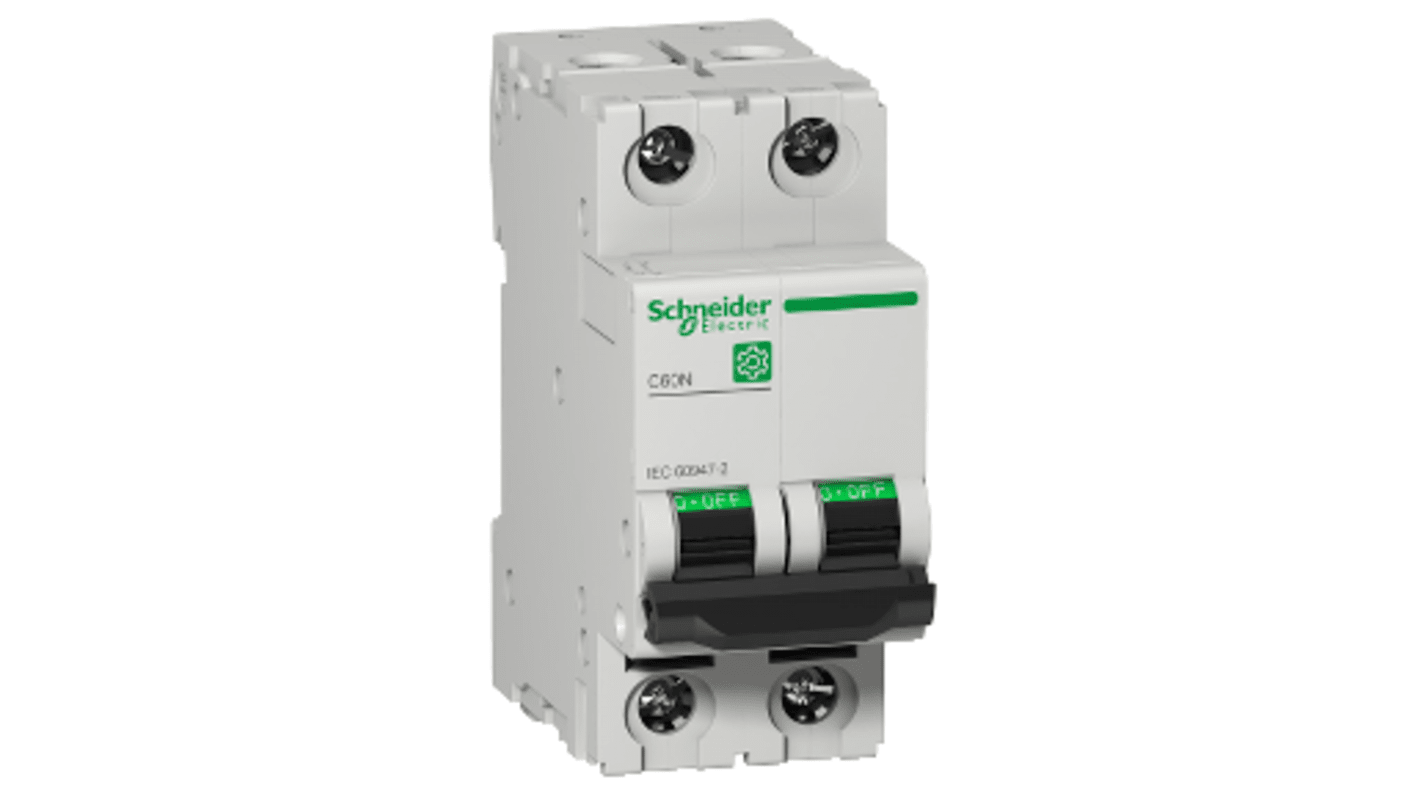

Schneider Electric Multi 9 C60N MCB, 2P, 3A Curve C, 10 kA Breaking Capacity
- RS Stock No.:
- 214-2062
- Distrelec Article No.:
- 304-23-467
- Mfr. Part No.:
- M9F11203
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£84.02
(exc. VAT)
£100.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £84.02 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 214-2062
- Distrelec Article No.:
- 304-23-467
- Mfr. Part No.:
- M9F11203
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Number of Poles | 2 | |
Current Rating | 3A | |
Tripping Characteristics | Type C | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | Multi 9 | |
Series | C60N | |
Circuit Breaker Type | MCB | |
Length | 81mm | |
Width | 36mm | |
Mounting Style | DIN Rail Mount | |
Depth | 72mm | |
Better World Product | Yes | |
Better World Verification | Green Premium | |
Tripping Mechanism | Thermal-Magnetic | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Number of Poles 2 | ||
Current Rating 3A | ||
Tripping Characteristics Type C | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range Multi 9 | ||
Series C60N | ||
Circuit Breaker Type MCB | ||
Length 81mm | ||
Width 36mm | ||
Mounting Style DIN Rail Mount | ||
Depth 72mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Tripping Mechanism Thermal-Magnetic | ||
- COO (Country of Origin):
- BG
Schneider Electric M9F11203
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 3A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
The Schneider Electric C60N series have MCB having 3 amp rated operating current and its used for the distribution application. This MCB have thermal magnetic trip unit technology with C curve code. This MCB have toggle control type with din rail mounting.
IP degree of protection is IP20 and IP40
Ambient air temperature for operation is -30 to 70 °C
Ambient air temperature for operation is -30 to 70 °C
