Name: Schneider Electric Multi9 C60N Miniature Circuit Breaker, 2-Pole, 2A, Type C, 440V ac AC, 125 V dc DC, 10 kA Breaking
Brand: Schneider Electric
SKU: 214-2060
Price: 100.82 GBP
Availability: InStock

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Miniature Circuit Breaker
	Number of Poles	2
	Current Rating	2A
	Tripping Characteristics	Type C
	Rated AC Voltage	440V ac
	Rated DC Voltage	125V dc
	Breaking Capacity	10kA
	Mount Type	DIN Rail
	Range	Multi9
	Series	C60N
	Terminal Type	Tunnel
	IP Rating	IP20, IP40
	Width	36mm
	Height	81mm
	Standards/Approvals	EN/IEC 60947-2
	Depth	72mm
	Better World Product	Yes
	Tripping Mechanism	Thermal Magnetic

	Select all
	Brand Schneider Electric
	Product Type Miniature Circuit Breaker
	Number of Poles 2
	Current Rating 2A
	Tripping Characteristics Type C
	Rated AC Voltage 440V ac
	Rated DC Voltage 125V dc
	Breaking Capacity 10kA
	Mount Type DIN Rail
	Range Multi9
	Series C60N
	Terminal Type Tunnel
	IP Rating IP20, IP40
	Width 36mm
	Height 81mm
	Standards/Approvals EN/IEC 60947-2
	Depth 72mm
	Better World Product Yes
	Tripping Mechanism Thermal Magnetic

Login to download CAD Models

COO (Country of Origin):: BG

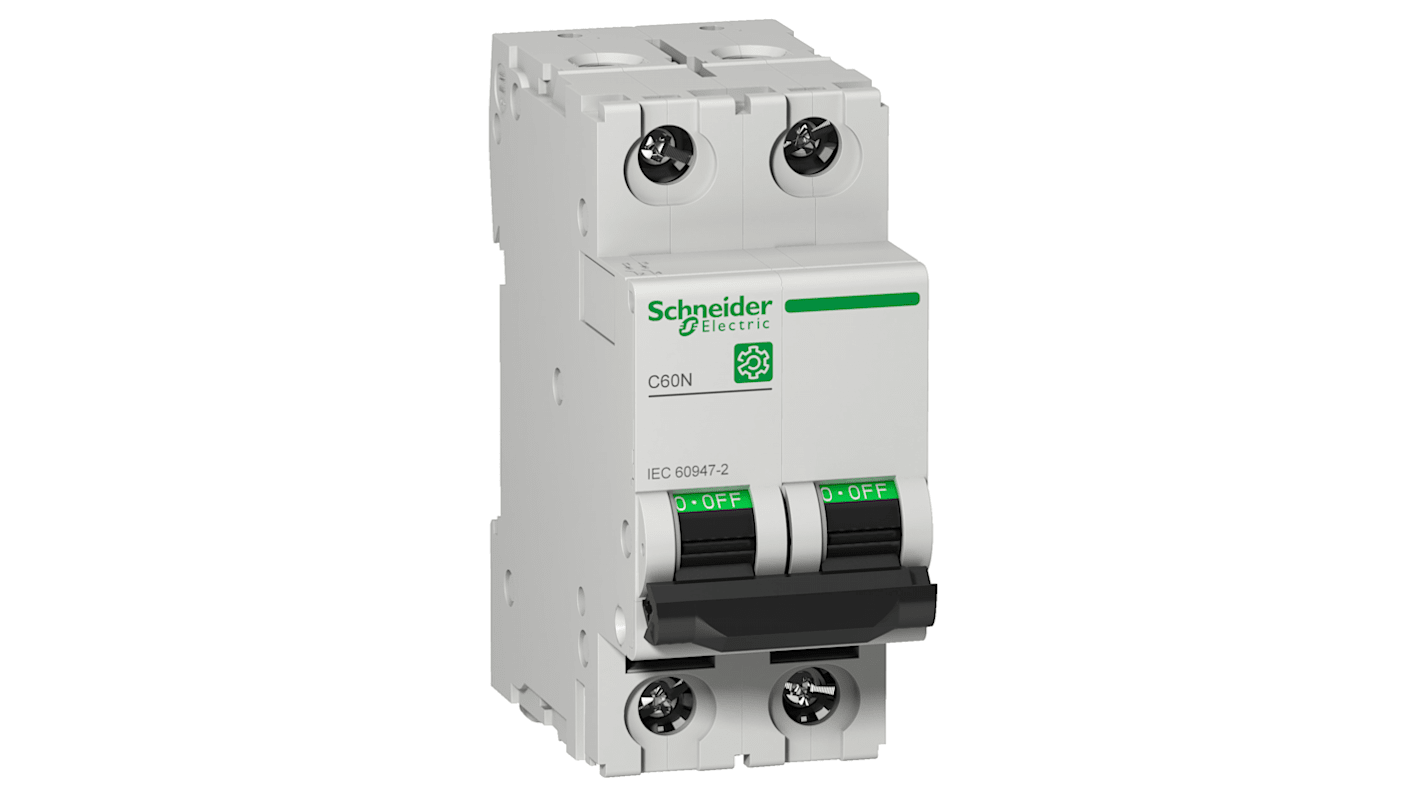

Schneider Electric C60N Series MCB, 2 Pole, 2A Current Rating - M9F11202

This miniature circuit breaker (MCB) is designed for efficient electrical distribution, particularly in automation and industrial applications. The 2 Pole MCB features a current rating of 2A and is housed within a compact design measuring 36mm in width, 81mm in height, and 72mm in depth. Engineered by Schneider Electric, delivering reliable performance and robust protection for electrical circuits.

Features & Benefits

• 10kA breaking capacity ensures effective circuit protection

• Thermal magnetic technology provides reliable tripping mechanisms

• Clip-on mounting allows for easy installation on DIN rail

• Padlockable provision enhances operational safety and security

Applications

• Used with distribution boards in residential installations

• Used in automation systems for safeguarding electrical equipment

• Suitable for protecting machinery in industrial environments

• Suitable for both AC and DC networks to enhance versatility

What is the operational voltage range for this device?

This device operates at a rated operational voltage of 240V AC and can accommodate up to 415V AC across phases.

Can it be used in environments with high humidity?

Yes, it can function in conditions with relative humidity up to 95% at 55°C, making it suitable for various environments.

How does the device protect against overload and short circuits?

The thermal-magnetic mechanism ensures that the circuit breaker trips automatically in the event of prolonged overload or short circuit conditions, effectively protecting the connected circuit.

What is the expected mechanical durability of this circuit breaker?

It can withstand 20,000 mechanical cycles, ensuring a long lifespan under regular operational conditions.
