- RS Stock No.:
- 213-1085
- Mfr. Part No.:
- 5SY6506-7
- Brand:
- Siemens
Available to back order for despatch 02/05/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£48.12
(exc. VAT)
£57.74
(inc. VAT)
Units | Per unit |
1 + | £48.12 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 213-1085
- Mfr. Part No.:
- 5SY6506-7
- Brand:
- Siemens
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

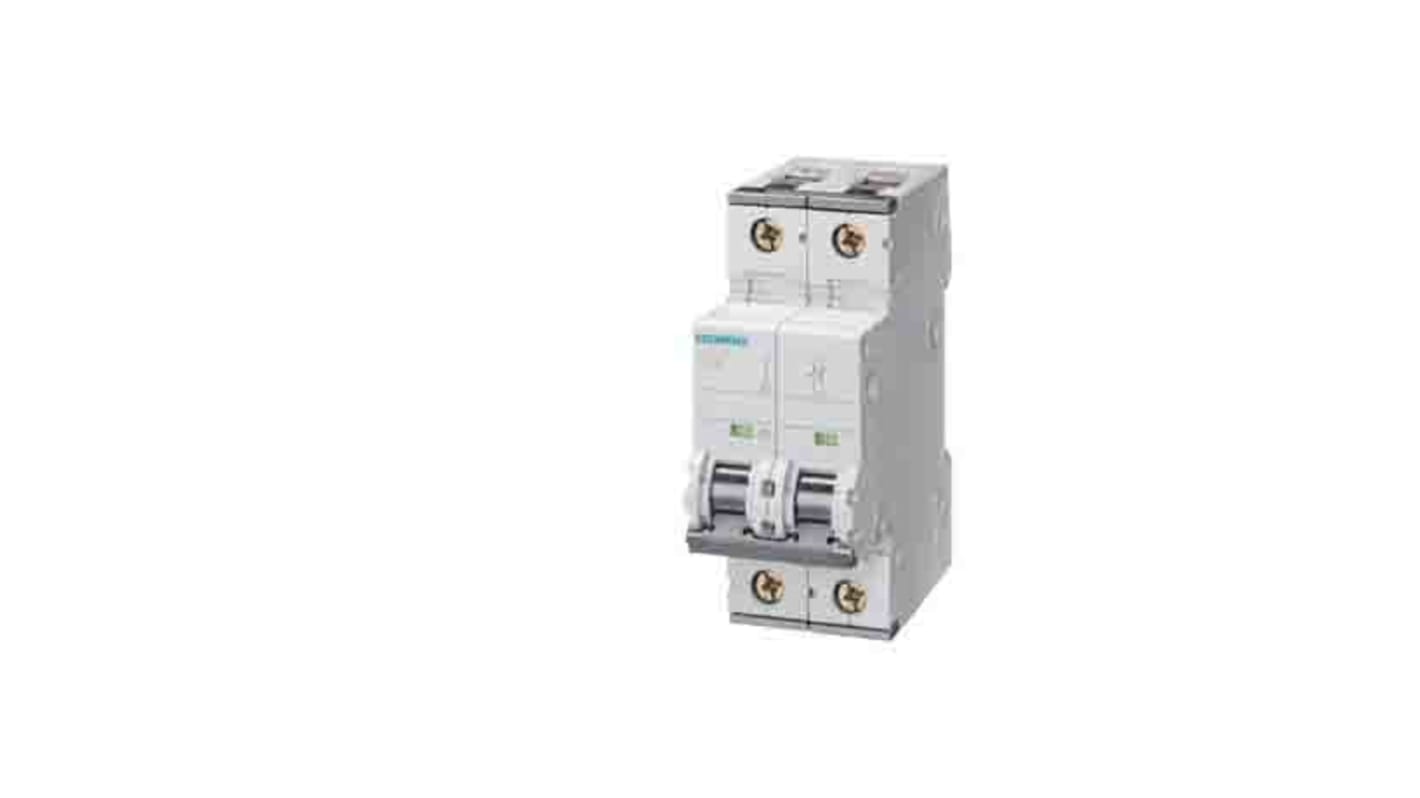

The Siemens 5SY6506-7 Miniature Circuit Breakers operate at 72 V DC and 6 A at AC. It has switching capacity of 6 kA according to EN 60898. These are ideal for application in large non-residential buildings and in industries.
Properties for main switches in accordance with EN 60204-1.
Halogen-free.
Number of poles- 2
Halogen-free.
Number of poles- 2
Specifications
Attribute | Value |
---|---|
Number of Poles | 1P+N |
Current Rating | 6A |
Tripping Characteristics | Type C |
Rated AC Voltage | 230V |
Rated DC Voltage | 72V |
Breaking Capacity at Maximum Voltage Rating | 5 kA |
Range | SENTRON |
Series | 5SY6 |
Circuit Breaker Type | MCB |
Width | 36mm |
Length | 90mm |
Mounting Style | DIN Rail Mount |
Depth | 76mm |
Model Number | 5SY6506-7 |
Better World Claim | Designed for disassembly, Extended product life |
Better World Product | Yes |
Terminal Contact Type | Screw |
