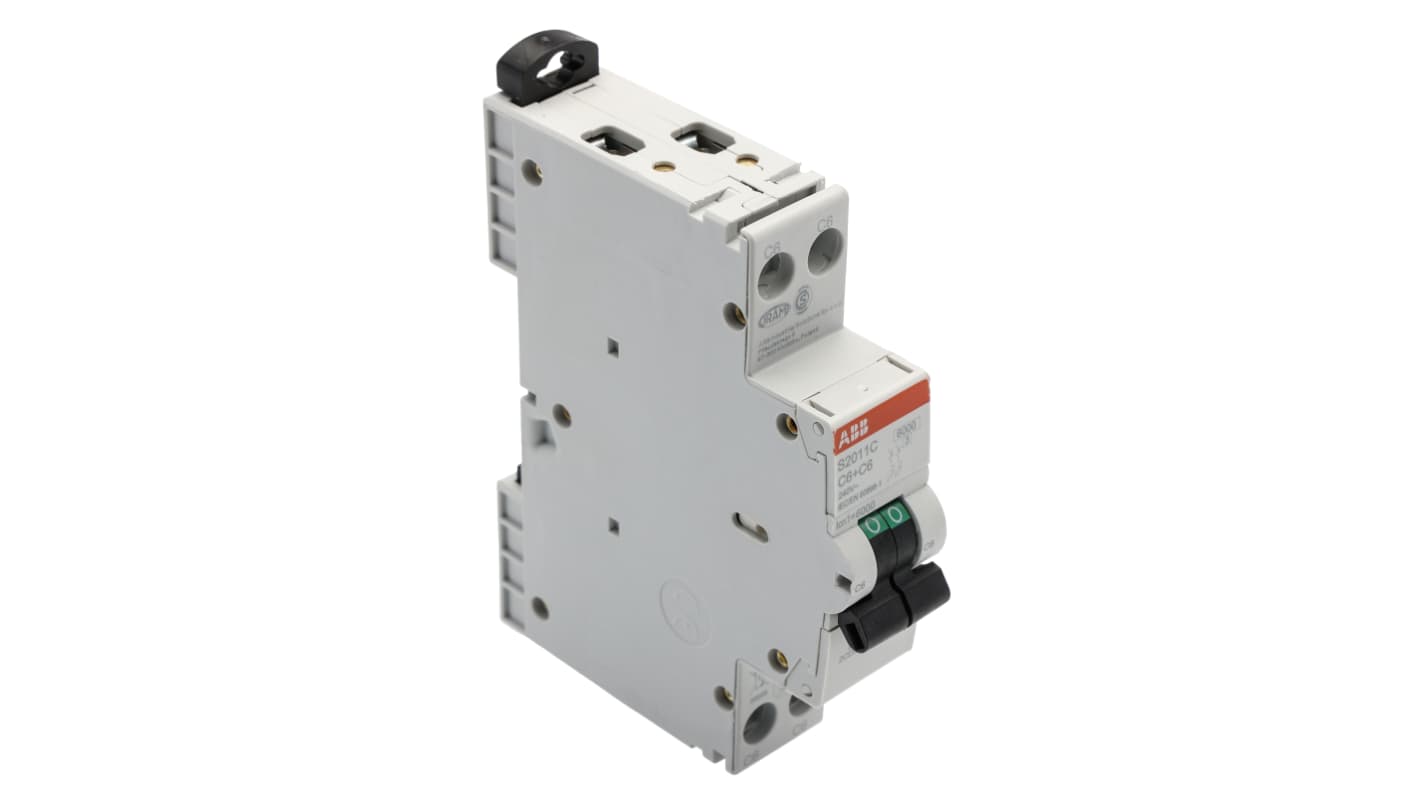

ABB S200C MCB, 2P, 6A Curve C, 240V AC, 6 kA Breaking Capacity
- RS Stock No.:
- 212-1603
- Mfr. Part No.:
- 2CDS251281R0064
- Brand:
- ABB
Subtotal (1 unit)*
£40.88
(exc. VAT)
£49.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £40.88 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 212-1603
- Mfr. Part No.:
- 2CDS251281R0064
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 2 | |
| Current Rating | 6A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 240V | |
| Breaking Capacity at Maximum Voltage Rating | 6 kA | |
| Series | S200C | |
| Circuit Breaker Type | MCB | |
| Width | 18mm | |
| Length | 70mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 70mm | |
| Model Number | S2011C-C6 | |
| Better World Product | Yes | |
| Better World Claim | Designed for disassembly | |
| Special Features | Short Circuit Protection | |
| Reset Actuator Type | Toggle Switch | |
Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 2 | ||
Current Rating 6A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 240V | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Series S200C | ||
Circuit Breaker Type MCB | ||
Width 18mm | ||
Length 70mm | ||
Mounting Style DIN Rail Mount | ||
Depth 70mm | ||
Model Number S2011C-C6 | ||
Better World Product Yes | ||
Better World Claim Designed for disassembly | ||
Special Features Short Circuit Protection | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- PL
ABB S200C Series MCB, 6A Current Rating, DIN Rail Mounting Style - 2CDS251281R0064
This compact MCB from ABB is a reliable circuit breaker with a breaking capacity of 6kA. It is designed for easy installation on DIN rail, making it suitable for various applications in the electronic and electrical industries.
Features & Benefits
• Toggle switch reset actuator for easy operation
• Type C tripping characteristics for effective protection
• Compact dimensions suitable for space-saving installations
• 2 Pole design for versatile applications
• Rated AC voltage of 240V for standard usage
• Type C tripping characteristics for effective protection
• Compact dimensions suitable for space-saving installations
• 2 Pole design for versatile applications
• Rated AC voltage of 240V for standard usage
Applications
• Ideal for residential and commercial electrical • Can be used for installations requiring a compact circuit breaker solution
• Suitable for use in marine and traction segments
• Suitable for use in marine and traction segments
Can this MCB be used in residential settings?
Yes, this MCB is ideal for residential applications due to its compact size and reliable performance.
Will this MCB fit standard DIN rails?
Yes, it is designed for easy mounting on DIN rails, ensuring easy installation.
Is the breaking capacity of 6kA sufficient for most applications?
Yes, the 6kA breaking capacity makes this MCB suitable for protecting against overloads and short-circuits in various settings.
