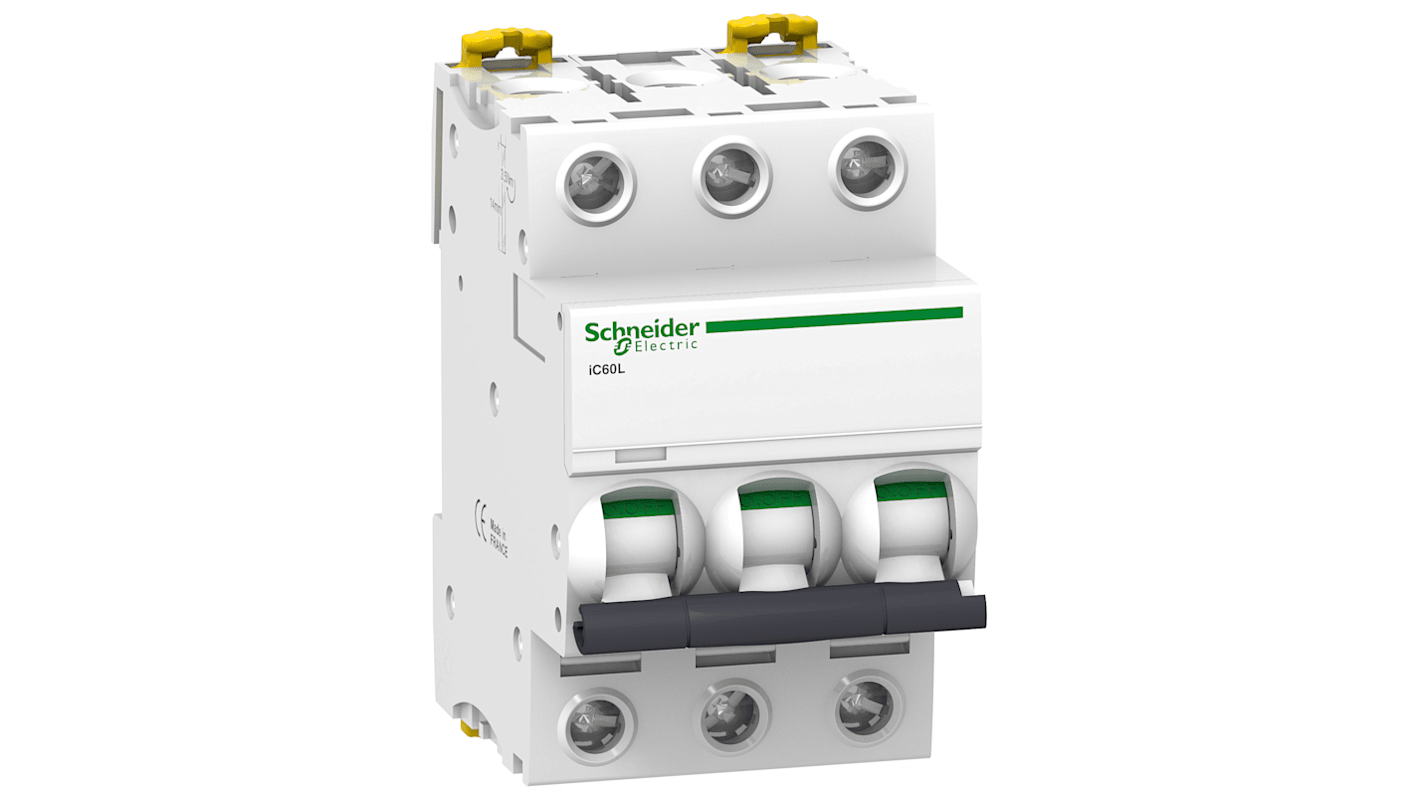

Schneider Electric Acti 9 IC60L MCB, 3P, 20A Curve K, 400V AC, 180V DC, 20 kA, 15 kA Breaking Capacity
- RS Stock No.:
- 212-0146
- Mfr. Part No.:
- A9F95320
- Brand:
- Schneider Electric
1 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£221.15
(exc. VAT)
£265.38
(inc. VAT)
| Units | Per unit |
| 1 + | £221.15 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 212-0146
- Mfr. Part No.:
- A9F95320
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
The Schneider Electric Acti 9 iC60L - miniature circuit breaker - with Magnetic Trip Unit Technology. Used in Distribution Application. Toggle-Control type & Trip indicator Local signalling. Without Earth Leakage Protection. Overvoltage category IV & it comes with various Environmental standard characteristics protections like Tropicalisation 2 conforming to IEC 60068-1, Pollution degree 3 conforming to EN 60947-2 &3 conforming to IEC 60947-2.
Mechanical durability-20000 cycles
Electrical durability-10000 cycles
Electrical durability-10000 cycles
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 3P |
| Current Rating | 20A |
| Tripping Characteristics | Type K |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 180V |
| Breaking Capacity at Maximum Voltage Rating | 20 kA, 15 kA |
| Range | Acti 9 |
| Series | IC60L |
| Circuit Breaker Type | MCB |
| Length | 85mm |
| Width | 54mm |
| Mounting Style | DIN Rail Mount |
| Depth | 78.5mm |
| Model Number | Acti 9 iC60 |
| Better World Product | Yes |
| Better World Verification | Green Premium |
| Reset Actuator Type | Toggle Switch |
| Tripping Mechanism | Thermal-Magnetic |
