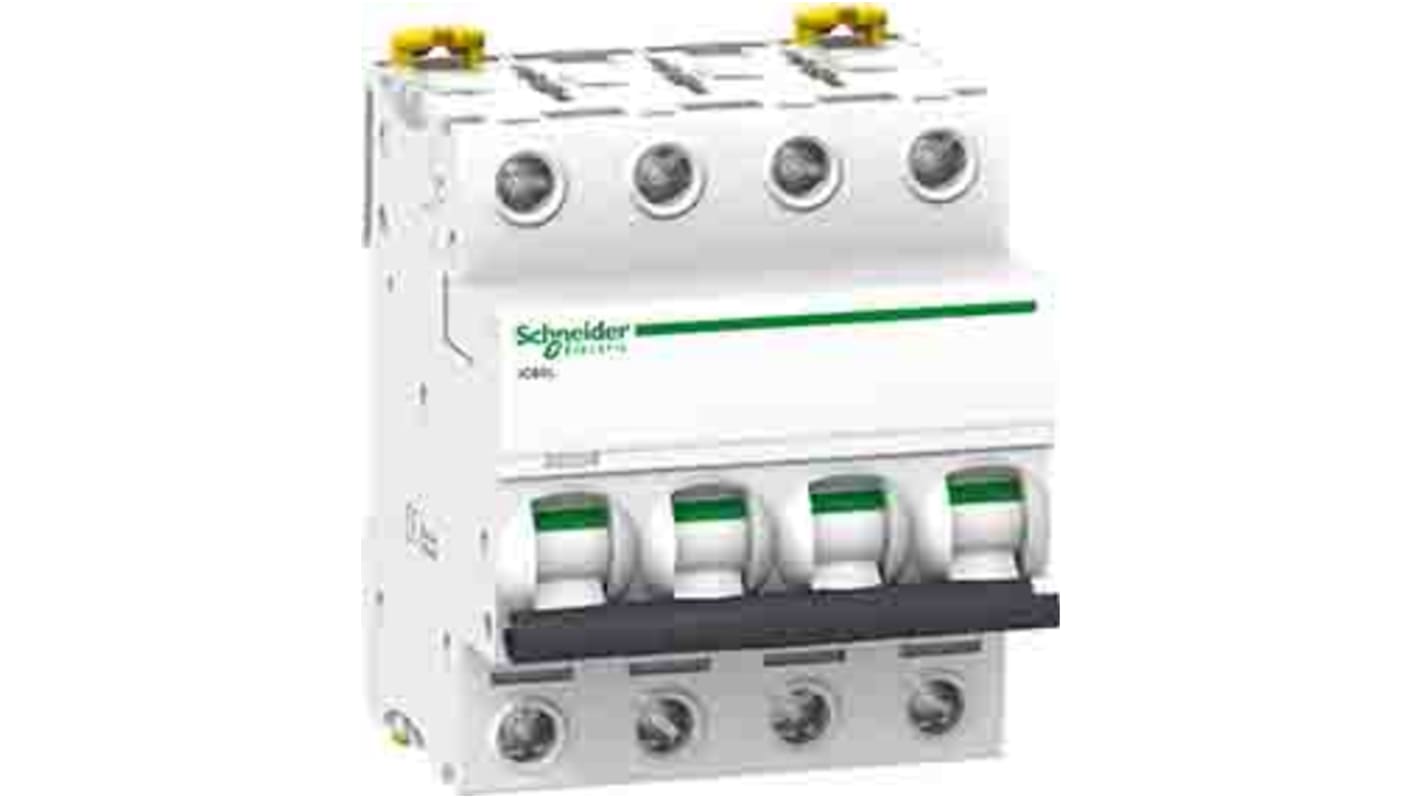

Schneider Electric Acti9 A9F9 Miniature Circuit Breaker, 4-Pole, 40 A, Type Z, 400 V ac AC, 250 V DC, 25 kA Breaking
- RS Stock No.:
- 211-2498
- Mfr. Part No.:
- A9F92440
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£397.94
(exc. VAT)
£477.53
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £397.94 |
*price indicative
- RS Stock No.:
- 211-2498
- Mfr. Part No.:
- A9F92440
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Poles | 4 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 40 A | |
| Tripping Characteristics | Type Z | |
| Rated AC Voltage | 400 V ac | |
| Rated DC Voltage | 250 V | |
| Breaking Capacity | 25kA | |
| Mount Type | DIN Rail | |
| Range | Acti9 | |
| Series | A9F9 | |
| Terminal Type | Single Terminal | |
| IP Rating | IP20, IP40 | |
| Height | 85mm | |
| Width | 72 mm | |
| Standards/Approvals | EN 60947-2, IEC 60947-2 | |
| Depth | 78.5mm | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Poles 4 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 40 A | ||
Tripping Characteristics Type Z | ||
Rated AC Voltage 400 V ac | ||
Rated DC Voltage 250 V | ||
Breaking Capacity 25kA | ||
Mount Type DIN Rail | ||
Range Acti9 | ||
Series A9F9 | ||
Terminal Type Single Terminal | ||
IP Rating IP20, IP40 | ||
Height 85mm | ||
Width 72 mm | ||
Standards/Approvals EN 60947-2, IEC 60947-2 | ||
Depth 78.5mm | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- FR
The Schneider Electric iC60L series AC/DC miniature circuit breaker having 4 Pole integrated with Thermal-magnetic tripping technology.
Green Premium product
Thermal-magnetic trip unit technology
DIN rail mounting support
