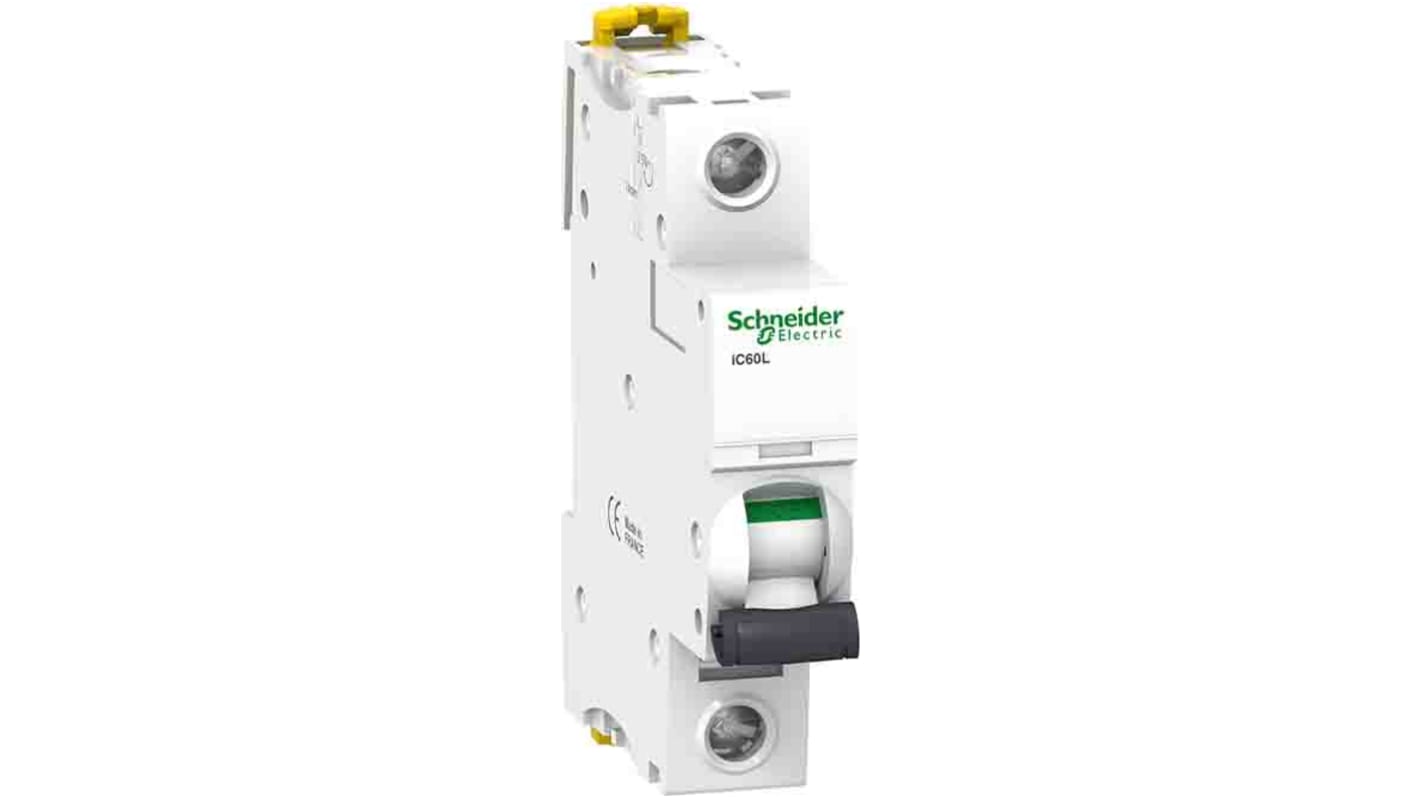

Schneider Electric Acti9 A9F9 Miniature Circuit Breaker, 1-Pole, 10 A, Type Z, 230 V ac AC, 72 V DC, 15000 A Breaking
- RS Stock No.:
- 211-2484
- Mfr. Part No.:
- A9F92110
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£93.56
(exc. VAT)
£112.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £93.56 |
*price indicative
- RS Stock No.:
- 211-2484
- Mfr. Part No.:
- A9F92110
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 10 A | |
| Tripping Characteristics | Type Z | |
| Rated AC Voltage | 230 V ac | |
| Rated DC Voltage | 72 V | |
| Mount Type | Fixed | |
| Breaking Capacity | 15000A | |
| Range | Acti9 | |
| Series | A9F9 | |
| Terminal Type | Single Terminal | |
| IP Rating | IP20 | |
| Width | 18 mm | |
| Standards/Approvals | EN 60529, EN 60898-1, EN 60947-2, IEC 60529 (multiple), IEC 60898-1, IEC 60947-2 | |
| Depth | 78.5mm | |
| Height | 85mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 10 A | ||
Tripping Characteristics Type Z | ||
Rated AC Voltage 230 V ac | ||
Rated DC Voltage 72 V | ||
Mount Type Fixed | ||
Breaking Capacity 15000A | ||
Range Acti9 | ||
Series A9F9 | ||
Terminal Type Single Terminal | ||
IP Rating IP20 | ||
Width 18 mm | ||
Standards/Approvals EN 60529, EN 60898-1, EN 60947-2, IEC 60529 (multiple), IEC 60898-1, IEC 60947-2 | ||
Depth 78.5mm | ||
Height 85mm | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- FR
The Schneider Electric iC60L series miniature circuit breaker having 1 Pole integrated with Thermal-magnetic tripping technology.
Green Premium product
Thermal-magnetic trip unit technology
DIN rail mounting support
