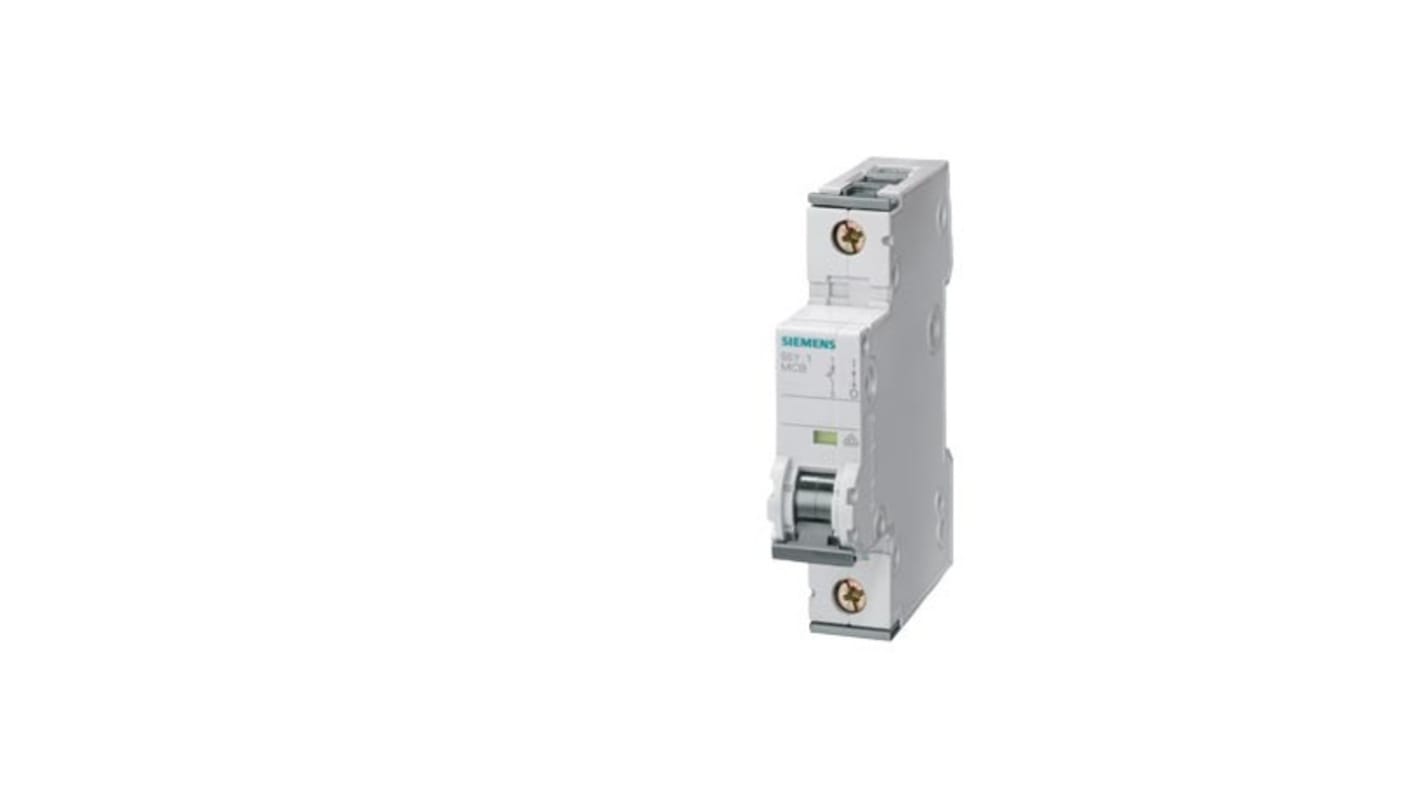

Siemens SENTRON 5SY7 MCB, 1P, 63A Curve C, 400V AC, 72V DC, 15 kA Breaking Capacity
- RS Stock No.:
- 209-6038
- Mfr. Part No.:
- 5SY7163-7
- Brand:
- Siemens
Available to back order for despatch 09/07/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£52.08
(exc. VAT)
£62.50
(inc. VAT)
| Units | Per unit |
| 1 + | £52.08 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 209-6038
- Mfr. Part No.:
- 5SY7163-7
- Brand:
- Siemens
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The Siemens 5SY7163-7 Miniature Circuit Breakers operate at 72 V DC and 63 A at AC. It has switching capacity of 15 kA according to EN 60898. These are ideal for application in large non-residential buildings and in industries.
Properties for main switches in accordance with EN 60204-1.
Halogen-free.
Number of poles- 1
Halogen-free.
Number of poles- 1
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 1P |
| Current Rating | 63A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 72V |
| Breaking Capacity at Maximum Voltage Rating | 15 kA |
| Range | SENTRON |
| Series | 5SY7 |
| Circuit Breaker Type | MCB |
| Width | 76mm |
| Length | 18mm |
| Mounting Style | DIN Rail Mount |
| Depth | 90mm |
| Model Number | 5SY7163-7 |
| Better World Product | Yes |
| Better World Claim | Designed for disassembly, Extended product life |
| Terminal Contact Type | Screw |
