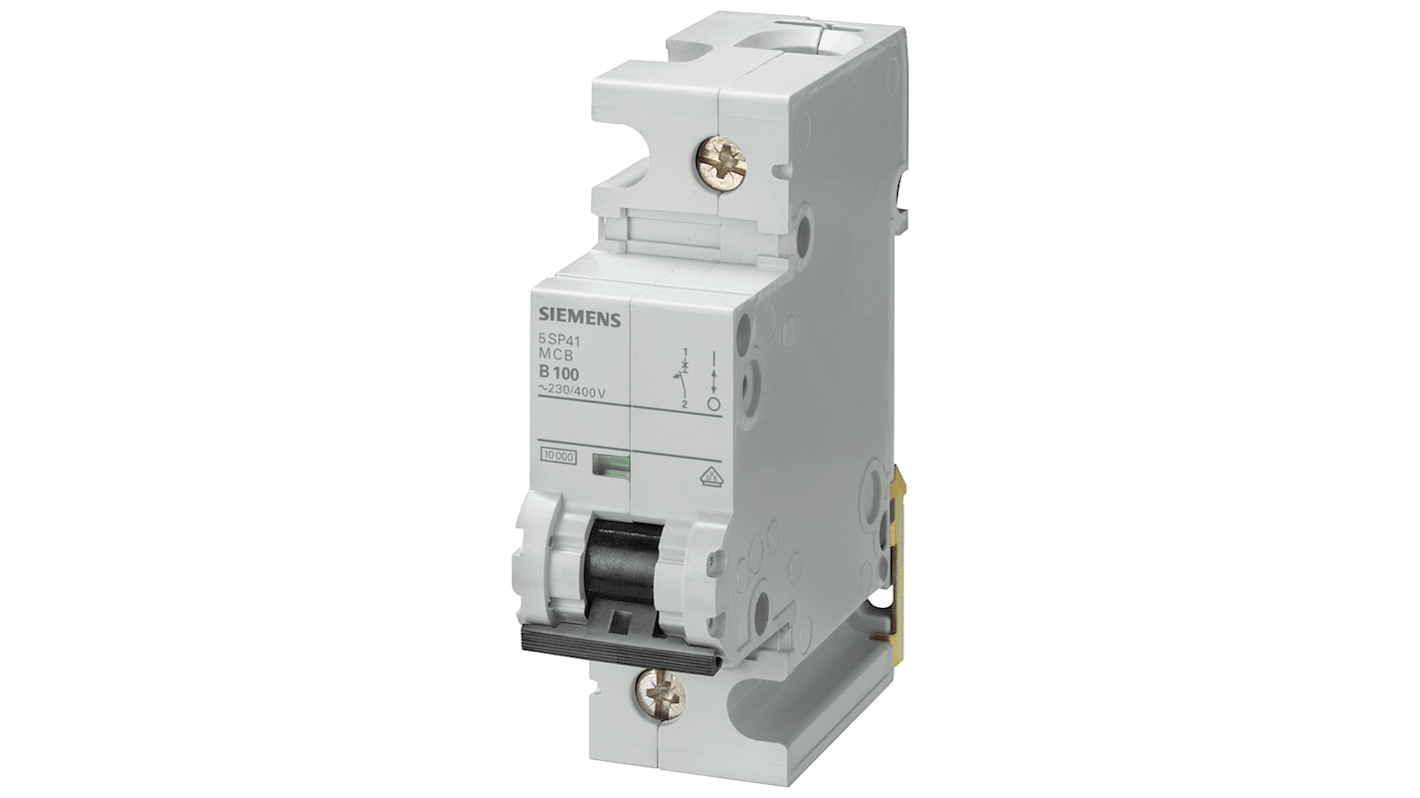

Siemens SENTRON 5SP4 MCB, 1P, 100A Curve C, 400V AC, 10 kA Breaking Capacity
- RS Stock No.:
- 209-6000
- Mfr. Part No.:
- 5SP4191-7
- Brand:
- Siemens
Subtotal (1 unit)*
£57.90
(exc. VAT)
£69.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £57.90 |
*price indicative
- RS Stock No.:
- 209-6000
- Mfr. Part No.:
- 5SP4191-7
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Number of Poles | 1 | |
Current Rating | 100A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 400V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | SENTRON | |
Series | 5SP4 | |
Circuit Breaker Type | MCB | |
Width | 76mm | |
Length | 18mm | |
Mounting Style | DIN Rail Mount | |
Depth | 90mm | |
Model Number | 5SP4191-7 | |
Terminal Contact Type | Screw | |
Special Features | IP20 Terminal Protection | |
Select all | ||
---|---|---|
Brand Siemens | ||
Number of Poles 1 | ||
Current Rating 100A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range SENTRON | ||
Series 5SP4 | ||
Circuit Breaker Type MCB | ||
Width 76mm | ||
Length 18mm | ||
Mounting Style DIN Rail Mount | ||
Depth 90mm | ||
Model Number 5SP4191-7 | ||
Terminal Contact Type Screw | ||
Special Features IP20 Terminal Protection | ||
- COO (Country of Origin):
- SI
Siemens MCB, DIN Rail Mounting, Halogen-Free - SENTRON Series - 5SP4191-7
Keen to find a breaking solution to protect your critical circuits? Choose this MCB from Siemens. It shuts down a circuit if too much current is supplied, stopping the flow of electricity to shield people from harm and equipment from damage. As this is a type-C breaker, it promptly cuts the electrical supply if it receives between five and ten times its rated load of 100A. This makes it handy when you're working with inductive loads with high switching surges, so it's a practical pick for use with your motors and fluorescent lights.
Features & Benefits
• Straightforward single-pole device for breaking a single circuit
• Easy-to-use screw terminals achieve a robust electrical connection
• Handles solid or stranded conductors from 25 to 50mm² or 3 to 1AWG, so it's widely compatible with commonly used cabling
• Mechanical service life of 10,000 cycles means it's a long-lasting option
• IP20 rating indicates it's touch-proof to boost workplace safety
• Easy-to-use screw terminals achieve a robust electrical connection
• Handles solid or stranded conductors from 25 to 50mm² or 3 to 1AWG, so it's widely compatible with commonly used cabling
• Mechanical service life of 10,000 cycles means it's a long-lasting option
• IP20 rating indicates it's touch-proof to boost workplace safety
How do I mount this MCB?
Thanks to its handy snap-on mounting style, it's easy to install this MCB on a 35mm DIN rail without any tools.
