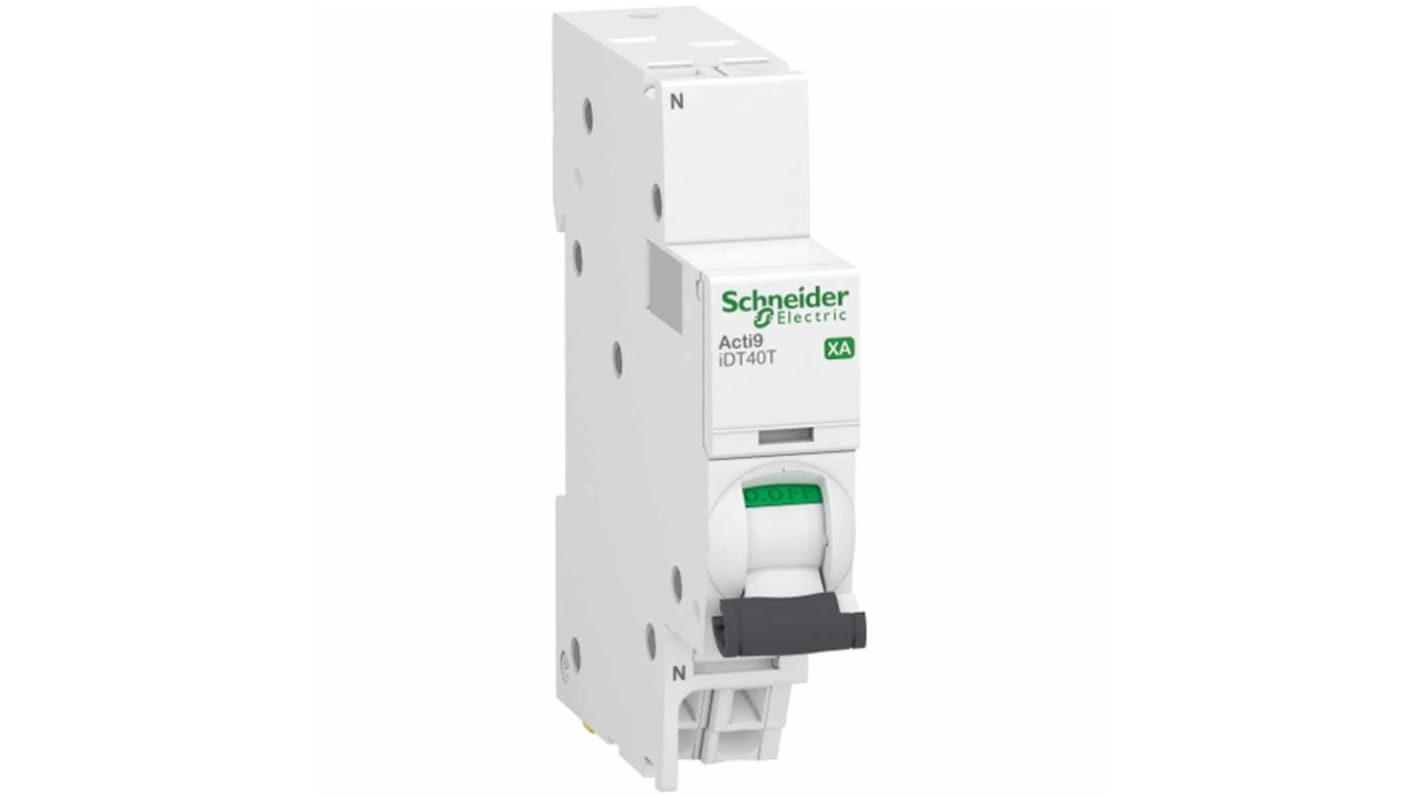

Schneider Electric Acti 9 IDT40T XA MCB, 1P, 16A Curve C, 230V AC, 7.5 kA Breaking Capacity
- RS Stock No.:
- 200-6169
- Mfr. Part No.:
- A9PA2616
- Brand:
- Schneider Electric
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£27.72
(exc. VAT)
£33.26
(inc. VAT)
| Units | Per unit |
| 1 + | £27.72 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 200-6169
- Mfr. Part No.:
- A9PA2616
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details
The Schneider Electric miniature circuit breaker combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with TN and IT neutral systems. The circuit breaker is fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. ACTi 9 is fully tested, approved and certified by national and international third parties.
Trip unit technology Thermal-magnetic
Poles description 1P + N
Number of protected poles 1
Neutral position Left
Poles description 1P + N
Number of protected poles 1
Neutral position Left
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 1P |
| Current Rating | 16A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 230V |
| Breaking Capacity at Maximum Voltage Rating | 7.5 kA |
| Range | Acti 9 |
| Series | IDT40T XA |
| Circuit Breaker Type | Residential MCB |
| Width | 18mm |
| Length | 85mm |
| Mounting Style | DIN Rail Mount |
| Depth | 74mm |
| Model Number | IDD40T XA |
| Better World Product | Yes |
| Better World Verification | Green Premium |
| Reset Actuator Type | Toggle Switch |
| Tripping Mechanism | Thermal-Magnetic |
