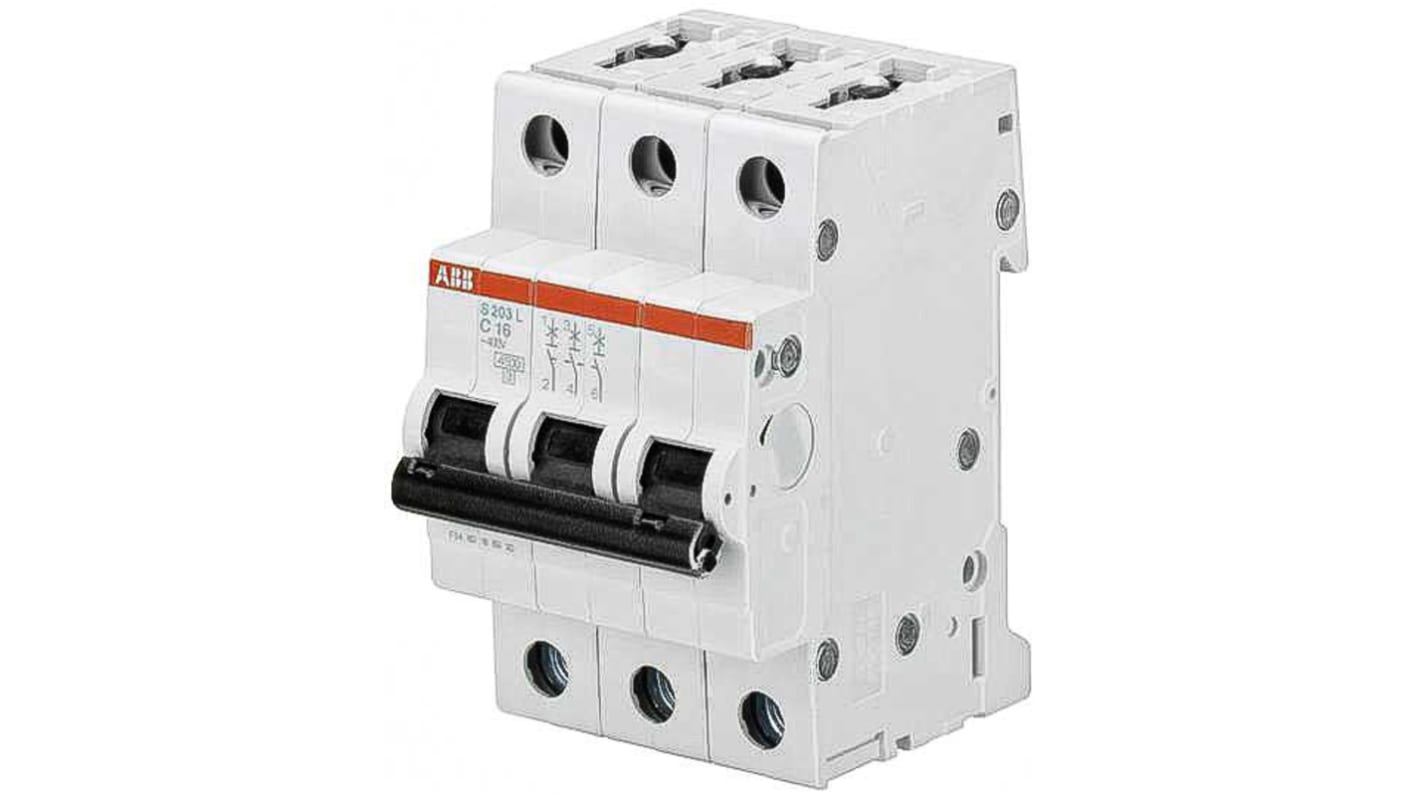

ABB System Pro M Compact S200L MCB, 3P, 16A Curve C, 400V AC, 6 kA Breaking Capacity
- RS Stock No.:
- 189-5644
- Mfr. Part No.:
- 2CDS243701R0164
- Brand:
- ABB
Subtotal (1 unit)*
£55.49
(exc. VAT)
£66.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £55.49 |
*price indicative
- RS Stock No.:
- 189-5644
- Mfr. Part No.:
- 2CDS243701R0164
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 3 | |
Current Rating | 16A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 400V | |
Breaking Capacity at Maximum Voltage Rating | 6 kA | |
Range | System Pro M Compact | |
Series | S200L | |
Circuit Breaker Type | MCB | |
Length | 69mm | |
Width | 52.5mm | |
Mounting Style | DIN Rail Mount | |
Depth | 88mm | |
Model Number | S203L-C16 | |
Terminal Contact Type | Screw | |
Reset Actuator Type | Toggle Switch | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Current Rating 16A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400V | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Range System Pro M Compact | ||
Series S200L | ||
Circuit Breaker Type MCB | ||
Length 69mm | ||
Width 52.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 88mm | ||
Model Number S203L-C16 | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
ABB System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electro mechanic tripping mechanism for short circuit protection. All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space
•Extra-wide and complete range of MCBs to cover most applications and markets
•Space and time saving thanks to the unique bottom-fixing auxiliary contact
•Meeting worldwide standards
•For domestic or small commercial installations up to 6 kA breaking capacity
•IEC/EN 60898-1, IEC/EN 60947-2
•A wide range of accessories is available!
