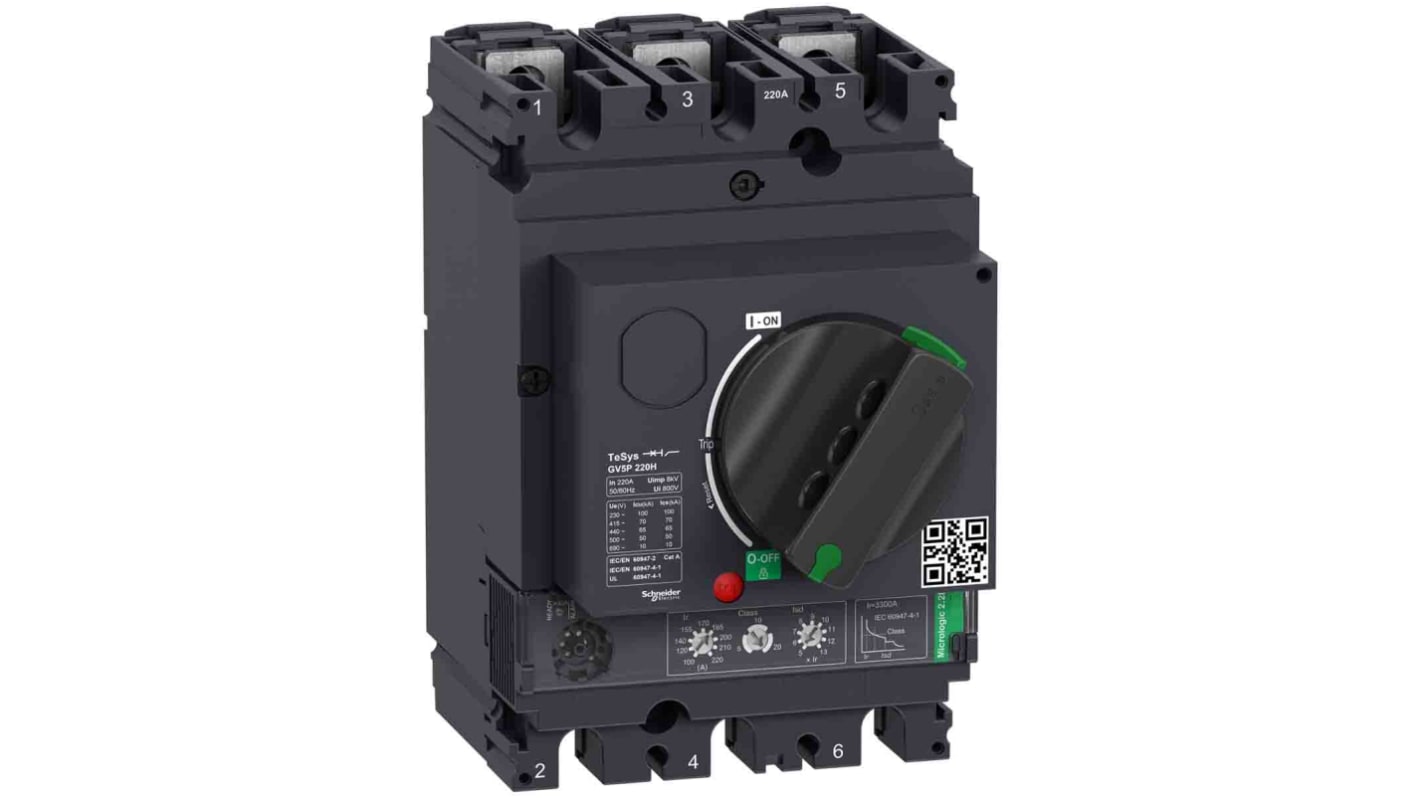

Schneider Electric TeSys GV5P MCB, 3P, 220A, 690V AC, 70 kA Breaking Capacity

RS Stock No.:: 188-4751
Mfr. Part No.:: GV5P220H
Brand:: Schneider Electric

Schneider Electric TeSys GV5P MCB, 3P, 220A, 690V AC, 70 kA Breaking Capacity

3 In stock - FREE next working day delivery available

Price Each

£891.34

(exc. VAT)

£1,069.61

(inc. VAT)

Units	Per unit
1 +	£891.34

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 188-4751
Mfr. Part No.:: GV5P220H
Brand:: Schneider Electric

Schneider Electric TeSys GV5 and GV6 TeSys Giga MCB Motor Circuit Breakers.

The TeSys range of MCB Motor circuit breakers GV5 and GV6, designed to protect motors from overloads, short circuits, phase unbalance and phase loss.

TeSys GV5 and GV6 are now part of the TeSys Giga range of circuit breakers. TeSys GV5 and GV6 are coordinated with TeSys Giga contactors. The TeSys Giga motor circuit breakers will give you even better protection and are perfect for demanding applications, combining advanced electronics and up to date electromechanical technology. Easily installed thanks to universal Screw fixing plus the automatic compensation for temperature changes and international standards compliance this motor circuit breaker provides excellent protection.

TeSys Giga GV5 and GV 6 MCB Features.

Choice of 4 x current ratings – 150 A, 220 A, 320 A, 500 A.

Advanced Micrologic trip unit (overload, short circuit, Phase loss and unbalance protection).

Adjustable overload protection (Ir): 50 to 100% x In, includes trip class selection (Class 5, 10 or 20)

Adjustable Short-time protection threshold (Isd): 5 to 13 x In with fixed time delay

Short-Circuit instantaneous protection (Ii): 15 x In (max rating of the trip unit)

Front LED indications: Green LED for pre-alarm before event of fault and Red LED for motor operation

Suitable for isolation, as per IEC standards

Control by direct rotary handle as standard, by door-mounted extended rotary handle as option

Connections: busbars/ cables with lugs

Compliance with standards: EN/IEC 60947-1; IEC 60947-2; IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1

Optional Thermal Fault module (SDTAM) to indicate over-load and to open contactor (before breaker tripping) in event of over-load or phase un-balance

Type 1 or type 2 short-circuit co-ordination, when combined with TeSys Giga contactors.

TeSys Giga GV5 and GV 6 MCB Applications.

Various application covering industry, infrastructure, and building, including:

Commercial property, construction, hospitals, facilities.

Utilities, Oil, Gas, Energy, Water, Waste-water treatment.

Machinery, materials handling, mining, metals, processing plants.

GV5P220H TeSys GV5P Motor Protection MCB Circuit Breaker.

Category A to IEC 60947-2.

Direct rotary handle / knob / switch.

Isolation to EN/IEC 60947-2.

Breaking capacity code H 70 kA.

Overvoltage category III.

Micrologic 2.2 M Trip unit (220 A, Electronic, 3300 A trip current).

Overload Class 5 conforming to IEC 60947-4-1, Class 10 conforming to IEC 60947-4-1, Class 20 conforming to IEC 60947-4-1.

Phase failure to IEC 60947-4-1.

Signals LED ready / LED 95% lth.

Mounts horizontally and vertically by screws.

Weight 2.6 kg.

Operating temperature -25°C to 70°C.

Colour of MCB is RAL 7016 – Anthracite.

Overload protection.

Short-circuit protection.

Instantaneous short-circuit protection.

Phase unbalance.

Phase loss.

Breaking Capacity.

70 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2.

50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2.

10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2.

Connection Terminals.

Power circuit: bars - busbar cross section: 25 x 6 mm.

Power circuit: lugs - external diameter: 25 mm.

Pitch 35 mm without spreaders.

Durability.

Mechanical 20,000 cycles.

Electrical 10,000 cycles or AC-3 at 400/415 V In.

Protection.

IP40 IEC 60529.

IK07 IEC 62262.

Fire resistant to 960 °C conforming to IEC 60695-2-1.

Vibration resistant to IEC 60068-2-6.

Approvals

IECEE CB Scheme.

Standards

EN/IEC 60947-1, EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1.

RS Stock No.:: 188-4751
Mfr. Part No.:: GV5P220H
Brand:: Schneider Electric

Schneider Electric TeSys GV5 and GV6 TeSys Giga MCB Motor Circuit Breakers.

The TeSys range of MCB Motor circuit breakers GV5 and GV6, designed to protect motors from overloads, short circuits, phase unbalance and phase loss.

TeSys Giga GV5 and GV 6 MCB Features.

Choice of 4 x current ratings – 150 A, 220 A, 320 A, 500 A.

Advanced Micrologic trip unit (overload, short circuit, Phase loss and unbalance protection).

Adjustable overload protection (Ir): 50 to 100% x In, includes trip class selection (Class 5, 10 or 20)

Adjustable Short-time protection threshold (Isd): 5 to 13 x In with fixed time delay

Short-Circuit instantaneous protection (Ii): 15 x In (max rating of the trip unit)

Front LED indications: Green LED for pre-alarm before event of fault and Red LED for motor operation

Suitable for isolation, as per IEC standards

Control by direct rotary handle as standard, by door-mounted extended rotary handle as option

Connections: busbars/ cables with lugs

Compliance with standards: EN/IEC 60947-1; IEC 60947-2; IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1

Optional Thermal Fault module (SDTAM) to indicate over-load and to open contactor (before breaker tripping) in event of over-load or phase un-balance

Type 1 or type 2 short-circuit co-ordination, when combined with TeSys Giga contactors.

TeSys Giga GV5 and GV 6 MCB Applications.

Various application covering industry, infrastructure, and building, including:

Commercial property, construction, hospitals, facilities.

Utilities, Oil, Gas, Energy, Water, Waste-water treatment.

Machinery, materials handling, mining, metals, processing plants.

GV5P220H TeSys GV5P Motor Protection MCB Circuit Breaker.

Category A to IEC 60947-2.

Direct rotary handle / knob / switch.

Isolation to EN/IEC 60947-2.

Breaking capacity code H 70 kA.

Overvoltage category III.

Micrologic 2.2 M Trip unit (220 A, Electronic, 3300 A trip current).

Overload Class 5 conforming to IEC 60947-4-1, Class 10 conforming to IEC 60947-4-1, Class 20 conforming to IEC 60947-4-1.

Phase failure to IEC 60947-4-1.

Signals LED ready / LED 95% lth.

Mounts horizontally and vertically by screws.

Weight 2.6 kg.

Operating temperature -25°C to 70°C.

Colour of MCB is RAL 7016 – Anthracite.

Overload protection.

Short-circuit protection.

Instantaneous short-circuit protection.

Phase unbalance.

Phase loss.

Breaking Capacity.

70 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2.

50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2.

10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2.

Connection Terminals.

Power circuit: bars - busbar cross section: 25 x 6 mm.

Power circuit: lugs - external diameter: 25 mm.

Pitch 35 mm without spreaders.

Durability.

Mechanical 20,000 cycles.

Electrical 10,000 cycles or AC-3 at 400/415 V In.

Protection.

IP40 IEC 60529.

IK07 IEC 62262.

Fire resistant to 960 °C conforming to IEC 60695-2-1.

Vibration resistant to IEC 60068-2-6.

Approvals

IECEE CB Scheme.

Standards

EN/IEC 60947-1, EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1.

Attribute	Value
Number of Poles	3P
Current Rating	220A
Rated AC Voltage	690V
Breaking Capacity at Maximum Voltage Rating	70 kA
Range	TeSys
Series	GV5P
Circuit Breaker Type	MCB
Length	105mm
Width	155mm
Mounting Style	DIN Rail Mount
Depth	161mm
Model Number	GV5P220H
Better World Product	Yes
Better World Verification	Green Premium
Terminal Contact Type	Screw
Break Time	Instantaneous
Reset Actuator Type	Handle
Tripping Mechanism	Thermal-Magnetic

Attribute	Value
Number of Poles	3P
Current Rating	220A
Rated AC Voltage	690V
Breaking Capacity at Maximum Voltage Rating	70 kA
Range	TeSys
Series	GV5P
Circuit Breaker Type	MCB
Length	105mm
Width	155mm
Mounting Style	DIN Rail Mount
Depth	161mm
Model Number	GV5P220H
Better World Product	Yes
Better World Verification	Green Premium
Terminal Contact Type	Screw
Break Time	Instantaneous
Reset Actuator Type	Handle
Tripping Mechanism	Thermal-Magnetic
