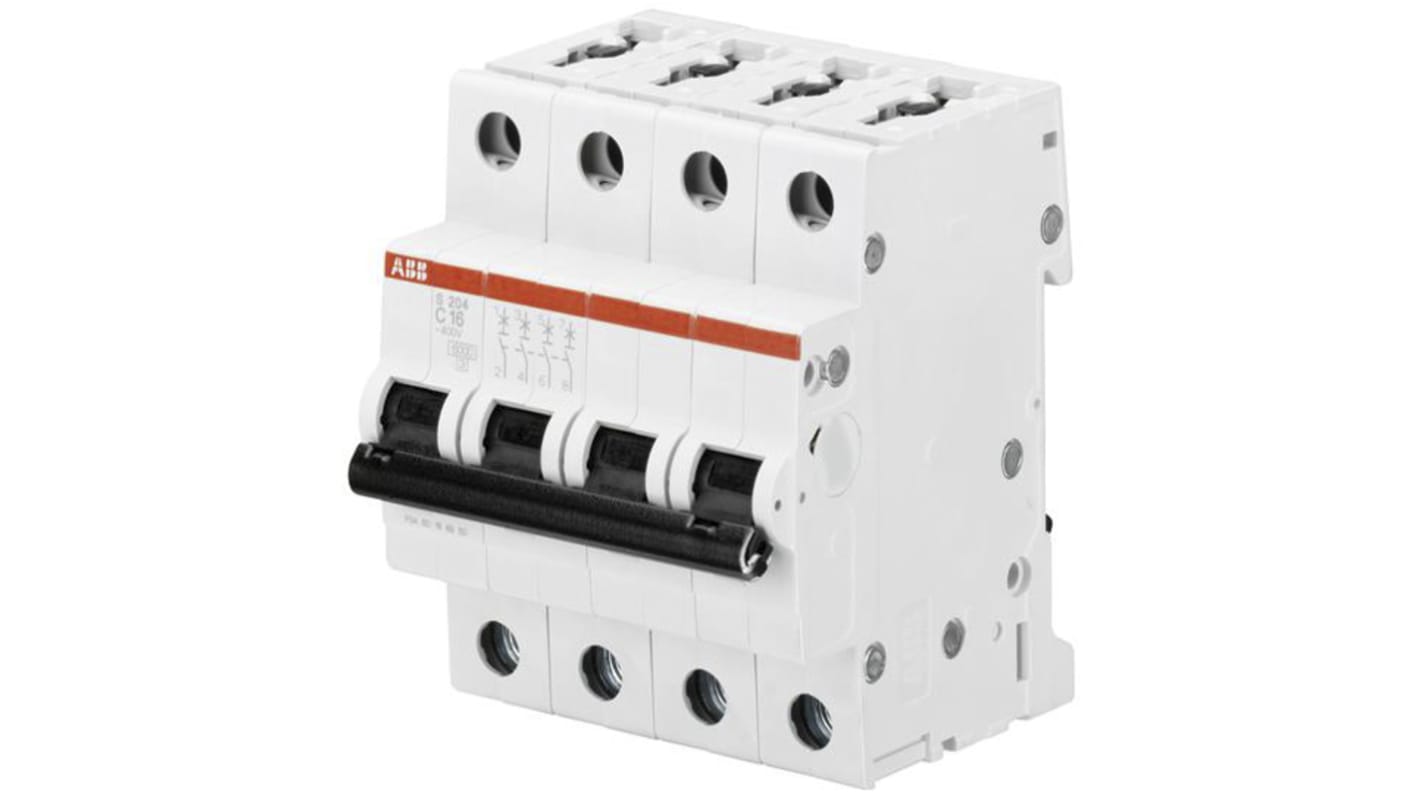

ABB System Pro M Compact S200 Miniature Circuit Breaker, 4-Pole, 40A, Type C, 440V ac AC, 110 V dc DC, 10 kA Breaking

RS Stock No.:: 183-3646
Mfr. Part No.:: 2CDS254001R0404
Brand:: ABB

ABB System Pro M Compact S200 Miniature Circuit Breaker, 4-Pole, 40A, Type C, 440V ac AC, 110 V dc DC, 10 kA Breaking

View all MCBs

Subtotal (1 unit)*

£154.42

(exc. VAT)

£185.30

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

5 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£154.42

*price indicative

RS Stock No.:: 183-3646
Mfr. Part No.:: 2CDS254001R0404
Brand:: ABB

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Number of Poles	4
	Product Type	Miniature Circuit Breaker
	Current Rating	40A
	Tripping Characteristics	Type C
	Rated AC Voltage	440V ac
	Rated DC Voltage	110V dc
	Breaking Capacity	10kA
	Mount Type	DIN Rail
	Range	System Pro M Compact
	Series	S200
	Terminal Type	Screw
	IP Rating	IP20, IP40
	Width	70mm
	Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235
	Depth	69mm
	Height	88mm
	Reset Actuator Type	Toggle Switch
	Tripping Mechanism	Thermal

	Select all
	Brand ABB
	Number of Poles 4
	Product Type Miniature Circuit Breaker
	Current Rating 40A
	Tripping Characteristics Type C
	Rated AC Voltage 440V ac
	Rated DC Voltage 110V dc
	Breaking Capacity 10kA
	Mount Type DIN Rail
	Range System Pro M Compact
	Series S200
	Terminal Type Screw
	IP Rating IP20, IP40
	Width 70mm
	Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235
	Depth 69mm
	Height 88mm
	Reset Actuator Type Toggle Switch
	Tripping Mechanism Thermal

Datasheet 2CDS254001R0404

COO (Country of Origin):: DE

ABB S200 Series MCB, 40A Current Rating , 4 Poles - 2CDS254001R0404

This MCB is a 4 pole circuit breaker designed for both commercial and industrial applications. Offering robust overload protection, it features a current rating of 40 A and is built to operate at a rated AC voltage of 440 V. The DIN rail mount system facilitates easy installation, while the dimensions of 70mm width, 69mm length, and 69mm depth ensure compatibility with standard setups.

Features & Benefits

• Type C tripping characteristics suitable for inductive loads
• Thermal tripping mechanism provides effective protection against overload
• High breaking capacity of 10 kA ensures safety at maximum voltage
• Screw Terminal contact type simplifies wiring connections
• Overload protection feature prevents potential damage to circuits
• Part of the System Pro M Compact range, ensuring quality and reliability

Applications

• Used in commercial buildings for electrical distribution management
• Suitable for industrial environments requiring robust circuit protection
• Commonly used in automation systems with inductive loads
• Ideal for installations needing a reliable DIN rail mount circuit breaker

What is the significance of the tripping characteristics in this circuit breaker?

The Type C tripping characteristics are Crucial for applications involving inductive loads, such as motors and transformers. It allows for delayed tripping during start-up, which prevents nuisance tripping while still providing protection against overloads.

How does the thermal tripping mechanism enhance safety?

The thermal tripping mechanism responds to excessive heat generated by overload conditions, allowing the circuit breaker to disconnect the circuit before damage occurs. This ensures that connected equipment is protected during fault conditions.

What advantages does the screw Terminal contact type offer?

Screw Terminal contacts are easy to manipulate and provide a secure electrical connection. This design allows for straightforward wiring and reduces the risk of loose connections, enhancing the reliability of the installation.

How does the high breaking capacity affect performance?

A breaking capacity of 10 kA ensures that the device can safely interrupt fault currents without failure. This feature is VITAL for maintaining operational integrity in industrial settings where high fault currents may occur.
