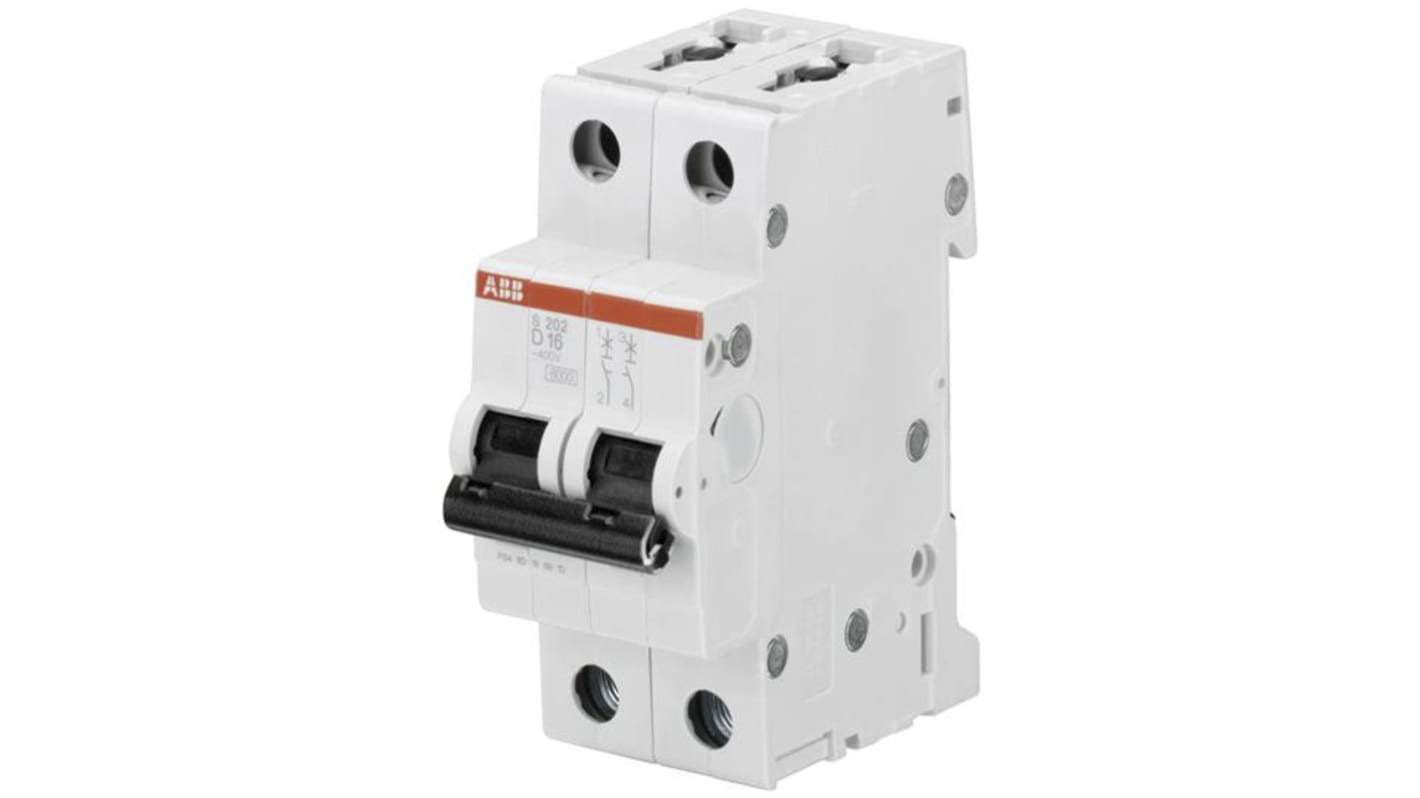

ABB System Pro M Compact S200 MCB, 2P, 6A Curve D, 440V AC, 125V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 183-3624
- Mfr. Part No.:
- 2CDS252001R0061
- Brand:
- ABB
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 183-3624
- Mfr. Part No.:
- 2CDS252001R0061
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 2P | |
| Current Rating | 6A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 440V | |
| Rated DC Voltage | 125V | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Range | System Pro M Compact | |
| Series | S200 | |
| Circuit Breaker Type | MCB | |
| Width | 69mm | |
| Length | 35mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 88mm | |
| Model Number | S202-D6 | |
| Terminal Contact Type | Screw | |
Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 2P | ||
Current Rating 6A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 440V | ||
Rated DC Voltage 125V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range System Pro M Compact | ||
Series S200 | ||
Circuit Breaker Type MCB | ||
Width 69mm | ||
Length 35mm | ||
Mounting Style DIN Rail Mount | ||
Depth 88mm | ||
Model Number S202-D6 | ||
Terminal Contact Type Screw | ||
- COO (Country of Origin):
- DE
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
