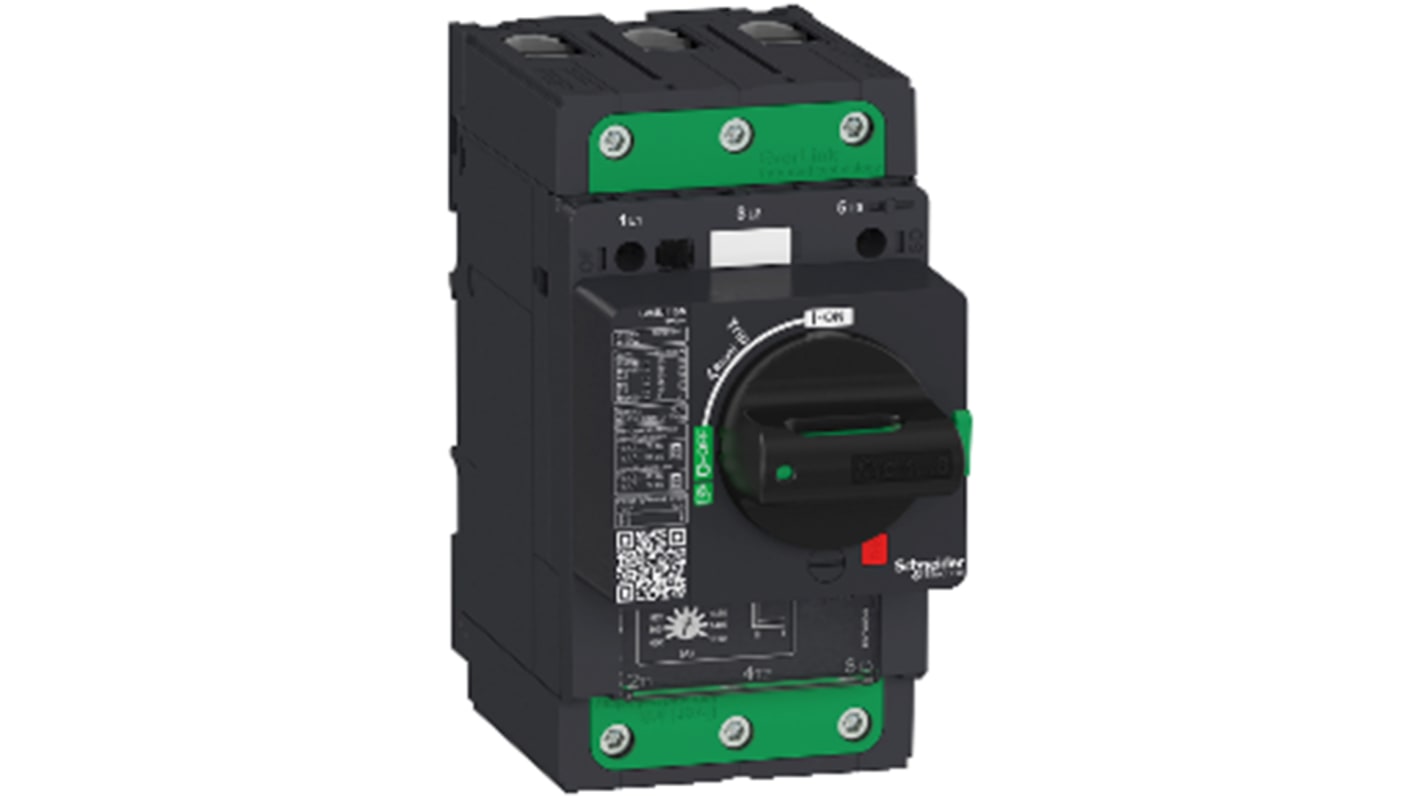

Schneider Electric TeSys MCB Mini Circuit Breaker 3P 2 A 100 kA @ 220 → 240 V ac, 15 kA @ 525 V ac, 25 kA @ 500

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
Product Details

New TeSys GV4 is a compact and robust motor circuit breaker, up to 115 A with 100 kA breaking capacity, available with 3 kinds of protection: magnetic, electronic thermal magnetic, electronic thermal magnetic with advanced protections and alarming designed for demanding applications.TeSys GV4 is also equiped with patented Everlink power connections, and may be equiped with a wide range of accessories, mainly: auxiliaries (1 OF, 1SD, 1 coil MN or MX), rotary handle (direct, front extended or side) and advanced alarming and fault differentiation module.

b Magnetic GV4L: to be used with an overload relay or a drive
b Thermal magnetic GV4P: electronic protection with wide range setting, dual class (10 & 20)
b Multifunction motor protection GV4PEM: GV4P with adjustable advanced protections and possibility to have
a side module SDx for alarming and fault differentiation.

Specifications
Attribute Value
Range TeSys
Series GV4L
Number of Poles 3
Current Rating 2 A
Rated AC Voltage 690 V
Mounting Style DIN Rail
Breaking Capacity 8 kA @ 660 → 690 V ac, 15 kA @ 525 V ac, 25 kA @ 500 V ac, 50 kA @ 380 → 415 V ac, 50 kA @ 440 V ac, 100 kA @ 220 → 240 V ac
Length 81mm
Width 165mm
Depth 155mm
Tripping Mechanism Magnetic
Application Motor
Terminal Contact Type Screw
Available to back order for despatch 28/01/2020
Price Each
£ 278.00
(exc. VAT)
£ 333.60
(inc. VAT)
Units
Per unit
1 +
£278.00
