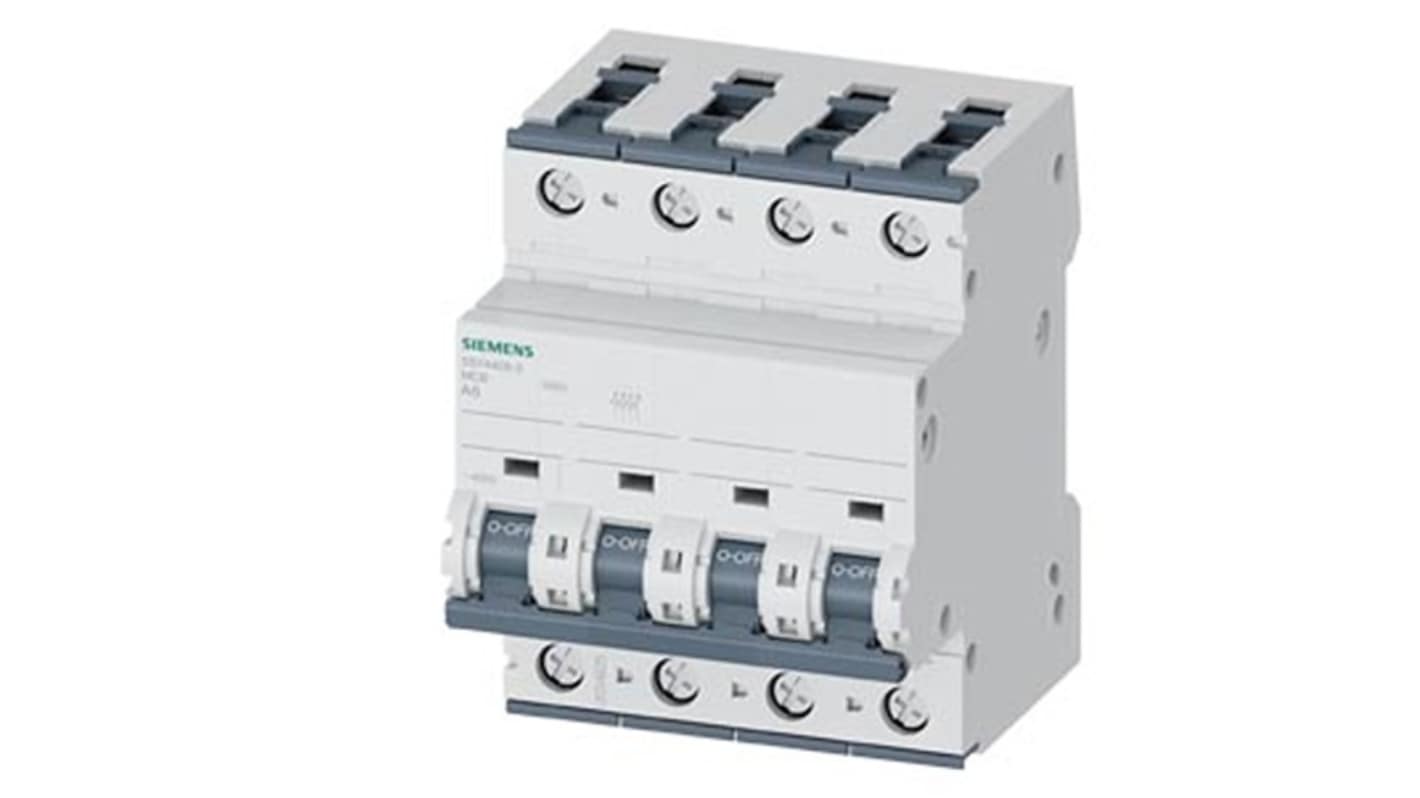

Siemens SENTRON 5SY4 Miniature Circuit Breaker, 4-Pole, 6A, Type A, 400V ac AC, 60 V dc DC, 10 kA Breaking Capacity
- RS Stock No.:
- 610-577
- Mfr. Part No.:
- 5SY4406-5
- Brand:
- Siemens
Subtotal (1 unit)*
£164.87
(exc. VAT)
£197.84
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £164.87 |
*price indicative
- RS Stock No.:
- 610-577
- Mfr. Part No.:
- 5SY4406-5
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 4 | |
| Current Rating | 6A | |
| Tripping Characteristics | Type A | |
| Rated AC Voltage | 400V ac | |
| Rated DC Voltage | 60V dc | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 10kA | |
| Range | SENTRON | |
| Series | 5SY4 | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Depth | 76mm | |
| Height | 90mm | |
| Standards/Approvals | IEC/EN 60947-2/UL1077, IEC/EN 60898-1 | |
| Width | 72mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 4 | ||
Current Rating 6A | ||
Tripping Characteristics Type A | ||
Rated AC Voltage 400V ac | ||
Rated DC Voltage 60V dc | ||
Mount Type DIN Rail | ||
Breaking Capacity 10kA | ||
Range SENTRON | ||
Series 5SY4 | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Depth 76mm | ||
Height 90mm | ||
Standards/Approvals IEC/EN 60947-2/UL1077, IEC/EN 60898-1 | ||
Width 72mm | ||
- COO (Country of Origin):
- DE
The Siemens Miniature Circuit Breaker is designed to offer robust protection in various electrical systems, ensuring operational reliability and safety. With a four-pole configuration, it seamlessly accommodates high-power applications while providing excellent tripping characteristics. Engineered to meet stringent international standards, this device boasts a mechanical service life of typically 10,000 operating cycles, making it a dependable choice for both industrial and infrastructure applications. Its compact design, with a depth of just 70 mm, allows for easy installation within limited spaces, whilst its wide operating temperature range ensures flawless performance even in challenging environments. With touch protection and halogen-free properties, this breaker prioritises user safety and environmental responsibility, making it a smart choice for any electrical installation.
Four-pole design optimises performance for three-phase loads
Category III overvoltage rating enhances reliability in diverse settings
Vibration resistance facilitates operation in demanding environments
IP20 rating provides reliable protection against accidental contact
Compatible with a range of supplementary devices for added versatility
Versatile mounting options allow for flexible installation in various configurations
Halogen-free and silicon-free materials promote an environmentally friendly solution
Sealable features enhance security against tampering
