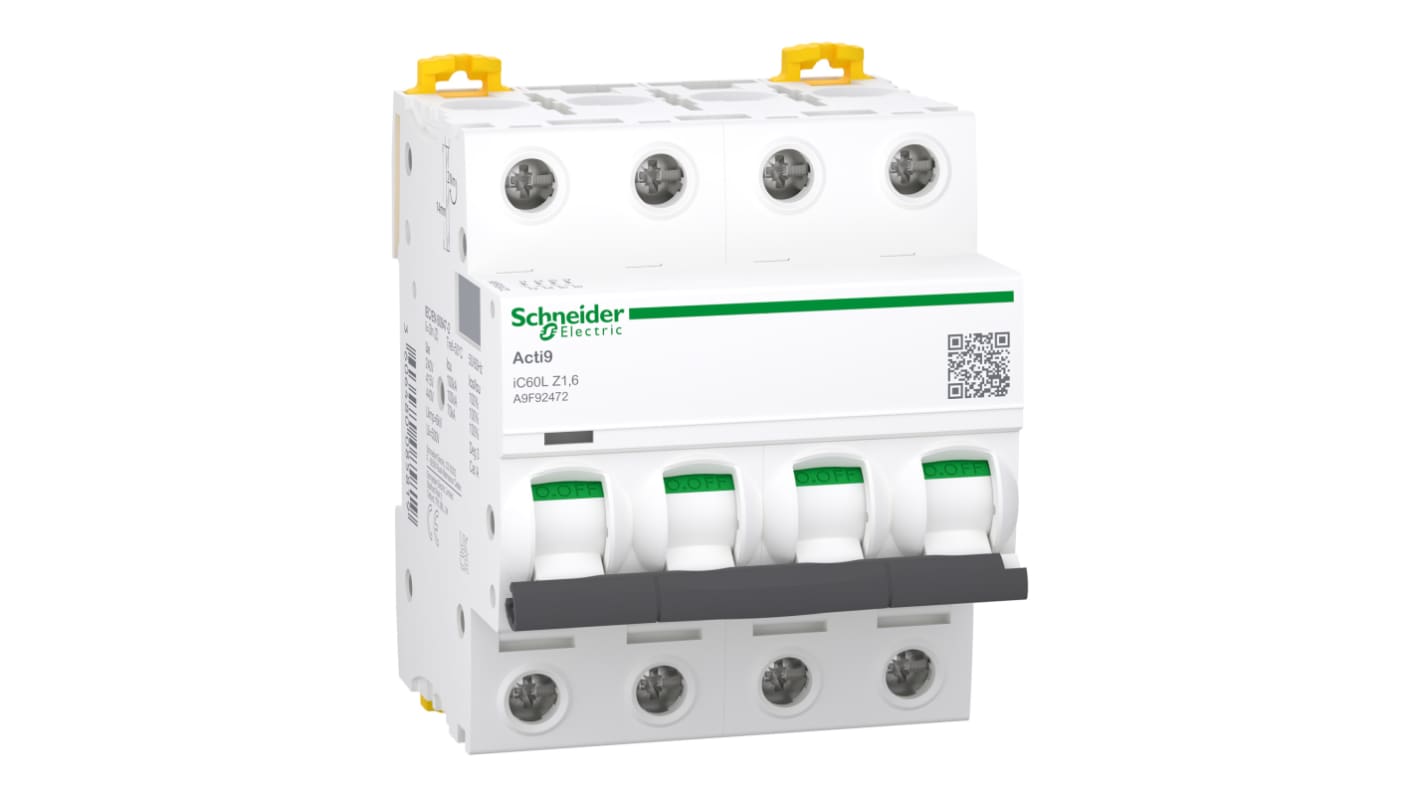

Schneider Electric Acti9 A9F MCB, 4P, 1.6A, Type Z, 500V AC, 250V DC, 415 V Breaking Capacity
- RS Stock No.:
- 577-185
- Mfr. Part No.:
- A9F92472
- Brand:
- Schneider Electric
Subtotal (1 pack of 3 units)*
£773.04
(exc. VAT)
£927.65
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £773.04 | £257.68 |
*price indicative
- RS Stock No.:
- 577-185
- Mfr. Part No.:
- A9F92472
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Poles | 4 | |
| Current Rating | 1.6A | |
| Tripping Characteristics | Type Z | |
| Rated AC Voltage | 500V | |
| Rated DC Voltage | 250V | |
| Breaking Capacity at Maximum Voltage Rating | 415 V | |
| Range | Acti9 | |
| Series | A9F | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Poles 4 | ||
Current Rating 1.6A | ||
Tripping Characteristics Type Z | ||
Rated AC Voltage 500V | ||
Rated DC Voltage 250V | ||
Breaking Capacity at Maximum Voltage Rating 415 V | ||
Range Acti9 | ||
Series A9F | ||
- COO (Country of Origin):
- FR
The Schneider Electric Low voltage miniature circuit breaker is a 4P circuit breaker with 4 protected poles, 1.6A rated current and Z tripping curve. The rated short circuit breaking capacity goes up to 100kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 15000A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit.
Combine short circuit and overload currents protection
Visitrip system for fast detection of faulty outgoers for shorter repair times
VisiSafe system for offering enhanced security when it comes to circuit protection
Visitrip system for fast detection of faulty outgoers for shorter repair times
VisiSafe system for offering enhanced security when it comes to circuit protection
