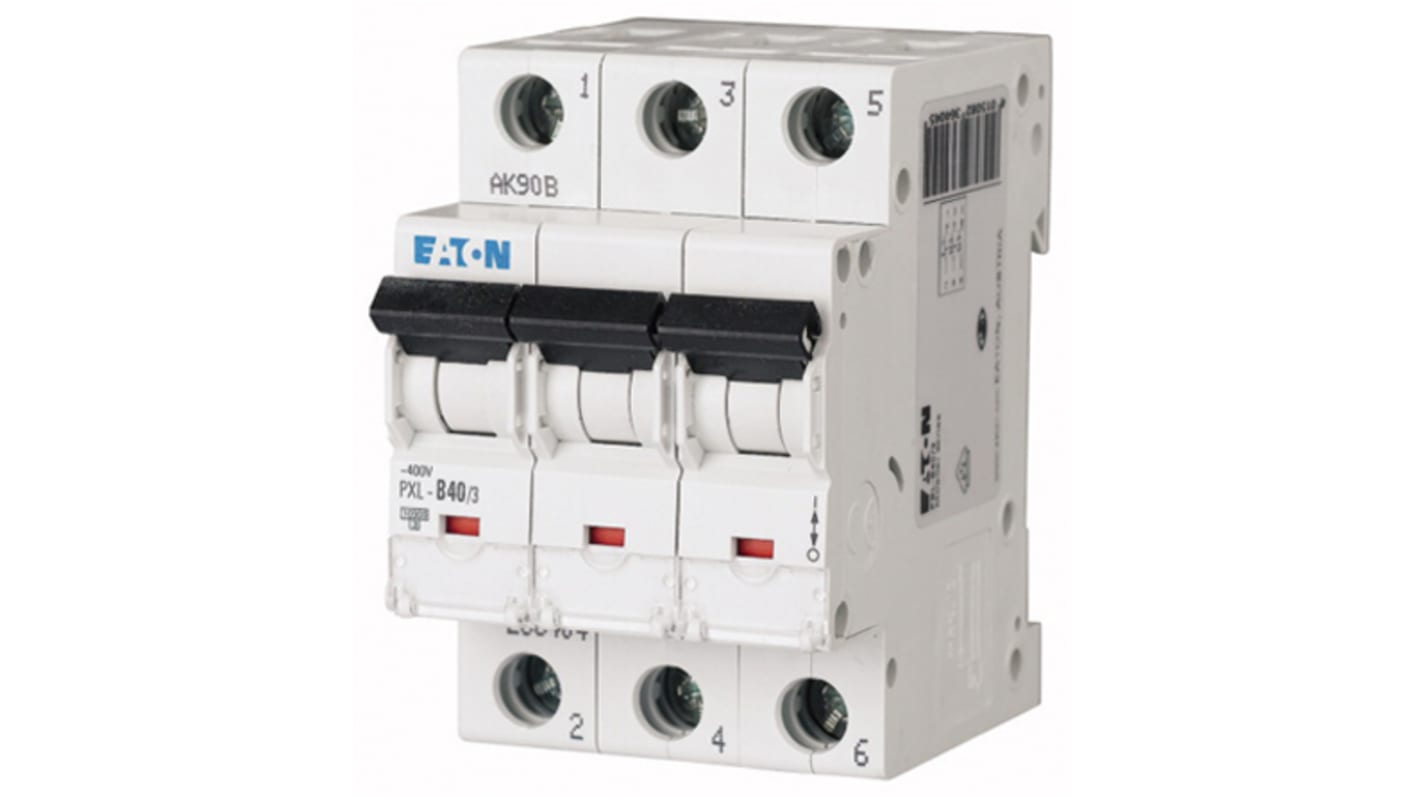

Eaton xPole PXL, S200 MCB, 3P, 40A Curve D, 400V AC, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 490-387
- Mfr. Part No.:
- 236469 PXL-D40/3
- Brand:
- Eaton
Subtotal (1 unit)*
£113.40
(exc. VAT)
£136.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £113.40 |
*price indicative
- RS Stock No.:
- 490-387
- Mfr. Part No.:
- 236469 PXL-D40/3
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 3 | |
Current Rating | 40A | |
Tripping Characteristics | Type D | |
Rated AC Voltage | 400V | |
Rated DC Voltage | 48V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xPole | |
Series | PXL, S200 | |
Circuit Breaker Type | MCB | |
Width | 80mm | |
Length | 52.5mm | |
Mounting Style | DIN Rail Mount | |
Depth | 60mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Current Rating 40A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 400V | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xPole | ||
Series PXL, S200 | ||
Circuit Breaker Type MCB | ||
Width 80mm | ||
Length 52.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 60mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- AT
PXL series, D-characteristic, 3-pole
Circuit breaker with high selectivity as a pre-fuse with low passband energy
Bus bar compatible
With double terminal, lift / jaw top and bottom
Free selection of rail arrangement top and bottom
Finger-proof / back-of-hand-proof
Quick-fit action with 3 locking positions for top-hat rail IEC / EN 60715
Bus bar compatible
With double terminal, lift / jaw top and bottom
Free selection of rail arrangement top and bottom
Finger-proof / back-of-hand-proof
Quick-fit action with 3 locking positions for top-hat rail IEC / EN 60715
Standards
IEC / EN 60898
Note
Eaton formerly known as Moeller
