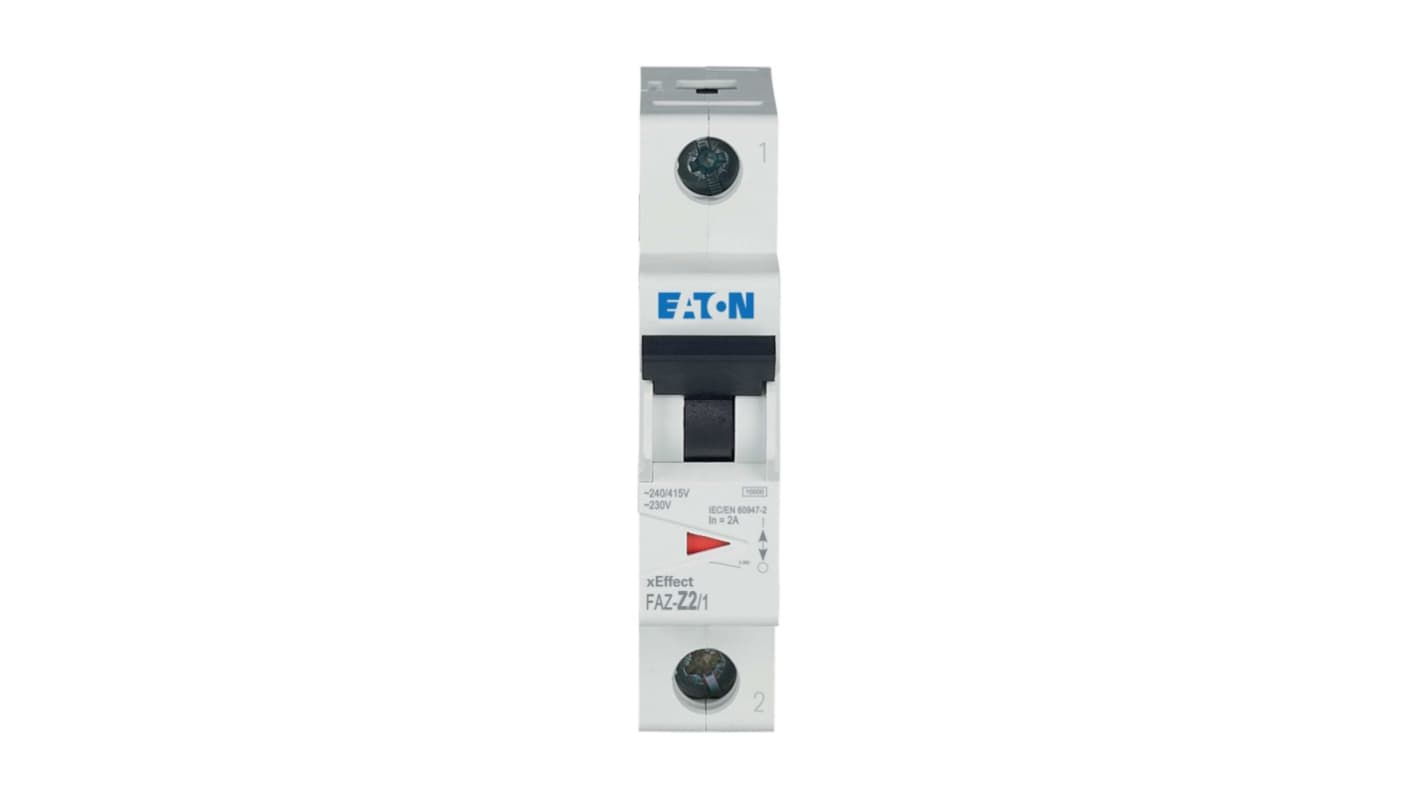

Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 2 A, Type Z, 230 V ac AC, 48 V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 259-575
- Mfr. Part No.:
- 278620 FAZ-Z2/1
- Brand:
- Eaton
Subtotal (1 unit)*
£41.55
(exc. VAT)
£49.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £41.55 |
*price indicative
- RS Stock No.:
- 259-575
- Mfr. Part No.:
- 278620 FAZ-Z2/1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 2 A | |
| Tripping Characteristics | Type Z | |
| Rated AC Voltage | 230 V ac | |
| Rated DC Voltage | 48 V | |
| Breaking Capacity | 10kA | |
| Mount Type | Top Hat Rail | |
| Range | xEffect | |
| Series | FAZ | |
| Terminal Type | Twin-Purpose Terminal | |
| IP Rating | IP20, IP40 | |
| Depth | 80mm | |
| Standards/Approvals | CSA, CSAC. . 5, EN45545, IEC 617, IECEN 60898, IECEN 60947, UL | |
| Width | 17.5 mm | |
| Height | 75.5mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 2 A | ||
Tripping Characteristics Type Z | ||
Rated AC Voltage 230 V ac | ||
Rated DC Voltage 48 V | ||
Breaking Capacity 10kA | ||
Mount Type Top Hat Rail | ||
Range xEffect | ||
Series FAZ | ||
Terminal Type Twin-Purpose Terminal | ||
IP Rating IP20, IP40 | ||
Depth 80mm | ||
Standards/Approvals CSA, CSAC. . 5, EN45545, IEC 617, IECEN 60898, IECEN 60947, UL | ||
Width 17.5 mm | ||
Height 75.5mm | ||
- COO (Country of Origin):
- RO
The Eaton xEffect series offers a cutting edge miniature circuit breaker, engineered for safety and reliability. Designed specifically for industrial and advanced commercial applications, this breaker features a compact form factor without sacrificing performance. The device utilises a tripping characteristic of Z, ensuring precise overload protection. With multiple safety certifications, including UL and CSA, it ensures compliance with international standards, providing peace of mind for users. Built to withstand extreme temperatures and rigorous operating conditions, this product is ideal for a range of applications, offering efficient fault protection for branch circuits. The robust design features a generous lifespan, making it a dependable choice for demanding environments.
Compact design optimises space in electrical panels
Exceptional protection against overloads and short circuits
Temperature resilience ensures safe operation in diverse conditions
Dual terminal options enhance versatility during installation
Mounting method allows for easy integration into existing systems
High short circuit breaking capacity enhances safety
User friendly installation instructions simplify setup
Series wide compatibility for seamless upgrades and replacements
Environmentally conscious design with RoHS compliance
Versatile voltage ratings accommodate various electrical systems
