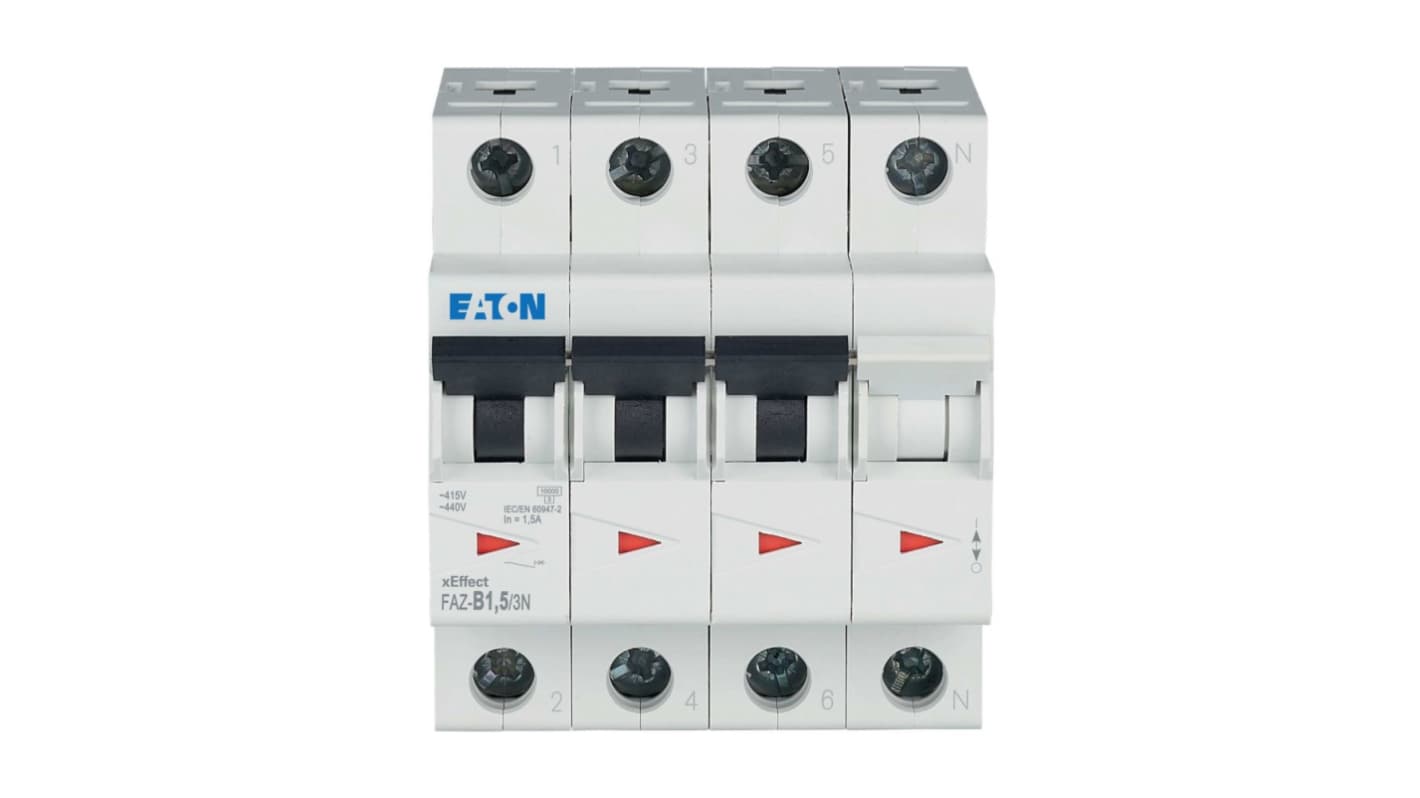

Eaton xEffect FAZ Miniature Circuit Breaker, 3-Pole, 1.5 A, Type B, 400 V ac AC, 15 kA Breaking Capacity
- RS Stock No.:
- 259-032
- Mfr. Part No.:
- 278935 FAZ-B1,5/3N
- Brand:
- Eaton
Subtotal (1 unit)*
£169.12
(exc. VAT)
£202.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £169.12 |
*price indicative
- RS Stock No.:
- 259-032
- Mfr. Part No.:
- 278935 FAZ-B1,5/3N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 3 | |
| Current Rating | 1.5 A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 400 V ac | |
| Mount Type | Top Hat Rail | |
| Breaking Capacity | 15kA | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP20 | |
| Standards/Approvals | RoHS, CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2, UL | |
| Width | 72 mm | |
| Height | 75.5mm | |
| Depth | 80mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 3 | ||
Current Rating 1.5 A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 400 V ac | ||
Mount Type Top Hat Rail | ||
Breaking Capacity 15kA | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP20 | ||
Standards/Approvals RoHS, CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2, UL | ||
Width 72 mm | ||
Height 75.5mm | ||
Depth 80mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series xEffect is a highly efficient miniature circuit breaker designed for both industrial and advanced commercial applications. With a robust three pole plus neutral configuration, this circuit breaker features a tripping characteristic of B and a rated current of 1.5 A. It provides an exceptional rated switching capacity of up to 15 kA, ensuring reliable performance in challenging environments. Engineered to meet stringent safety standards, this MCB is RoHS compliant and boasts certifications for various international safety protocols.
Robust construction ensures long term reliability
Efficient heat dissipation capabilities reduce operational strain
Designed to accommodate various conductor cross sections for flexibility
Straightforward integration into existing switchgear systems
Environmentally friendly and adheres to RoHS standards
Provides clear compliance with international electrical standards
Optimised for electromagnetic compatibility to mitigate disruptions
