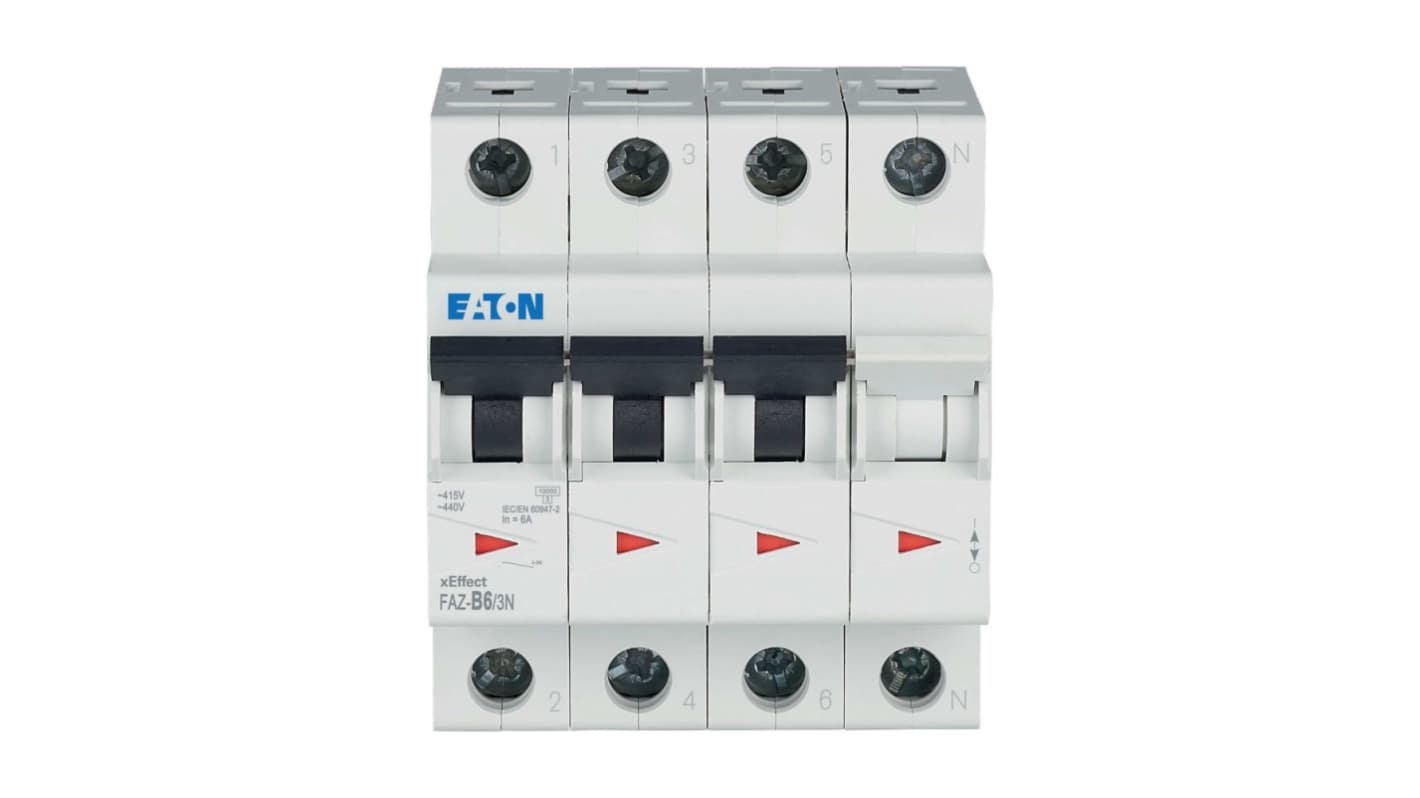

Eaton xEffect FAZ Miniature Circuit Breaker, 3-Pole, 6 A, Type B, 400 V ac AC, 60 V dc DC, 10 kA Breaking Capacity
- RS Stock No.:
- 258-775
- Mfr. Part No.:
- 278943 FAZ-B6/3N
- Brand:
- Eaton
Subtotal (1 unit)*
£172.84
(exc. VAT)
£207.41
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £172.84 |
*price indicative
- RS Stock No.:
- 258-775
- Mfr. Part No.:
- 278943 FAZ-B6/3N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 6 A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 400 V ac | |
| Rated DC Voltage | 60 V dc | |
| Breaking Capacity | 10kA | |
| Mount Type | Top Hat Rail | |
| Range | xEffect | |
| Series | FAZ | |
| Terminal Type | Twin-Purpose Terminal | |
| IP Rating | IP20, IP40 | |
| Standards/Approvals | EN45545-2, IEC 61373, IEC/EN 60898, IEC/EN 60947-2 | |
| Depth | 80mm | |
| Height | 75.5mm | |
| Width | 72 mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 6 A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 400 V ac | ||
Rated DC Voltage 60 V dc | ||
Breaking Capacity 10kA | ||
Mount Type Top Hat Rail | ||
Range xEffect | ||
Series FAZ | ||
Terminal Type Twin-Purpose Terminal | ||
IP Rating IP20, IP40 | ||
Standards/Approvals EN45545-2, IEC 61373, IEC/EN 60898, IEC/EN 60947-2 | ||
Depth 80mm | ||
Height 75.5mm | ||
Width 72 mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series embodies cutting edge technology for efficient and reliable electrical protection. Designed for industrial and advanced commercial applications, it ensures robust performance with a tripping characteristic of type B and a rated current of 6 A. With dimensions tailored for easy integration into existing systems and a range of safety certifications, this product promises operational dependability in diverse environments.
Certified for compliance with international standards for increased trust
Advanced temperature management capabilities
Constructed to be finger and hand touch safe for enhanced user protection
Offers a mechanical lifespan of up to 10000 operations
Designed with a pollution degree rating to ensure compatibility in varied environments
Supports dual terminal access simplifying wiring and reducing installation time
Includes a protection rating suitable for diverse operational settings
