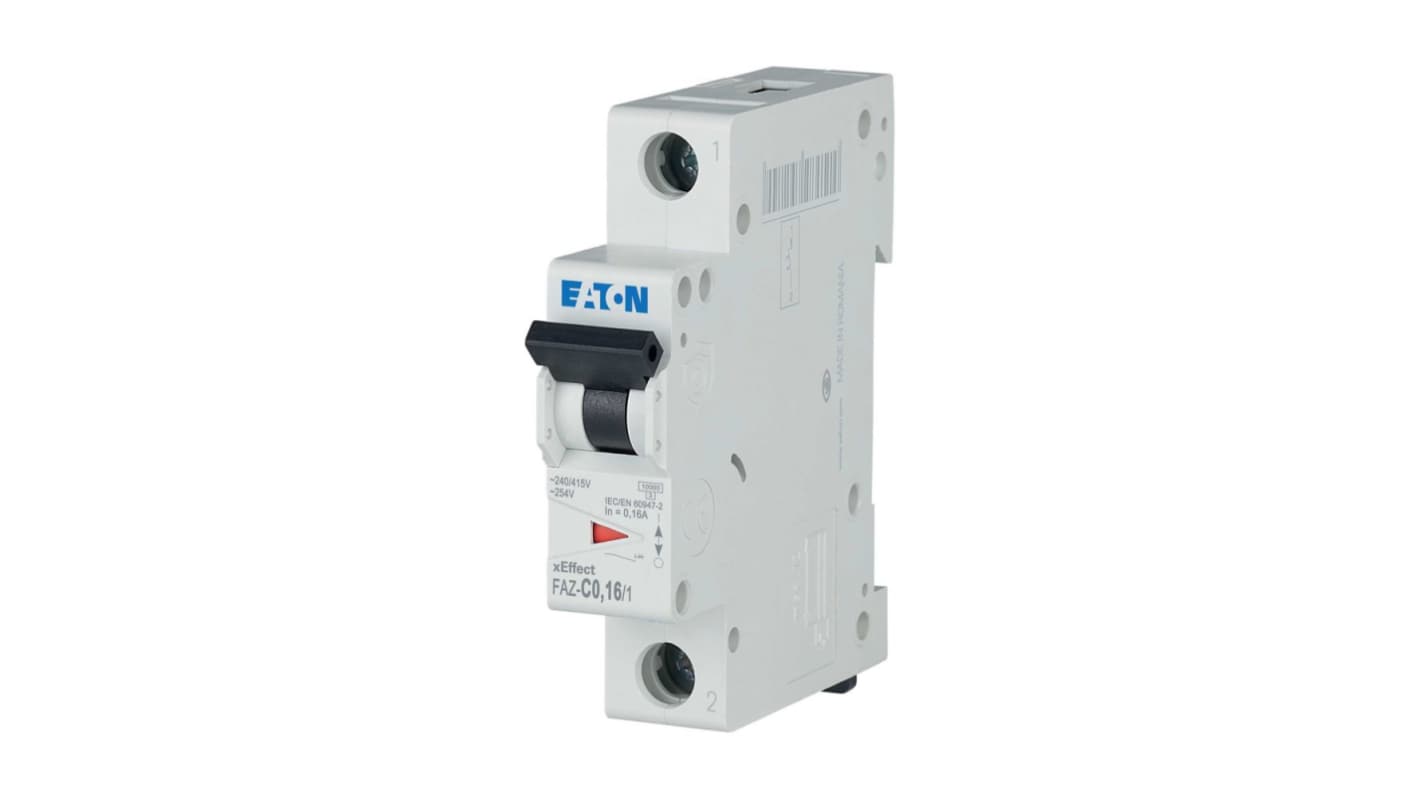

Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 0.16 A, Type C, 230 V ac AC, 48 V DC, 15 kA Breaking Capacity
- RS Stock No.:
- 258-733
- Mfr. Part No.:
- 278542 FAZ-C0,16/1
- Brand:
- Eaton
Subtotal (1 unit)*
£49.62
(exc. VAT)
£59.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £49.62 |
*price indicative
- RS Stock No.:
- 258-733
- Mfr. Part No.:
- 278542 FAZ-C0,16/1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 0.16 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 230 V ac | |
| Rated DC Voltage | 48 V | |
| Breaking Capacity | 15kA | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP20 | |
| Standards/Approvals | CE, CSAC. . 5, CSA (Class . 150), CSA (File . 0445), EN45545, IEC 617, IECEN 60898, IECEN 60947, RoHS, rth America (UL,CSA ), UL 1077, UL (Category Control Number QVNU,QVNU8), UL CSA09, UL (File . E177451) | |
| Height | 75.5mm | |
| Width | 17.7 mm | |
| Depth | 70.5mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 0.16 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230 V ac | ||
Rated DC Voltage 48 V | ||
Breaking Capacity 15kA | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP20 | ||
Standards/Approvals CE, CSAC. . 5, CSA (Class . 150), CSA (File . 0445), EN45545, IEC 617, IECEN 60898, IECEN 60947, RoHS, rth America (UL,CSA ), UL 1077, UL (Category Control Number QVNU,QVNU8), UL CSA09, UL (File . E177451) | ||
Height 75.5mm | ||
Width 17.7 mm | ||
Depth 70.5mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series is designed to deliver superior protection for your electrical circuits. This miniature circuit breaker is built to handle demanding conditions while ensuring high operational reliability. With a tripping characteristic of C and a rated current of 0.16 A, this single pole device is ideal for branch circuits in both industrial and advanced commercial applications.
Compact size allows for efficient use of space in electrical panels
Complies with international standards offering high reliability and safety
Optimised heat dissipation supports safe operation under normal and severe conditions
User friendly installation features streamline set up and maintenance efforts
Highly effective in protecting against overload and short circuits enhancing system integrity
Environmentally compliant materials reaffirm a commitment to sustainability
