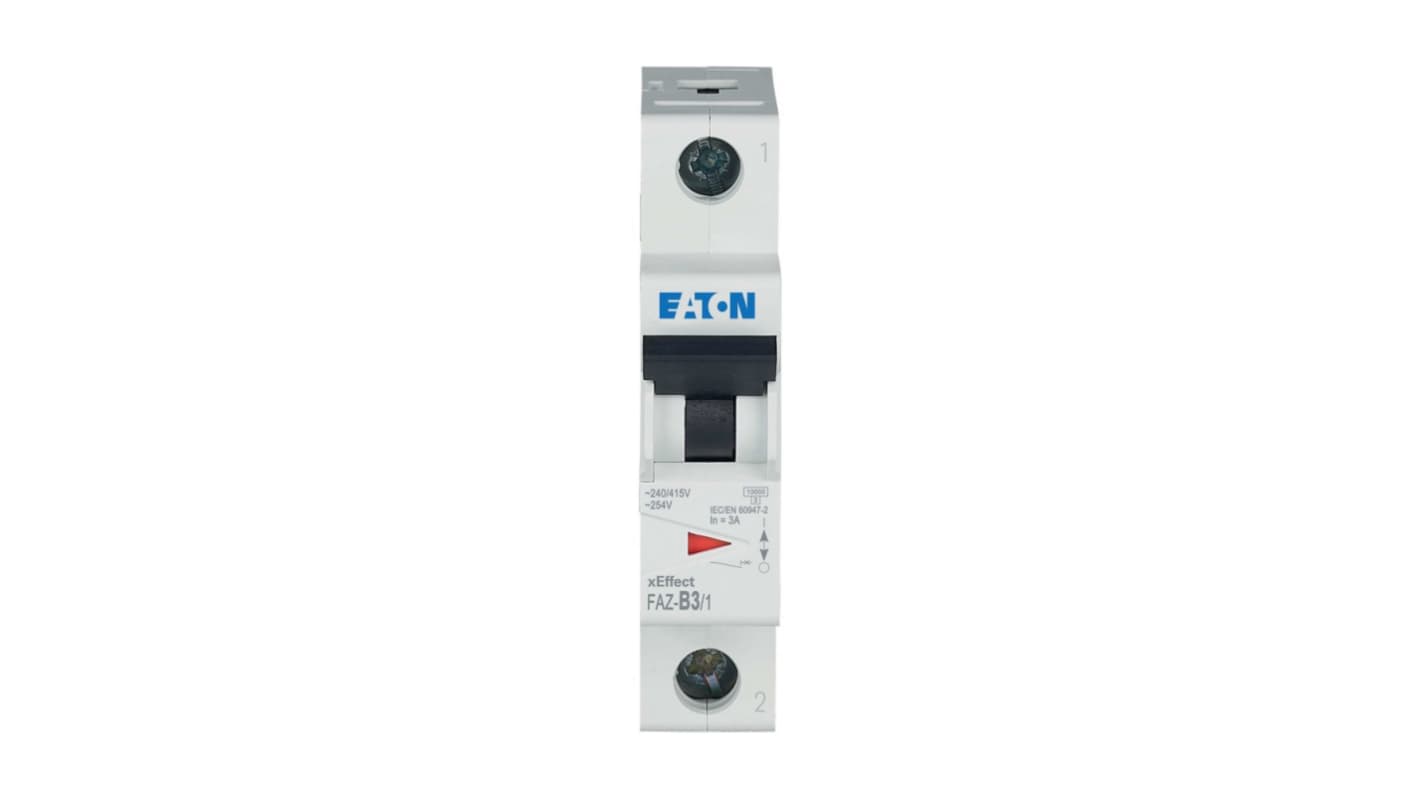

Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 3A, Type B, 230V ac AC, 48 V dc DC, 10 kA Breaking Capacity
- RS Stock No.:
- 258-730
- Mfr. Part No.:
- 278525 FAZ-B3/1
- Brand:
- Eaton
Subtotal (1 unit)*
£25.28
(exc. VAT)
£30.34
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 26 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £25.28 |
*price indicative
- RS Stock No.:
- 258-730
- Mfr. Part No.:
- 278525 FAZ-B3/1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 3A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 230V ac | |
| Rated DC Voltage | 48V dc | |
| Mount Type | Top Hat Rail | |
| Breaking Capacity | 10kA | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP20 | |
| Width | 17.7mm | |
| Standards/Approvals | CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2, RoHS, UL | |
| Depth | 80mm | |
| Height | 75.5mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 3A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 230V ac | ||
Rated DC Voltage 48V dc | ||
Mount Type Top Hat Rail | ||
Breaking Capacity 10kA | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP20 | ||
Width 17.7mm | ||
Standards/Approvals CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2, RoHS, UL | ||
Depth 80mm | ||
Height 75.5mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series xEffect is engineered to provide exceptional protection for branch circuits in both industrial and commercial applications. Designed for reliability, it features a single pole configuration with a tripping characteristic of B, allowing it to effectively manage overcurrents while ensuring safety and performance. Its compact dimensions make it a fitting choice for installation in a variety of switchgear systems.
Compact design optimises space in installations
Designed to meet international safety standards for reliability
Offers excellent current limiting capabilities to enhance safety
Constructed to endure a diverse set of environmental conditions
Ease of installation contributes to efficient project timelines
Utilises a clear characteristic curve for predictable performance
Minimises downtime with high breaking capacity under fault conditions
Promotes energy efficiency through low power loss
