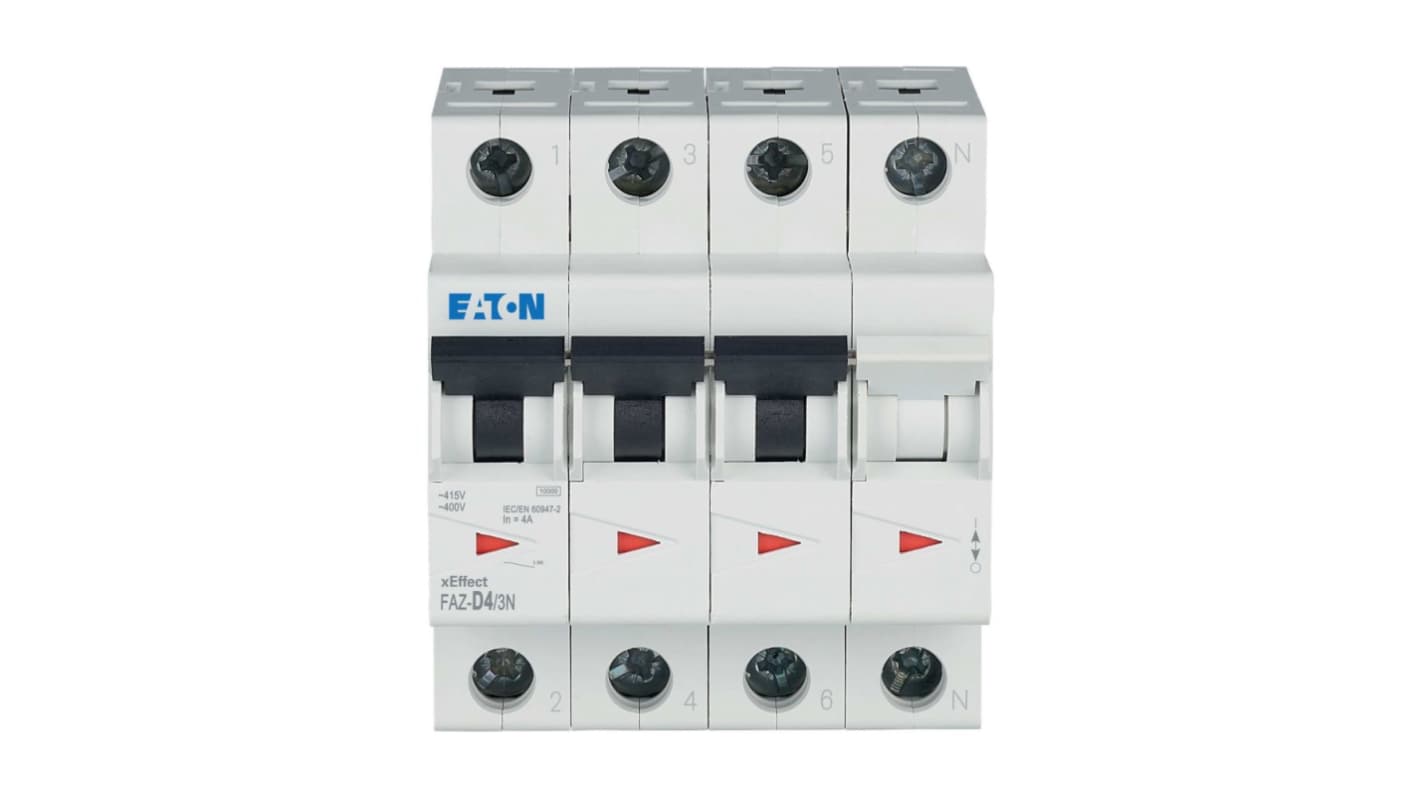

Eaton xEffect FAZ Miniature Circuit Breaker, 3-Pole, 4 A, Type D, 400 V ac AC, 10 kA Breaking Capacity
- RS Stock No.:
- 256-971
- Mfr. Part No.:
- 278990 FAZ-D4/3N
- Brand:
- Eaton
Subtotal (1 unit)*
£201.13
(exc. VAT)
£241.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £201.13 |
*price indicative
- RS Stock No.:
- 256-971
- Mfr. Part No.:
- 278990 FAZ-D4/3N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 4 A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 400 V ac | |
| Mount Type | Top Hat Rail | |
| Breaking Capacity | 10kA | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP20 | |
| Height | 75.5mm | |
| Width | 72 mm | |
| Depth | 80mm | |
| Standards/Approvals | UL, RoHS, IEC/EN 60947-2, IEC/EN 60898, IEC 61373, EN 63000:2018, EN45545-2, EAN, CSA | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 4 A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 400 V ac | ||
Mount Type Top Hat Rail | ||
Breaking Capacity 10kA | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP20 | ||
Height 75.5mm | ||
Width 72 mm | ||
Depth 80mm | ||
Standards/Approvals UL, RoHS, IEC/EN 60947-2, IEC/EN 60898, IEC 61373, EN 63000:2018, EN45545-2, EAN, CSA | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series is engineered for reliability in industrial and advanced commercial applications. Designed with Eaton's Moeller series xEffect in mind, it delivers exceptional performance with a robust tripping characteristic of D, making it suitable for diverse operational environments. The 3 pole plus neutral configuration ensures effective circuit protection while maintaining a compact footprint.
Utilises a comprehensive degree of protection against electric shocks
Facilitates seamless installation with an efficient design profile
Engineered for superior electromagnetic compatibility
Designed for optimal heat dissipation ensuring longevity in operation
Constructed to withstand a wide ambient temperature range
Offers reliable performance in both AC voltage environments
