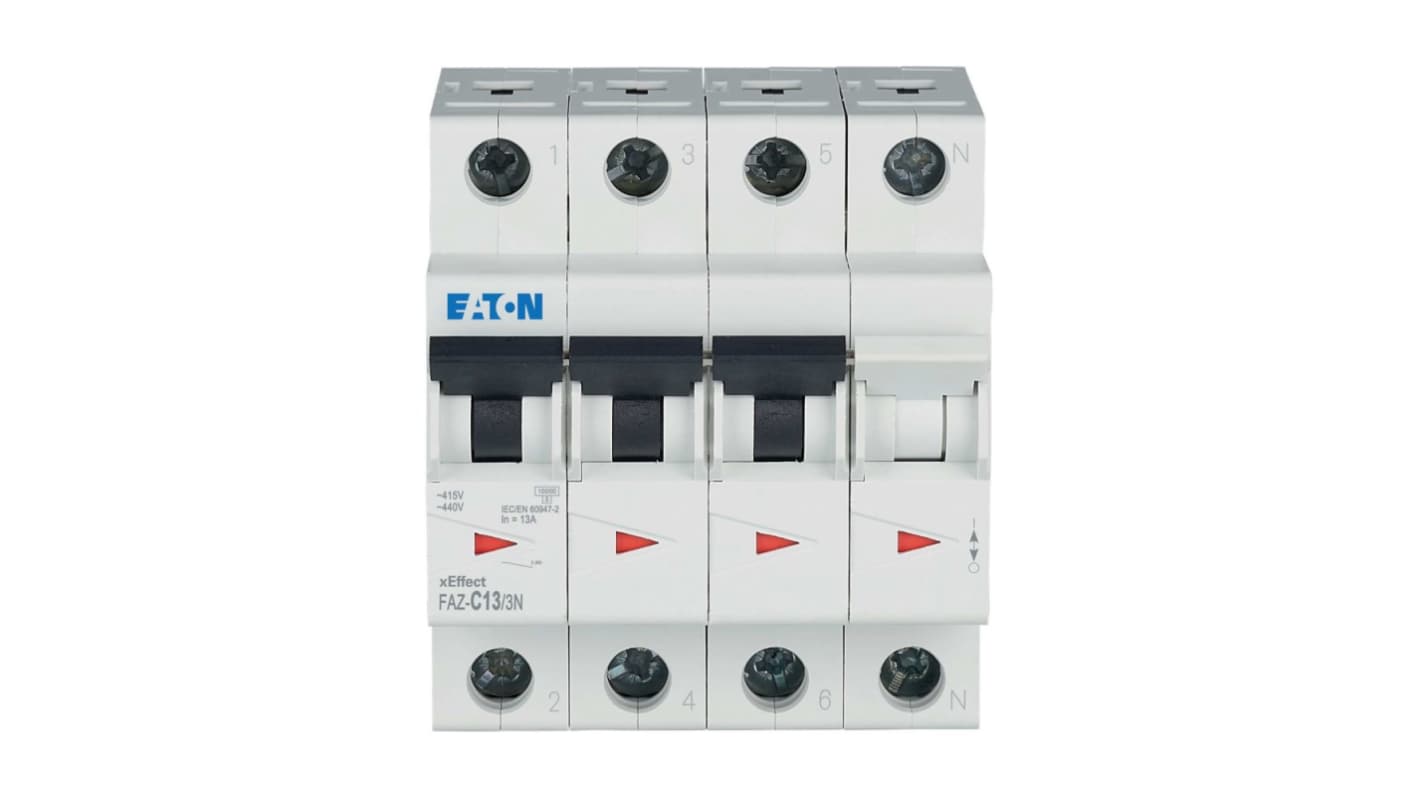

Eaton xEffect FAZ Miniature Circuit Breaker, 3-Pole, 13 A, Type C, 400 V ac AC, 60 V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 256-965
- Mfr. Part No.:
- 278973 FAZ-C13/3N
- Brand:
- Eaton
Subtotal (1 unit)*
£195.54
(exc. VAT)
£234.65
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £195.54 |
*price indicative
- RS Stock No.:
- 256-965
- Mfr. Part No.:
- 278973 FAZ-C13/3N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 3 | |
| Current Rating | 13 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 400 V ac | |
| Rated DC Voltage | 60 V | |
| Breaking Capacity | 10kA | |
| Mount Type | Top Hat Rail | |
| Range | xEffect | |
| Series | FAZ | |
| Terminal Type | Twin-Purpose Terminal | |
| IP Rating | IP40, IP20 | |
| Standards/Approvals | IEC 61373, IEC/EN 60947-2, IEC/EN 60898, EN45545-2 | |
| Depth | 75mm | |
| Width | 72 mm | |
| Height | 80mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 3 | ||
Current Rating 13 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400 V ac | ||
Rated DC Voltage 60 V | ||
Breaking Capacity 10kA | ||
Mount Type Top Hat Rail | ||
Range xEffect | ||
Series FAZ | ||
Terminal Type Twin-Purpose Terminal | ||
IP Rating IP40, IP20 | ||
Standards/Approvals IEC 61373, IEC/EN 60947-2, IEC/EN 60898, EN45545-2 | ||
Depth 75mm | ||
Width 72 mm | ||
Height 80mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series offers robust electrical protection suitable for industrial and advanced commercial applications. Designed with a tripping characteristic of C, it effectively manages overloads and short circuits while ensuring reliable operational performance. Its compact dimensions accommodating standard mounting methods make it ideal for diverse installations.
Utilises innovative technology to improve energy efficiency
Facilitates straightforward installation with top hat rail mounting options
Supports a wide range of conductor sizes for flexibility in applications
Constructed with materials ensuring durability and longevity in operation
Efficient cooling properties to manage ambient temperature variations
Provides detailed instructions for electrical and mechanical compatibility
