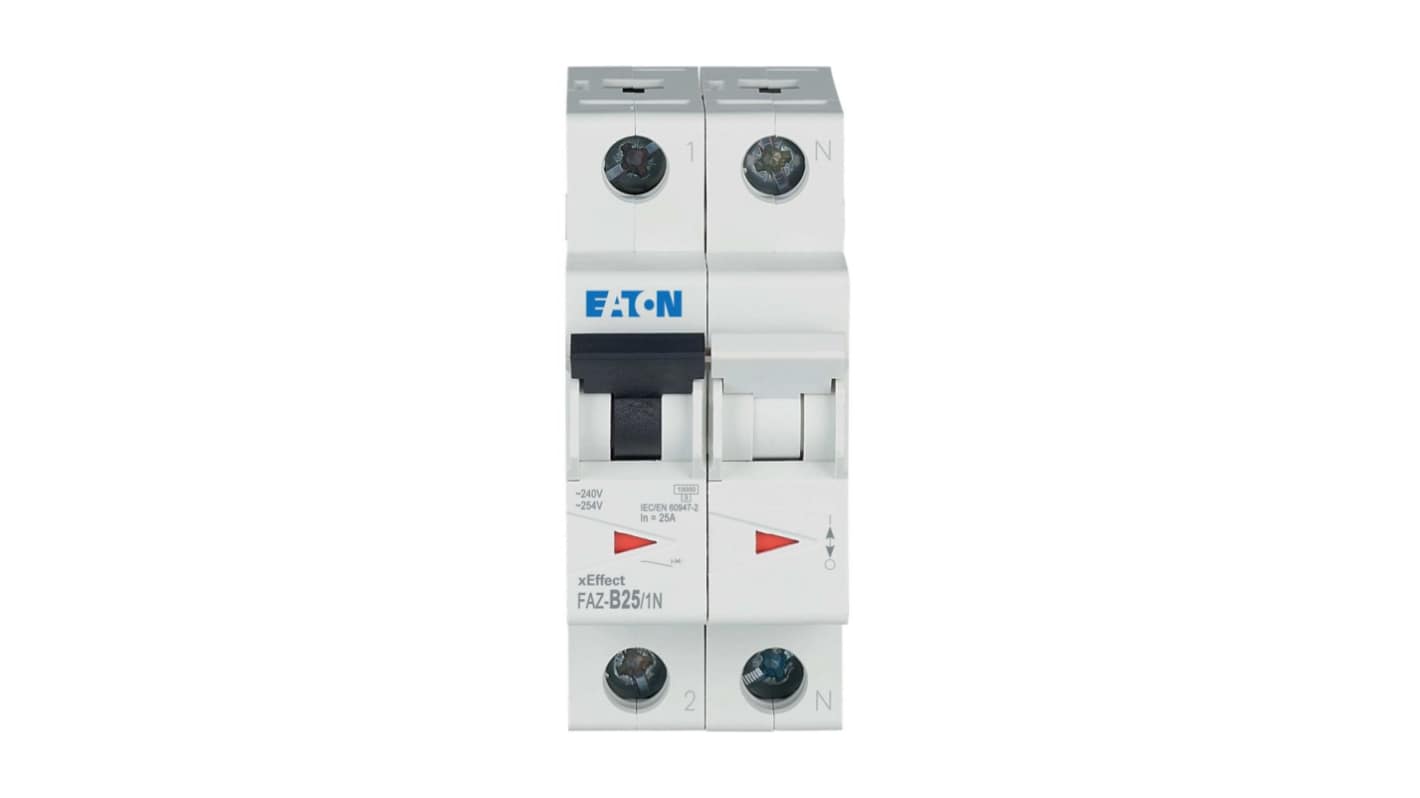

Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 25A, Type B, 230V ac AC, 60 V dc DC, 10 kA Breaking Capacity
- RS Stock No.:
- 256-932
- Mfr. Part No.:
- 278650 FAZ-B25/1N
- Brand:
- Eaton
Subtotal (1 unit)*
£58.54
(exc. VAT)
£70.25
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £58.54 |
*price indicative
- RS Stock No.:
- 256-932
- Mfr. Part No.:
- 278650 FAZ-B25/1N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 25A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 230V ac | |
| Rated DC Voltage | 60V dc | |
| Breaking Capacity | 10kA | |
| Mount Type | Top Hat Rail | |
| Range | xEffect | |
| Series | FAZ | |
| Terminal Type | Twin-Purpose Terminal | |
| IP Rating | IP40, IP20 | |
| Height | 75.5mm | |
| Depth | 80mm | |
| Width | 36mm | |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898, IEC 61373, EN45545-2 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 25A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 230V ac | ||
Rated DC Voltage 60V dc | ||
Breaking Capacity 10kA | ||
Mount Type Top Hat Rail | ||
Range xEffect | ||
Series FAZ | ||
Terminal Type Twin-Purpose Terminal | ||
IP Rating IP40, IP20 | ||
Height 75.5mm | ||
Depth 80mm | ||
Width 36mm | ||
Standards/Approvals IEC/EN 60947-2, IEC/EN 60898, IEC 61373, EN45545-2 | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series xEffect epitomises reliability and efficiency in electrical applications. Designed to protect against overloads and short circuits, this device integrates seamlessly into industrial and advanced commercial setups. With a robust build, it boasts a compact form factor while maintaining impressive electrical performance. Ideal for both new projects and retrofits, it offers the added advantage of traceable compliance with international standards, reassuring users of its quality and safety.
Compact design allows for space efficient installations
Innovative tripping characteristic provides precise operational reliability
Complies with strict international safety standards for enhanced user confidence
User friendly installation process saves time on site
Versatile applications in both industrial and commercial environments
Supports a wide range of operation temperatures for diverse environments
Designed for effective heat dissipation during operation
