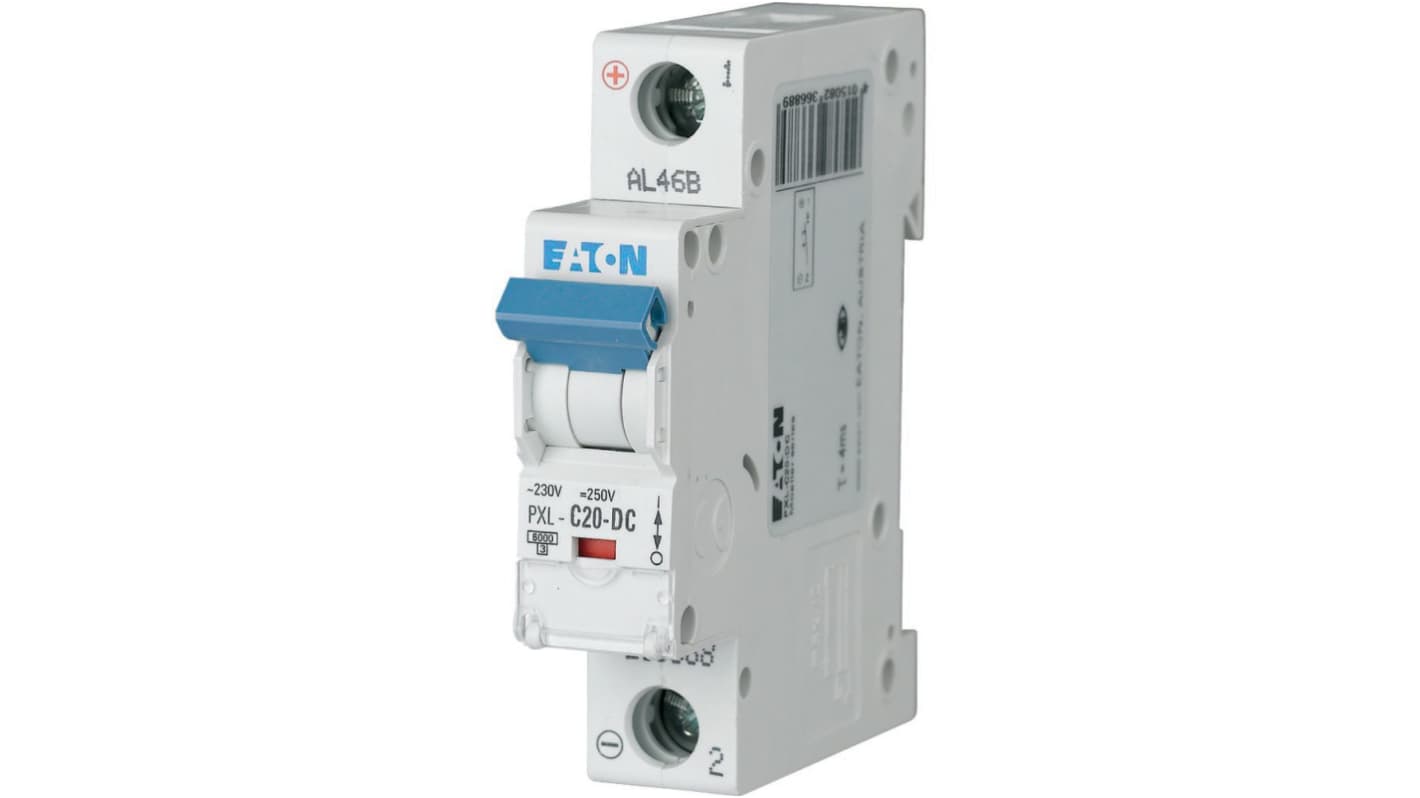

Eaton xPole - PXL PXL Miniature Circuit Breaker, 1-Pole, 20 A, Type C, 400 V ac AC, 400 V dc DC, 6 kA Breaking Capacity
- RS Stock No.:
- 254-638
- Mfr. Part No.:
- 236688 PXL-C20-DC
- Brand:
- Eaton
Subtotal (1 unit)*
£66.46
(exc. VAT)
£79.75
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 09 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £66.46 |
*price indicative
- RS Stock No.:
- 254-638
- Mfr. Part No.:
- 236688 PXL-C20-DC
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 20 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 400 V ac | |
| Rated DC Voltage | 400 V dc | |
| Breaking Capacity | 6kA | |
| Range | xPole - PXL | |
| Series | PXL | |
| IP Rating | IP20 | |
| Standards/Approvals | RoHS | |
| Depth | 70.5mm | |
| Height | 75mm | |
| Width | 17.5 mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 20 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400 V ac | ||
Rated DC Voltage 400 V dc | ||
Breaking Capacity 6kA | ||
Range xPole - PXL | ||
Series PXL | ||
IP Rating IP20 | ||
Standards/Approvals RoHS | ||
Depth 70.5mm | ||
Height 75mm | ||
Width 17.5 mm | ||
- COO (Country of Origin):
- RO
The Eaton miniature circuit breaker from The Eaton Moeller series xPole - PXL is designed to provide superior protection in residential and commercial applications. With its one-pole configuration and tripping characteristic C, this device ensures reliable overcurrent protection while facilitating easy installation. Engineered for excellence, it incorporates advanced technology to enhance electrical performance and safety. The robust design handles a rated current of 20 A and meets stringent compliance standards for a variety of operating conditions. This essential component not only safeguards your electrical systems but also contributes to their efficiency and longevity.
Single-pole configuration for targeted protection
Tripping characteristic C for reliable operation
Designed for both residential and commercial electrical systems
Incorporates a compact design for easy integration
Features a robust rated short-circuit breaking capacity
Complies with leading safety standards for peace of mind
Offers versatility with DC and AC voltage type compatibility
Ensures operational reliability in diverse environmental conditions
