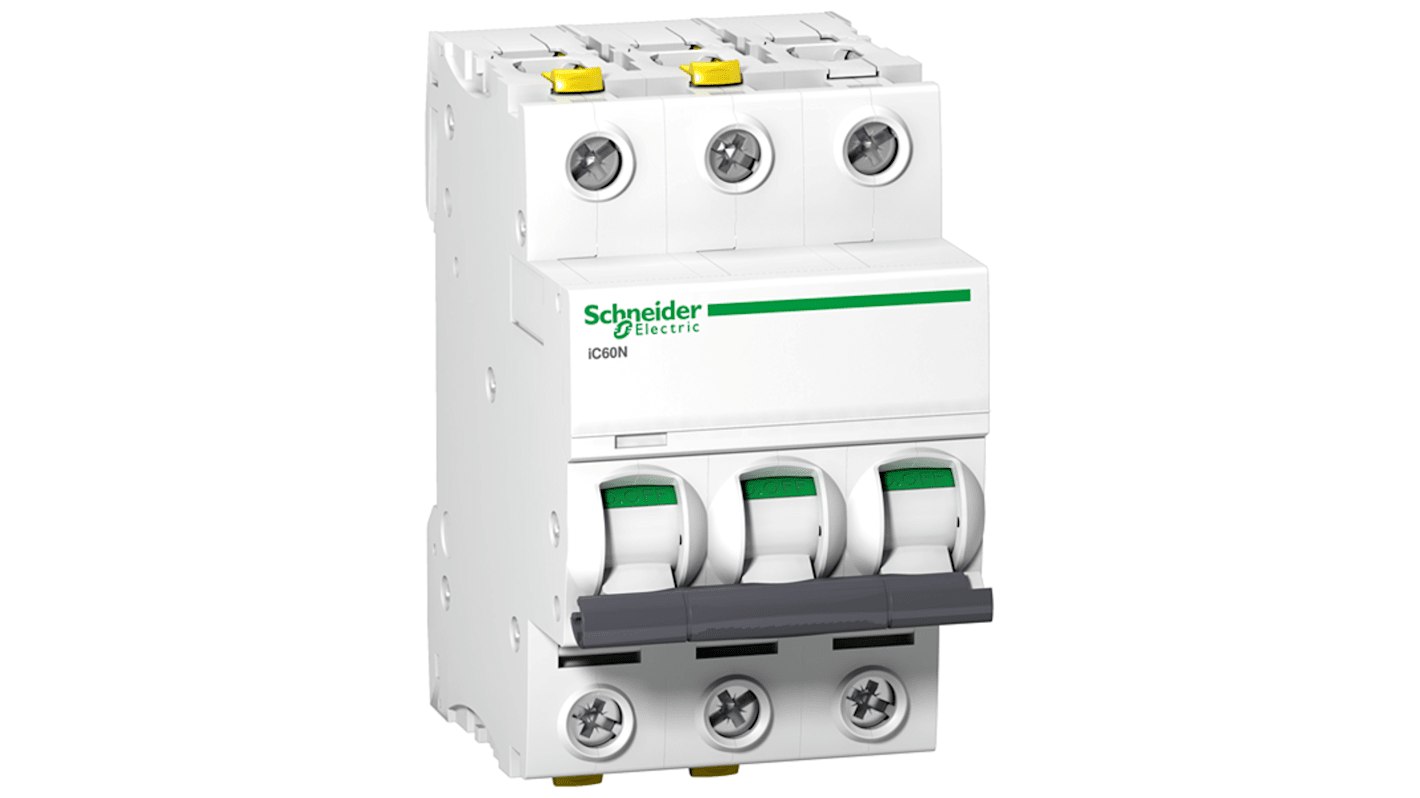

Schneider Electric Acti9 A9F0 MCB, 3P, 6A Curve B, 440V AC, 180V DC, 6 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£80.59

(exc. VAT)

£96.71

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,999 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£80.59

*price indicative

RS Stock No.:
212-169
Mfr. Part No.:
A9F03306
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Number of Poles

3

Current Rating

6A

Tripping Characteristics

Type B

Rated AC Voltage

440V

Rated DC Voltage

180V

Breaking Capacity at Maximum Voltage Rating

6 kA

Range

Acti9

Series

A9F0

COO (Country of Origin):
BG
The Schneider Electric Miniature Circuit Breaker is suitable for both DC and AC networks, offering reliable overcurrent protection with thermal-magnetic trip unit technology. It is primarily used for distribution applications and complies with international standards, including IEC 60898-1, EN 60898-1, IEC 60947-2, and EN 60947-2. The MCB features a contact position indicator for easy status monitoring and uses a toggle control type. It has a rated insulation voltage of 500 V AC at 50/60 Hz, as per EN 60947-2 standards. The device operates within an ambient temperature range of -35 to 70°C, making it suitable for a wide range of environments.

DIN rail mounting
20000 cycles of mechanical durability
IP20 rated conforming to IEC 60529
